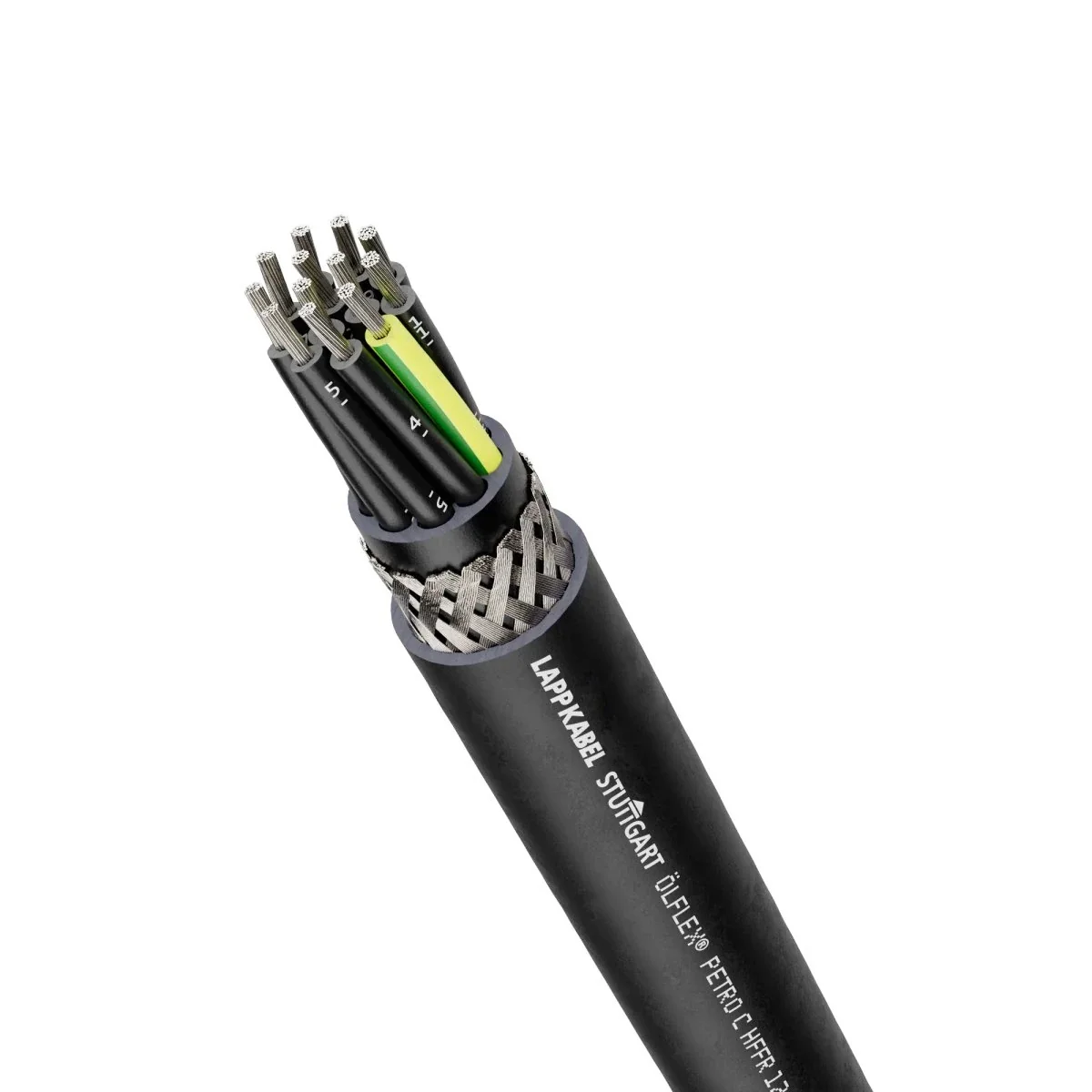

ÖLFLEX PETRO C HFFR 5G16 BK; Cable 0023269
Indice locale:
KSA0T4LAPP
Numero di catalogo:
0023269
Codice EAN:
4044774761176
Produttore:
LAPP KABEL
Spedizione su pallet
Prezzo:
814,24 zł
gross / metro
(inclusa IVA 23%)
Su ordinazione
Aggiungi alla richiesta di preventivo
Stampa
Chiedi informazioni sul prodotto
Dati tecnici
Altri dati tecnici
-
Conductor materialCopper
-
Nominal cross section conductor16 mm²
-
Number of cores5
-
Screen over stranding elementNone
-
Material core insulationPolyolefin
-
Core identification according to HD 308 S2Yes
-
ScreenYes
-
Material outer sheathPolyurethane (PUR)
-
Colour outer sheathBlack
-
Flame retardant according to IEC 60332-1-2Yes
-
Flame retardant according to IEC 60332-3-22 (Cat A)Yes
-
Flame retardant according to IEC 60332-3-24 (Cat C)No
-
Low smoke according to EN IEC 61034-2No
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Outer diameter approx.27.6 mm
-
Min. permitted bending radius, stationary application/permanent installation165.6 mm
-
Nominal voltage U00.6 kV
-
Weight1483 kg/km
-
Conductor surfaceTinned
-
Conductor categoryClass 5 = flexible
-
Stranding elementOther
-
Screen over strandingBraiding
-
Specification core insulationOther
-
Core identificationColour
-
With protective conductorYes
-
Specification material outer sheathOther
-
Cable geometryRound
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
-
Flame retardant according to IEC 60332-3-23 (Cat B)Yes
-
Flame retardant according to IEC 60332-3-25 (Cat D)No
-
Halogen free according to EN IEC 60754-1No
-
Reaction-to-fire according to EN 13501-6: ClassNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application/free movement552 mm
-
Permitted cable outer temperature after assembling without vibration-50 ... 90 °C
-
Nominal voltage U1 kV
