Ölflex Classic 110 7G0, 75 control cable 1119107
Lokaler Index:
KSA031LAPP
Katalognummer:
1119107
EAN-Code:
4044773067958
6
32
zł
gross / lfm.
(inklusive MwSt 23%)
Verfügbarkeit
Dostępne 1 616 lfm.
Überprüfen
Odbiór!
Odbierz w godzinę!
Einzelheiten
Dostępność w oddziale
Wählen Sie Ihren Großhändler
Wählen Sie
Menge lfm.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung

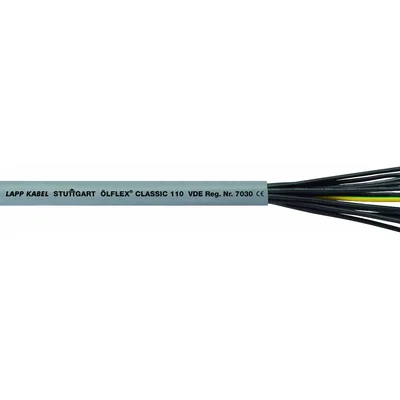

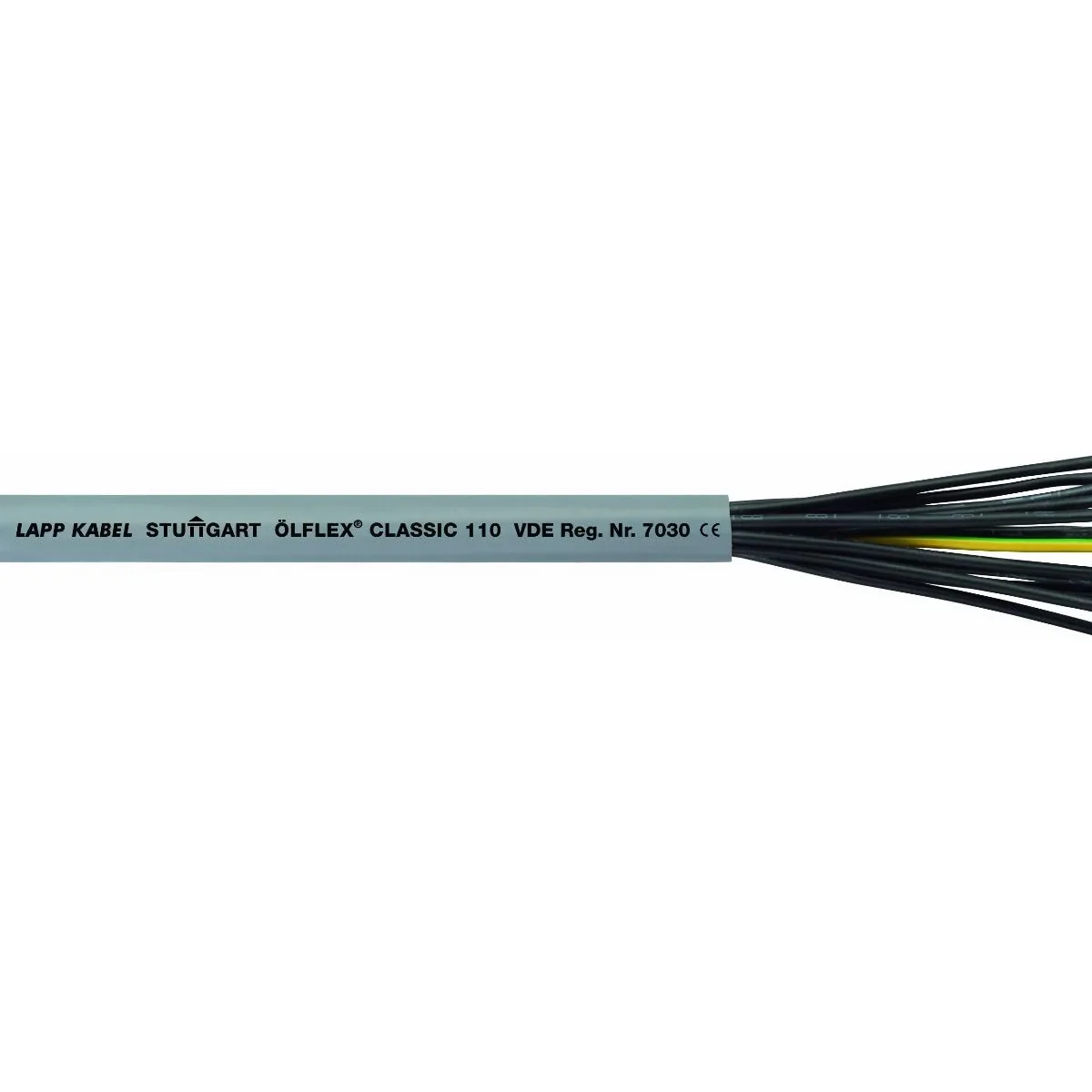

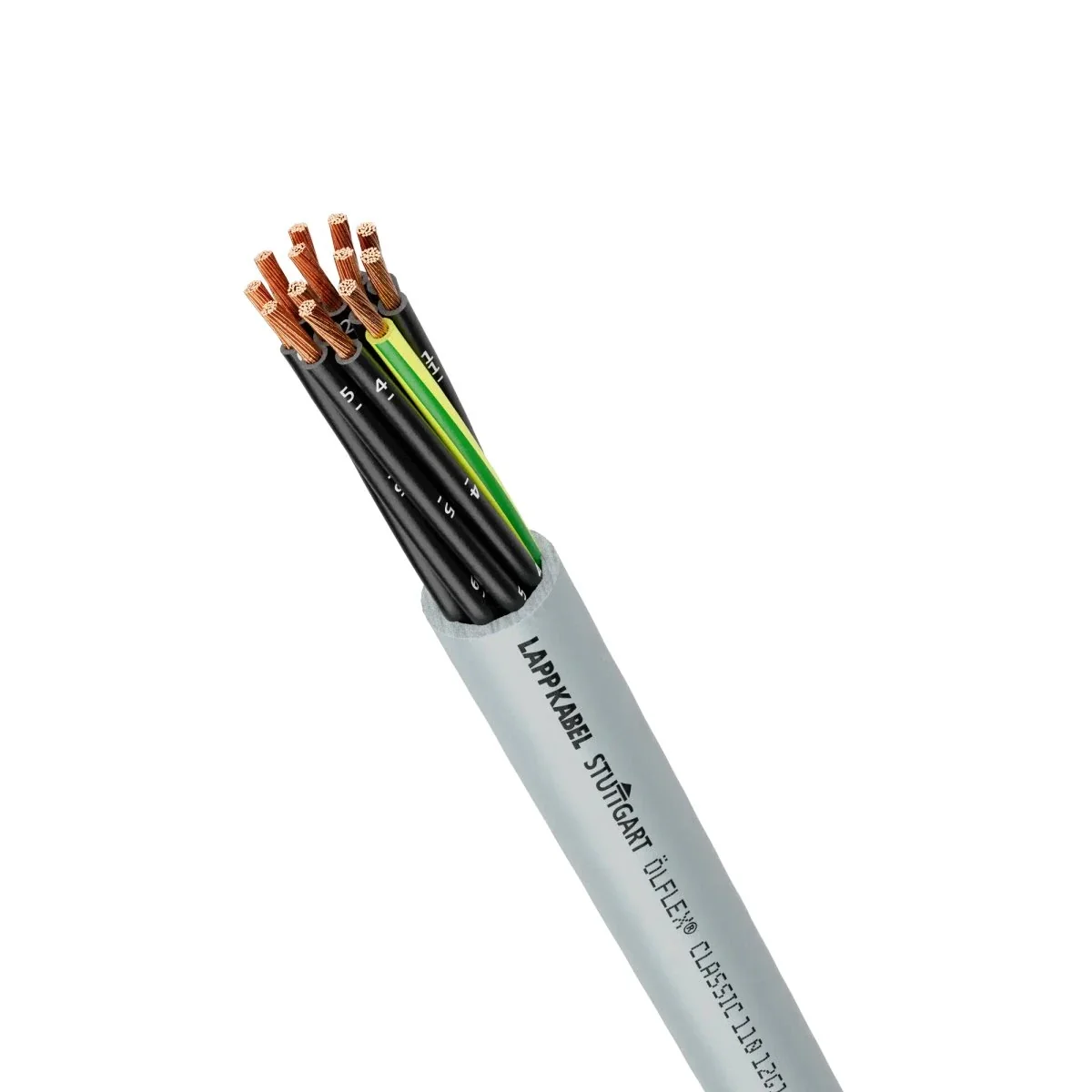

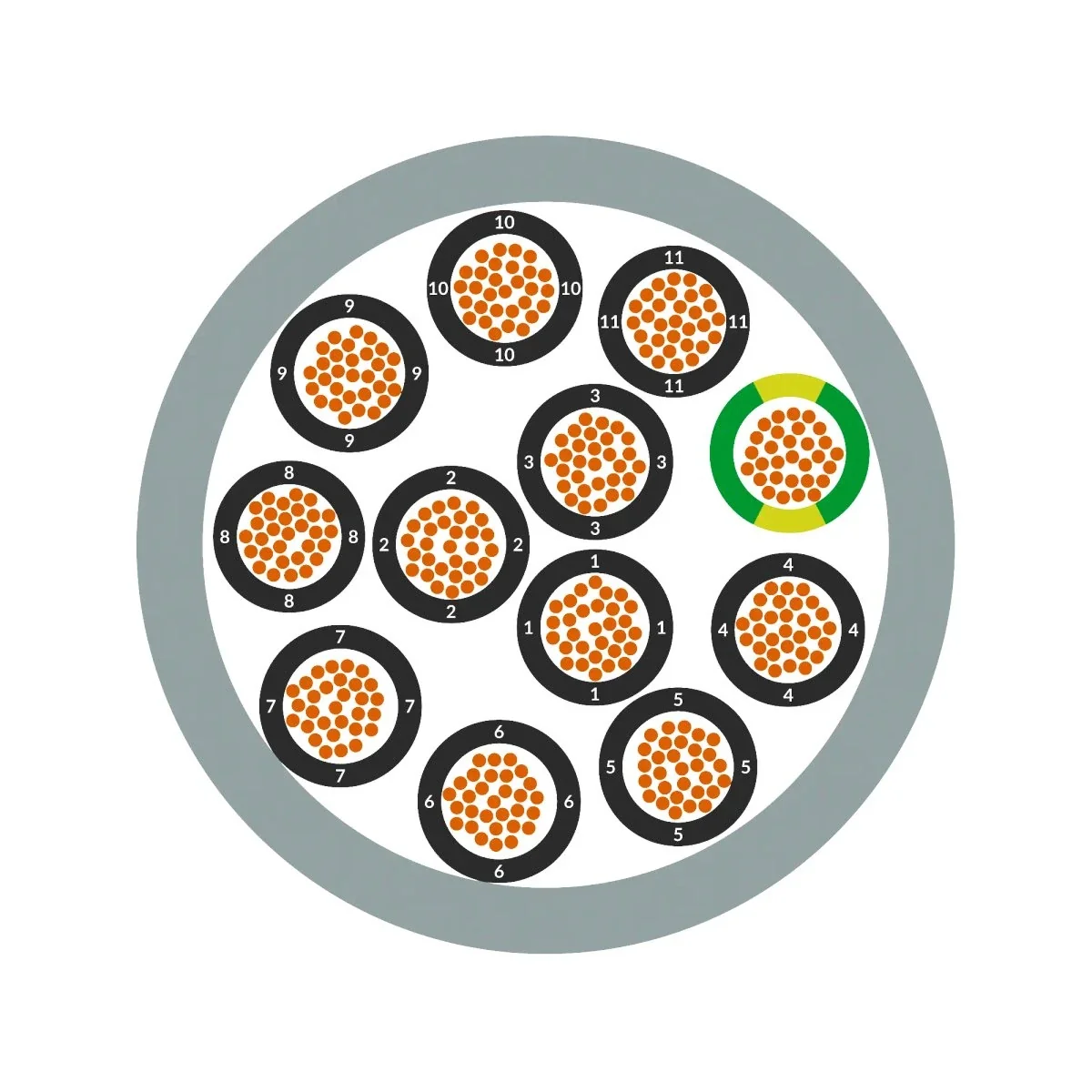

Control cable ÖLFLEX CLASSIC 110 7G0, 75 with numbered, soft, stranded conductors made of electrolytic copper, PVC insulation and sheath. Cores twisted in layers.
Power supply for all electrical devices operating in dry and damp rooms. They can work outdoors only with additional protection against UV radiation. Used especially as flexible control and control cables in machine tools, mechanical devices, power plants, air-conditioning technology, etc.
Technische Daten
-
Number of veins7
-
Vein materialCopper
-
Core cross-section [mm²]0.75
-
Accurate colorRAL 7001
-
ColorGray
-
Rated voltage [V]300/500
-
CoreCord
-
Insulation materialPVC
Weitere technische Daten
-
Conductor materialCopper
-
Nominal cross section conductor0.75 mm²
-
Number of cores7
-
Stranding elementOther
-
Material core insulationPolyvinyl chloride (PVC)
-
Core identification according to HD 308 S2No
-
With protective conductorYes
-
Specification material outer sheathOther
-
ScreenNo
-
Flame retardant according to IEC 60332-1-2Yes
-
Flame retardant according to IEC 60332-3-22 (Cat A)No
-
Flame retardant according to IEC 60332-3-24 (Cat C)No
-
Low smoke according to EN IEC 61034-2No
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Outer diameter approx.7.3 mm
-
Min. permitted bending radius, moving application/free movement73 mm
-
Permitted cable outer temperature during assembling/handling-15 ... 70 °C
-
Nominal voltage U0300 V
-
Weight98 kg/km
-
Conductor surfaceBare
-
Conductor categoryClass 5 = flexible
-
Screen over stranding elementNone
-
Screen over strandingNone
-
Specification core insulationOther
-
Core identificationNumbers
-
Material outer sheathPolyvinyl chloride (PVC)
-
Colour outer sheathGrey
-
Cable geometryRound
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
-
Flame retardant according to IEC 60332-3-23 (Cat B)No
-
Flame retardant according to IEC 60332-3-25 (Cat D)No
-
Halogen free according to EN IEC 60754-1No
-
Reaction-to-fire according to EN 13501-6: ClassEca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application with forced guidance109.5 mm
-
Min. permitted bending radius, stationary application/permanent installation29.2 mm
-
Permitted cable outer temperature after assembling without vibration-40 ... 80 °C
-
Nominal voltage U500 V
Dane CPR (Construction Products Regulation)
-
Numer notyfikowanego laboratorium badawczego CE:0366
-
Wydzielane substancje niebezpieczne:NPD
-
Numer referencyjny DoP (DWU)UILCPRDoP17_00100004-1_A
-
Oznaczenie produktuÖLFLEX CLASSIC 110 7G0,75
-
Reakcja na ogień:Eca
-
Zharmonizowana specyfikacja techniczna (norma):EN 50575:2014 + A1:2016
Hersteller-Details
-
HerstellerLapp Kabel Sp. z o.o.
-
Adresse55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
-
Steueridentifikationsnummer8971621588
