el12 Cables and wires Signaling and low current cables Signaling and low-current cables for 0.6/1kV voltage

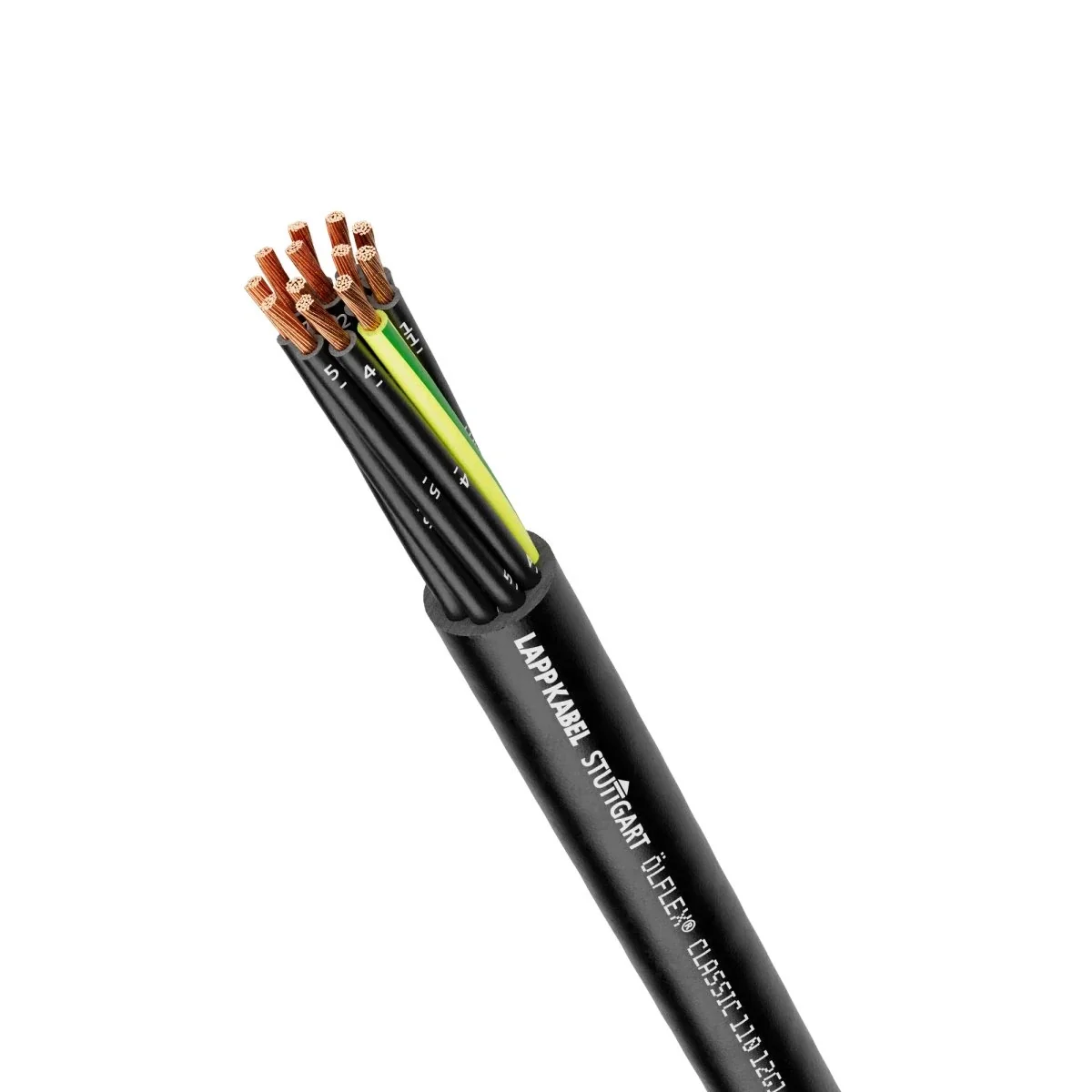

ÖLFLEX CLASSIC 110 5X1 BK; Cable 1119897

local index:
KSA982LAPP
Catalog number:
1119897
EAN code:
4044777287772
ÖLFLEX CLASSIC 110 5X1 BK; Cable
ÖLFLEX CLASSIC 110 5X1 BK; Cable
ÖLFLEX CLASSIC 110 5X1 BK; Cable
ÖLFLEX CLASSIC 110 5X1 BK; Cable

Click on the photo to enlarge

Manufacturer: LAPP KABEL
Price:
28,75 zł
gross / m.
(including VAT 23%)
Out of stock
On request
Add to inquiry
Print
Technical data Manufacturer details Files to download

Technical data

Other technical data

  • Conductor material
    Copper
  • Nominal cross section conductor
    1 mm²
  • Number of cores
    5
  • Stranding element
    Other
  • Material core insulation
    Polyvinyl chloride (PVC)
  • Core identification according to HD 308 S2
    No
  • With protective conductor
    No
  • Specification material outer sheath
    Other
  • Screen
    No
  • Flame retardant according to IEC 60332-1-2
    Yes
  • Flame retardant according to IEC 60332-3-22 (Cat A)
    No
  • Flame retardant according to IEC 60332-3-24 (Cat C)
    No
  • Low smoke according to EN IEC 61034-2
    No
  • Halogen free according to EN IEC 60754-2
    No
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Outer diameter approx.
    7.1 mm
  • Min. permitted bending radius, moving application/free movement
    71 mm
  • Permitted cable outer temperature during assembling/handling
    -15 ... 70 °C
  • Nominal voltage U0
    300 V
  • Weight
    94 kg/km
  • Conductor surface
    Bare
  • Conductor category
    Class 5 = flexible
  • Screen over stranding element
    None
  • Screen over stranding
    None
  • Specification core insulation
    Other
  • Core identification
    Numbers
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    Black
  • Cable geometry
    Round
  • Flame retardant according to IEC 60332-3-21 (Cat A F/R)
    No
  • Flame retardant according to IEC 60332-3-23 (Cat B)
    No
  • Flame retardant according to IEC 60332-3-25 (Cat D)
    No
  • Halogen free according to EN IEC 60754-1
    No
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Oil resistant according to EN IEC 60811-404
    No
  • Min. permitted bending radius, moving application with forced guidance
    106.5 mm
  • Min. permitted bending radius, stationary application/permanent installation
    28.4 mm
  • Permitted cable outer temperature after assembling without vibration
    -40 ... 80 °C
  • Nominal voltage U
    500 V

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    0366
  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    UILCPRDoP17_00100004-1_A
  • Oznaczenie produktu
    ÖLFLEX CLASSIC 110 5X1 BK
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014 + A1:2016

Manufacturer details

  • Manufacturer
    Lapp Kabel Sp. z o.o.
  • Address
    55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
  • Tax identification number
    8971621588
