Olflex Classic 110 12G1 cable 1119212
Indice locale:
KSA223LAPP
Numero di catalogo:
1119212
Codice EAN:
4044773066432
Prezzo:
13,43 zł
gross / metro
(inclusa IVA 23%)
Raccolta in 1h
Quantità metro
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa
Chiedi informazioni sul prodotto
Descrizione del prodotto

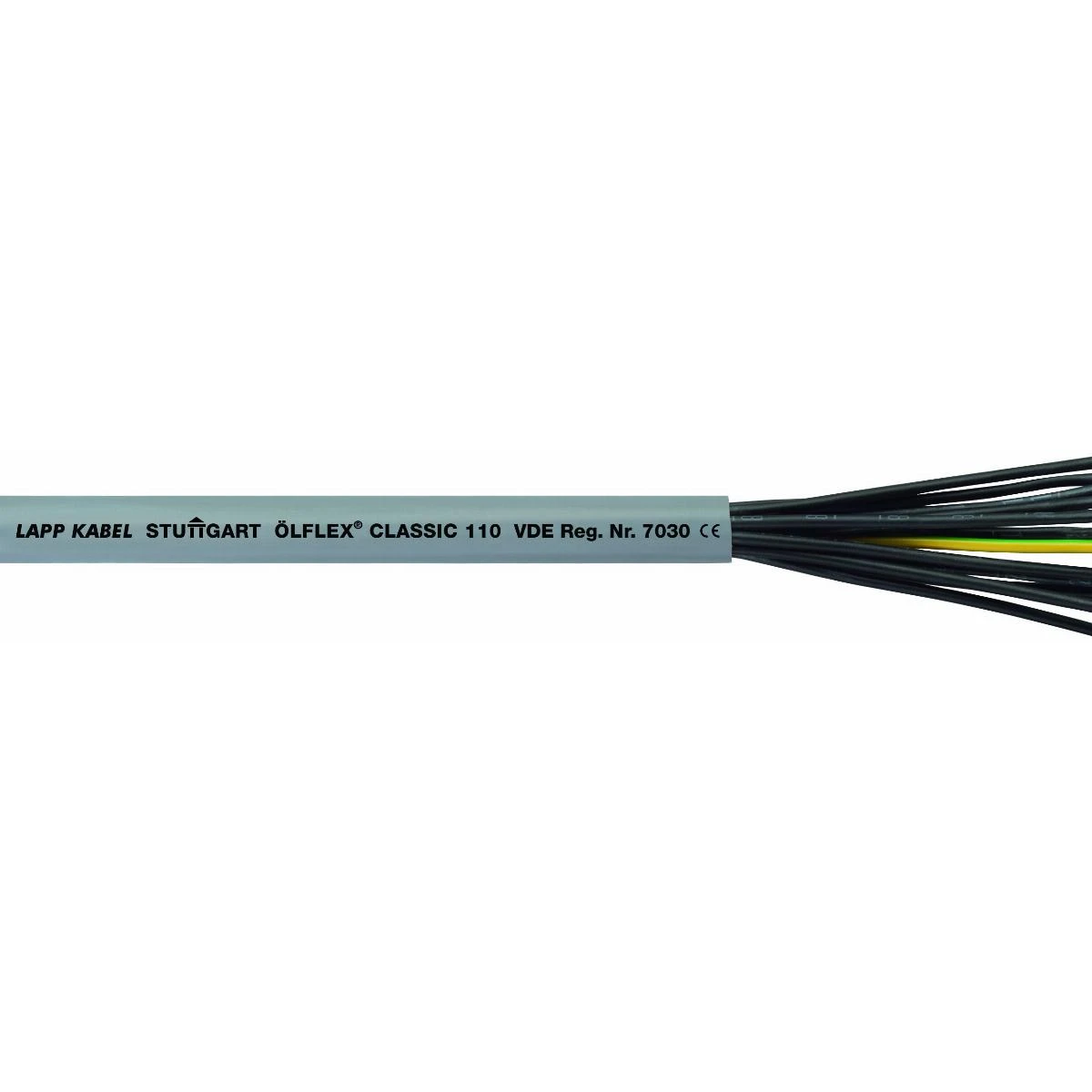

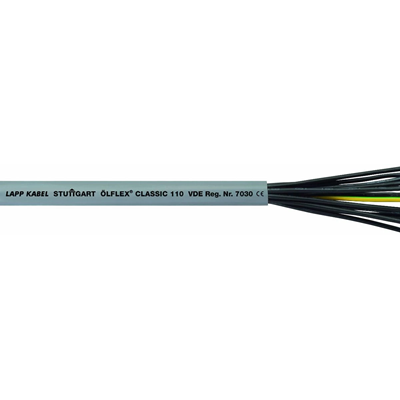

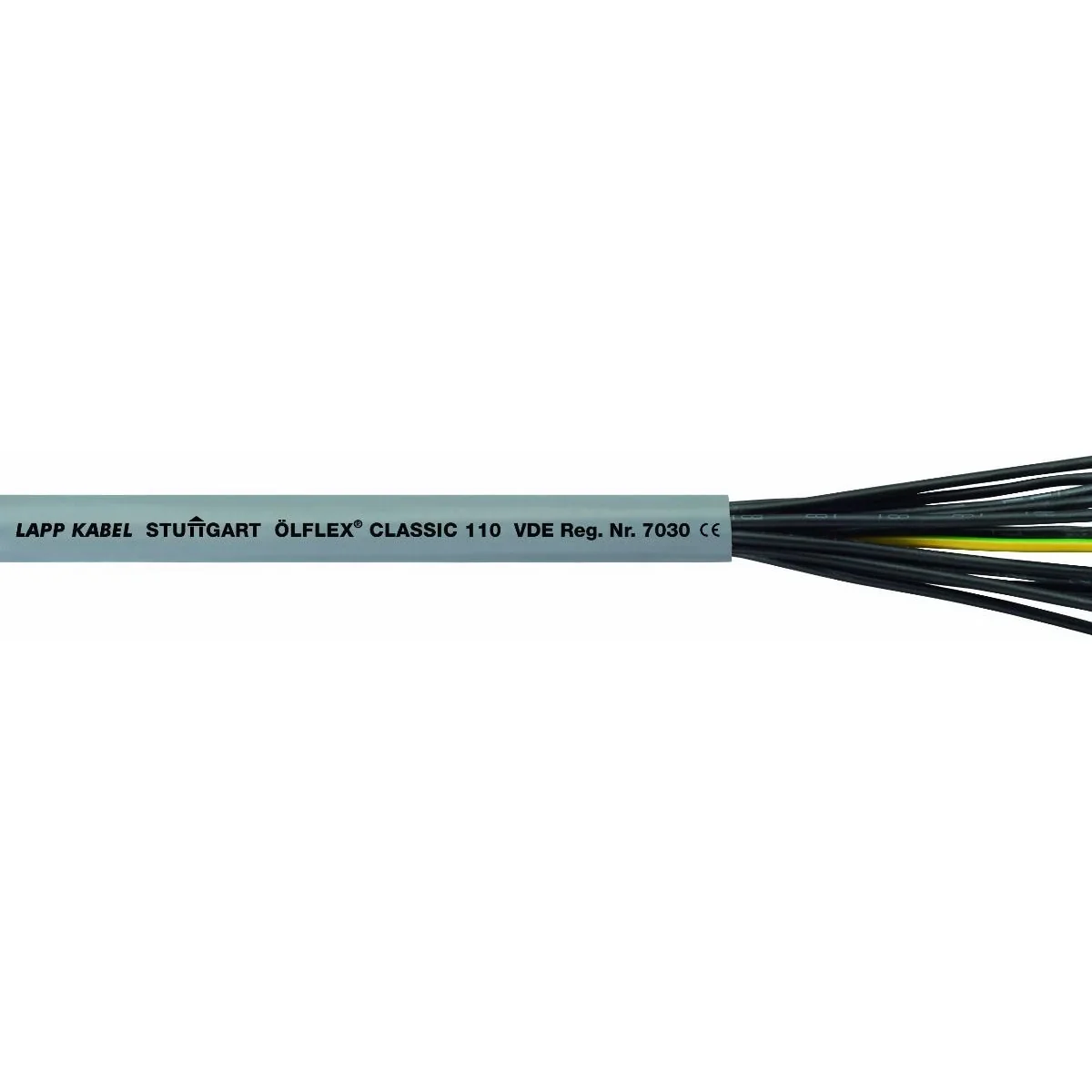

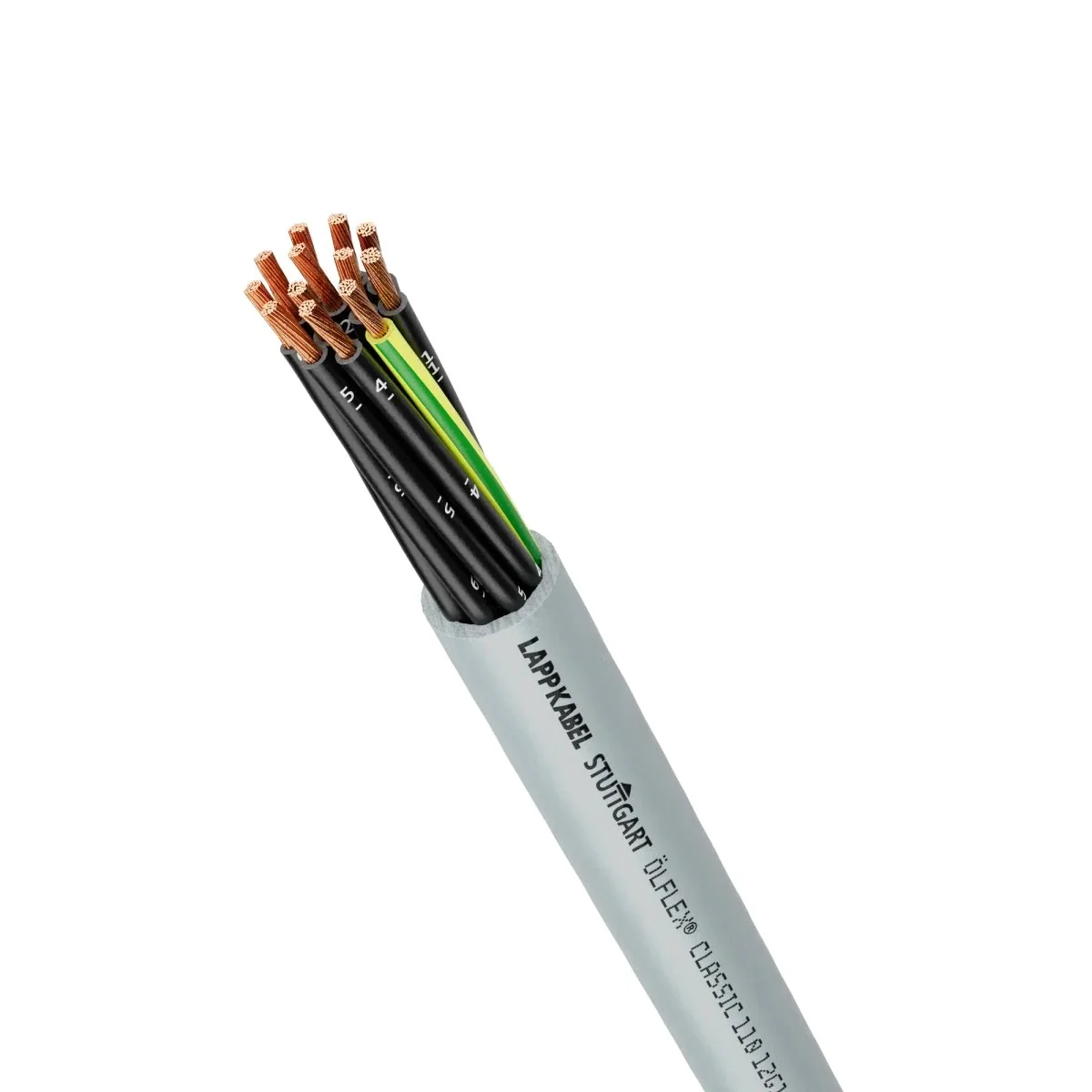

Olflex Classic 110 12G1 cable
Dati tecnici
-
Number of veins12
-
Vein materialCopper
-
Core cross-section [mm²]1
-
Accurate colorRAL 7001
-
ColorGray
-
Rated voltage [V]300/500
-
CoreCord
-
Insulation materialPVC
Altri dati tecnici
-
Conductor materialCopper
-
Nominal cross section conductor1 mm²
-
Number of cores12
-
Stranding elementOther
-
Material core insulationPolyvinyl chloride (PVC)
-
Core identification according to HD 308 S2No
-
With protective conductorYes
-
Specification material outer sheathOther
-
ScreenNo
-
Flame retardant according to IEC 60332-1-2Yes
-
Flame retardant according to IEC 60332-3-22 (Cat A)No
-
Flame retardant according to IEC 60332-3-24 (Cat C)No
-
Low smoke according to EN IEC 61034-2No
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Outer diameter approx.10.5 mm
-
Min. permitted bending radius, stationary application/permanent installation42 mm
-
Permitted cable outer temperature after assembling without vibration-40 ... 80 °C
-
Nominal voltage U500 V
-
Conductor surfaceBare
-
Conductor categoryClass 5 = flexible
-
Screen over stranding elementNone
-
Screen over strandingNone
-
Specification core insulationOther
-
Core identificationNumbers
-
Material outer sheathPolyvinyl chloride (PVC)
-
Colour outer sheathGrey
-
Cable geometryRound
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
-
Flame retardant according to IEC 60332-3-23 (Cat B)No
-
Flame retardant according to IEC 60332-3-25 (Cat D)No
-
Halogen free according to EN IEC 60754-1No
-
Reaction-to-fire according to EN 13501-6: ClassEca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application/free movement105 mm
-
Permitted cable outer temperature during assembling/handling-15 ... 70 °C
-
Nominal voltage U0300 V
-
Weight205 kg/km
Dane CPR (Construction Products Regulation)
-
Numer notyfikowanego laboratorium badawczego CE:0366
-
Wydzielane substancje niebezpieczne:NPD
-
Numer referencyjny DoP (DWU)UILCPRDoP17_00100004-1_A
-
Oznaczenie produktuÖLFLEX CLASSIC 110 12G1
-
Reakcja na ogień:Eca
-
Zharmonizowana specyfikacja techniczna (norma):EN 50575:2014 + A1:2016
Dettagli del produttore
-
ProduttoreLapp Kabel Sp. z o.o.
-
Indirizzo55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
-
NIP8971621588
