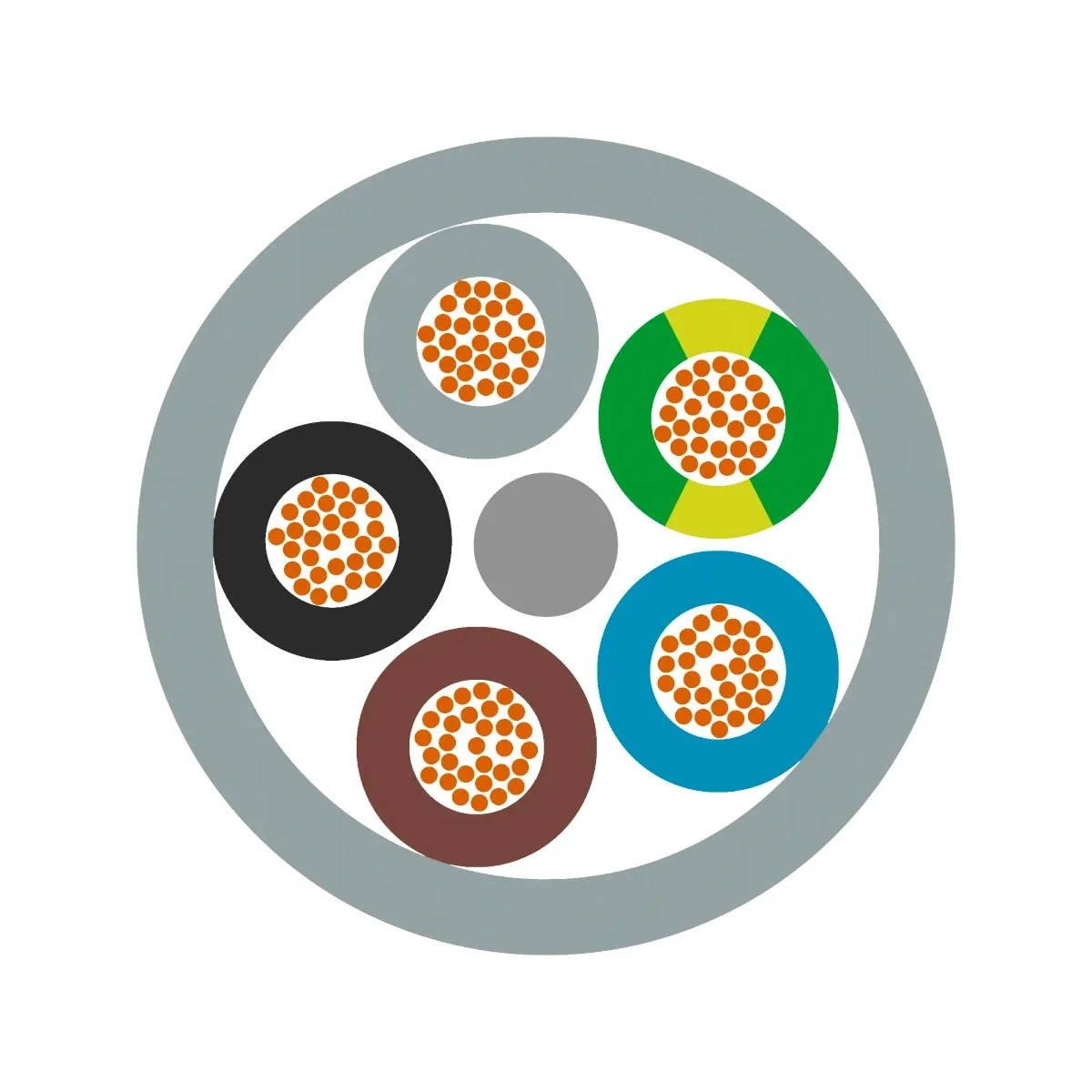

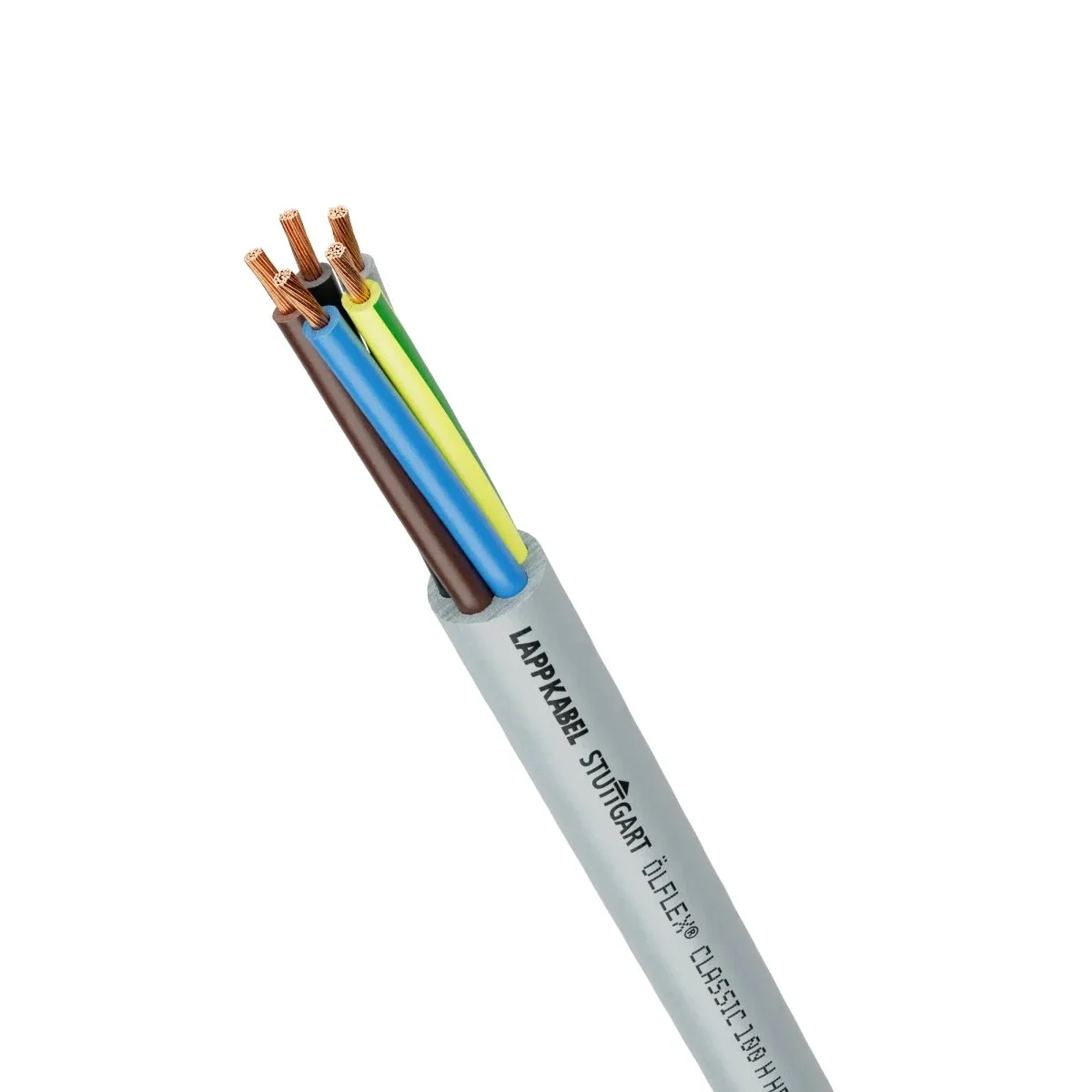

ÖLFLEX CLASSIC 100 H 5G2.5; Cable 0014159
Indice locale:
KSA019LAPP
Numero di catalogo:
0014159
Codice EAN:
4044774886398
Produttore:
LAPP KABEL
Prezzo:
114,59 zł
gross / metro
(inclusa IVA 23%)
Su ordinazione
Aggiungi alla richiesta di preventivo
Stampa
Chiedi informazioni sul prodotto
Dati tecnici
Altri dati tecnici
-
Conductor materialCopper
-
Nominal cross section conductor2.5 mm²
-
Number of cores5
-
Stranding elementOther
-
Material core insulationOther
-
Core identification according to HD 308 S2Yes
-
With protective conductorYes
-
Specification material outer sheathOther
-
ScreenNo
-
Flame retardant according to IEC 60332-1-2Yes
-
Flame retardant according to IEC 60332-3-22 (Cat A)No
-
Flame retardant according to IEC 60332-3-24 (Cat C)No
-
Low smoke according to EN IEC 61034-2Yes
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productions2
-
Reaction-to-fire according to EN 13501-6: Aciditya1
-
Outer diameter approx.11.9 mm
-
Min. permitted bending radius, stationary application/permanent installation47.6 mm
-
Permitted cable outer temperature after assembling without vibration-40 ... 80 °C
-
Nominal voltage U750 V
-
Conductor surfaceBare
-
Conductor categoryClass 5 = flexible
-
Screen over stranding elementNone
-
Screen over strandingNone
-
Specification core insulationOther
-
Core identificationColour
-
Material outer sheathOther
-
Colour outer sheathGrey
-
Cable geometryRound
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
-
Flame retardant according to IEC 60332-3-23 (Cat B)No
-
Flame retardant according to IEC 60332-3-25 (Cat D)Yes
-
Halogen free according to EN IEC 60754-1Yes
-
Reaction-to-fire according to EN 13501-6: ClassCca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application/free movement178.5 mm
-
Permitted cable outer temperature during assembling/handling-30 ... 70 °C
-
Nominal voltage U0450 V
-
Weight260 kg/km
Dane CPR (Construction Products Regulation)
-
Numer notyfikowanego laboratorium badawczego CE:0366
-
Wydzielane substancje niebezpieczne:NPD
-
Numer referencyjny DoP (DWU)UILCPRDoP17_0014150-1_A
-
Oznaczenie produktuÖLFLEX CLASSIC 100 H 5G2,5
-
Reakcja na ogień:Cca-s2-d2-a1
-
Zharmonizowana specyfikacja techniczna (norma):EN 50575:2014 + A1:2016
