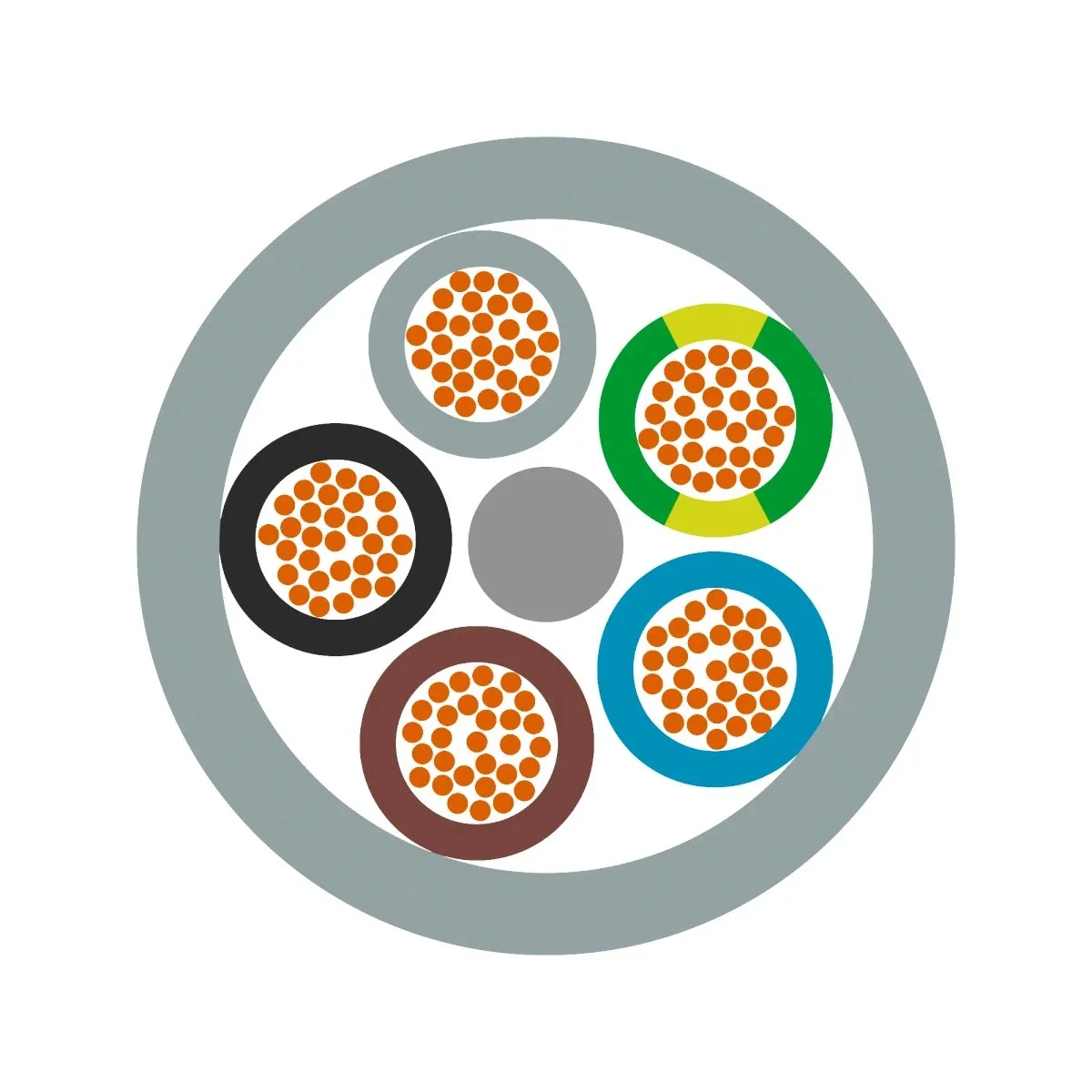

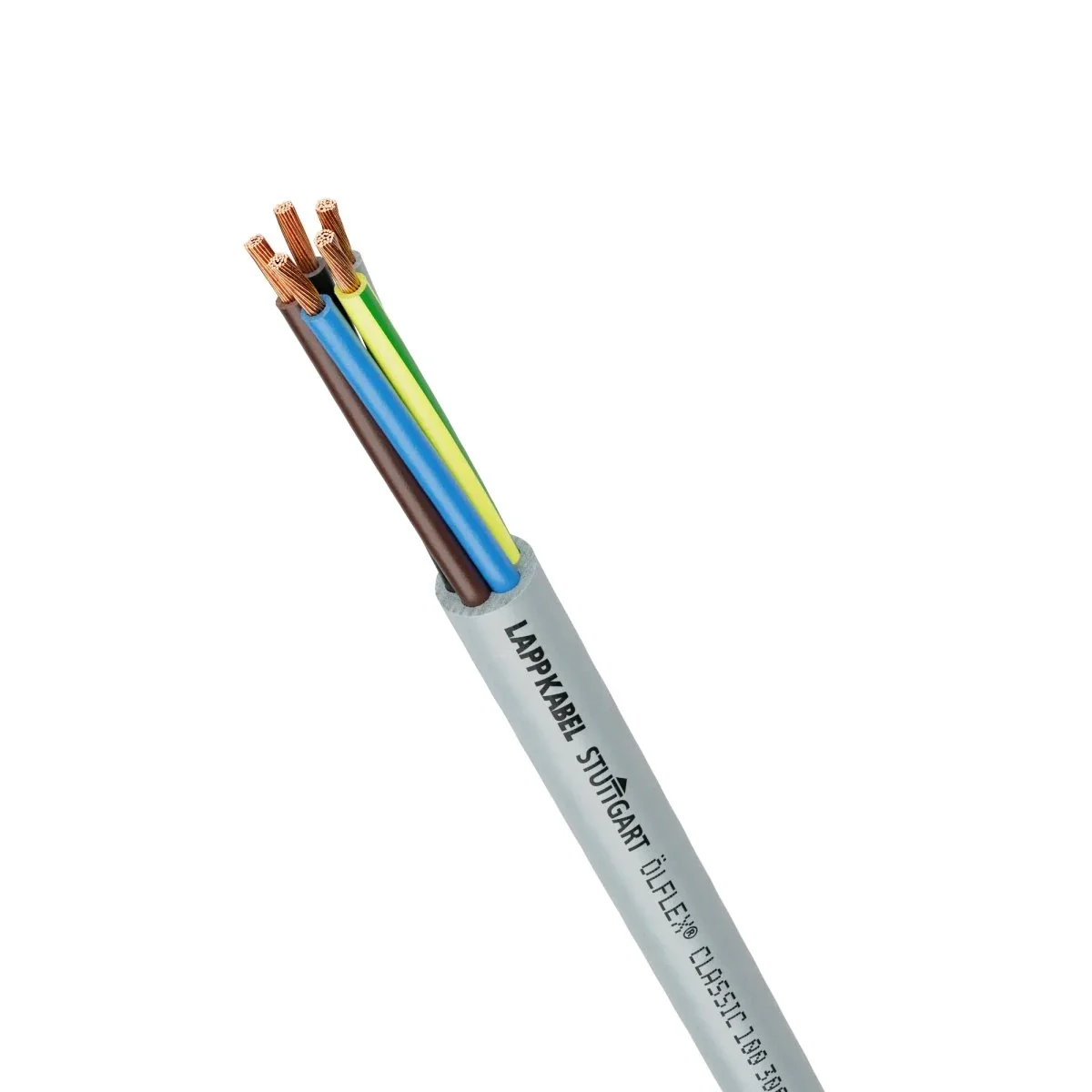

ÖLFLEX CLASSIC 100 300/500V 5G6; Cable 1120812
Indeks lokalny:
KLA025LAPP
Numer katalogowy:
1120812
Kod EAN:
4044777300822
Producent:
LAPP KABEL
Cena:
148,93 zł
gross / mb.
(w tym VAT 23%)
Na zamówienie
Dodaj do zapytania ofertowego
Drukuj
Zapytaj o produkt
Dane techniczne
Pozostałe dane techniczne
-
Conductor materialCopper
-
Nominal cross section conductor6 mm²
-
Number of cores5
-
Stranding elementOther
-
Material core insulationPolyvinyl chloride (PVC)
-
Core identification according to HD 308 S2Yes
-
With protective conductorYes
-
Specification material outer sheathOther
-
ScreenNo
-
Flame retardant according to IEC 60332-1-2Yes
-
Flame retardant according to IEC 60332-3-22 (Cat A)No
-
Flame retardant according to IEC 60332-3-24 (Cat C)No
-
Low smoke according to EN IEC 61034-2No
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Outer diameter approx.14.5 mm
-
Min. permitted bending radius, stationary application/permanent installation58 mm
-
Permitted cable outer temperature after assembling without vibration-40 ... 80 °C
-
Nominal voltage U500 V
-
Conductor surfaceBare
-
Conductor categoryClass 5 = flexible
-
Screen over stranding elementNone
-
Screen over strandingNone
-
Specification core insulationOther
-
Core identificationColour
-
Material outer sheathPolyvinyl chloride (PVC)
-
Colour outer sheathGrey
-
Cable geometryRound
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
-
Flame retardant according to IEC 60332-3-23 (Cat B)No
-
Flame retardant according to IEC 60332-3-25 (Cat D)No
-
Halogen free according to EN IEC 60754-1No
-
Reaction-to-fire according to EN 13501-6: ClassEca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application/free movement217.5 mm
-
Permitted cable outer temperature during assembling/handling-5 ... 70 °C
-
Nominal voltage U0300 V
-
Weight470 kg/km
