el12 Cables and wires Specialty cables and others

ÖLFLEX 540 P 2X1; Cable 0012457

local index:
KUU371LAPP
Catalog number:
0012457
EAN code:
4044773003833

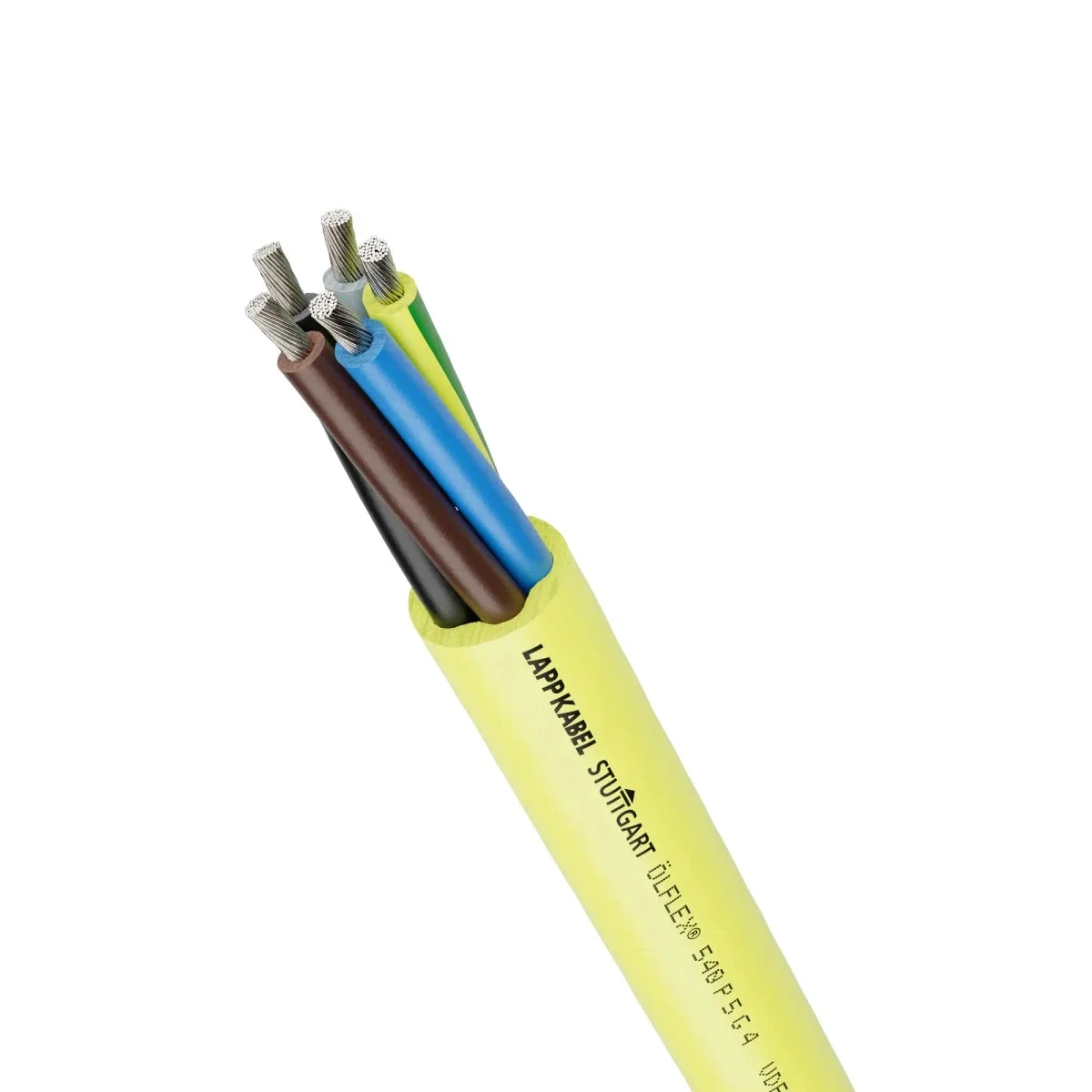

ÖLFLEX 540 P 2X1; Cable
ÖLFLEX 540 P 2X1; Cable
ÖLFLEX 540 P 2X1; Cable
ÖLFLEX 540 P 2X1; Cable

Click on the photo to enlarge

Manufacturer: LAPP KABEL
Price:
46,11 zł
gross / m.
(including VAT 23%)
Out of stock
On request
Add to inquiry
Print
Technical data Manufacturer details Files to download

Technical data

Other technical data

  • Conductor material
    Copper
  • Nominal cross section conductor
    1 mm²
  • Number of cores
    2
  • Stranding element
    Other
  • Material core insulation
    Other
  • Core identification according to HD 308 S2
    Yes
  • With protective conductor
    No
  • Specification material outer sheath
    Other
  • Screen
    No
  • Flame retardant according to IEC 60332-1-2
    Yes
  • Flame retardant according to IEC 60332-3-22 (Cat A)
    No
  • Flame retardant according to IEC 60332-3-24 (Cat C)
    No
  • Low smoke according to EN IEC 61034-2
    No
  • Halogen free according to EN IEC 60754-2
    No
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Outer diameter approx.
    6.7 mm
  • Min. permitted bending radius, stationary application/permanent installation
    26.8 mm
  • Permitted cable outer temperature after assembling without vibration
    -50 ... 90 °C
  • Nominal voltage U
    500 V
  • Conductor surface
    Tinned
  • Conductor category
    Class 5 = flexible
  • Screen over stranding element
    None
  • Screen over stranding
    None
  • Specification core insulation
    Other
  • Core identification
    Colour
  • Material outer sheath
    Polyurethane (PUR)
  • Colour outer sheath
    Yellow
  • Cable geometry
    Round
  • Flame retardant according to IEC 60332-3-21 (Cat A F/R)
    No
  • Flame retardant according to IEC 60332-3-23 (Cat B)
    No
  • Flame retardant according to IEC 60332-3-25 (Cat D)
    No
  • Halogen free according to EN IEC 60754-1
    No
  • Reaction-to-fire according to EN 13501-6: Class
    None
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Oil resistant according to EN IEC 60811-404
    No
  • Min. permitted bending radius, moving application/free movement
    67 mm
  • Permitted cable outer temperature during assembling/handling
    -40 ... 90 °C
  • Nominal voltage U0
    300 V
  • Weight
    53 kg/km

Manufacturer details

  • Manufacturer
    Lapp Kabel Sp. z o.o.
  • Address
    55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
  • Tax identification number
    8971621588
