nkt instal YDYpżo 450/750 4x1.5 white Power cable, installation, multi-core with PVC insulation 172153014Q0450

Name: nkt instal YDYpżo 450/750 4x1.5 white Power cable, installation, multi-core with PVC insulation
Brand: NKT
SKU: KPP267NKTQ
Price: 2993.65 PLN
Availability: BackOrder

Indice locale:

KPP267NKTQ

Numero di catalogo:

172153014Q0450

Codice EAN:

5907802038635

nkt instal YDYpżo 450/750 4x1.5 white Power cable, installation, multi-core with PVC insulation

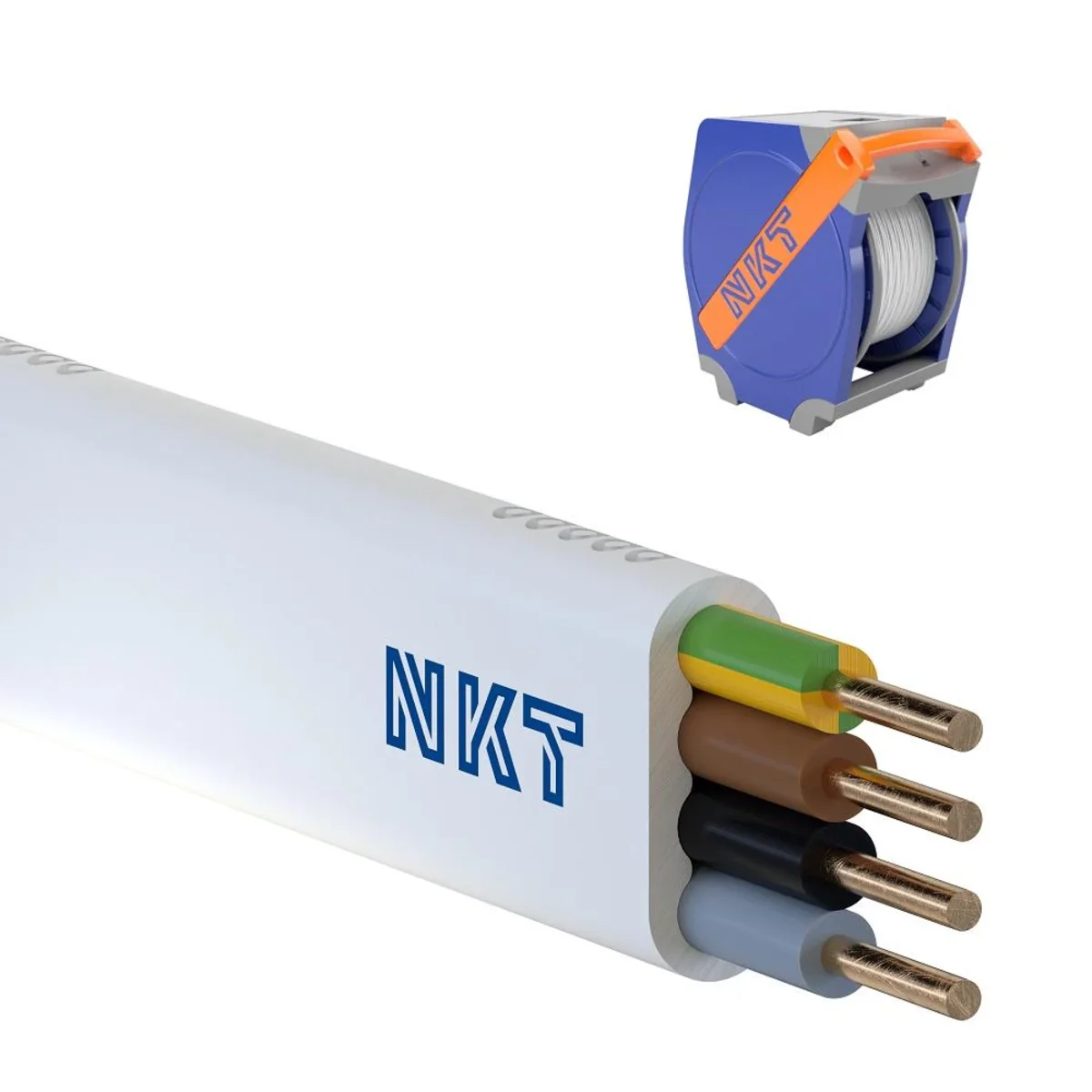

Clicca sulla foto per ingrandire

Produttore: NKT

Prodotto di grandi dimensioni

Prezzo:

2 993,65 zł

gross / conf.

(inclusa IVA 23%)

6,65 zł gross/metro

Esaurito

Su ordinazione

Aggiungi alla richiesta di preventivo

Stampa

Chiedi informazioni sul prodotto

Dati tecnici Dettagli del produttore File da scaricare

Dati tecnici

PKWIU

27.32.13.0

Altri dati tecnici

Conductor material

Copper
Nominal cross section conductor

1.5 mm²
Number of cores

4
Material core insulation

Polyvinyl chloride (PVC)
Core identification

Colour
Screen

No
Protective barrier

None
Material outer sheath

Polyvinyl chloride (PVC)
Colour outer sheath

White
Reaction-to-fire according to EN 13501-6: Smoke production

None
Reaction-to-fire according to EN 13501-6: Acidity

None
Flame retardant

According to IEC/EN 60332-1-2
Low temperature resistant according to EN 60811-504+505+506

No
Wytrzymałość (trwałość) izolacji

No
Min. permitted bending radius, stationary application/permanent installation

4 mm

Conductor surface

Bare
Conductor category

Class 1 = solid
Twisted cores

No
Specification core insulation

Other
Max. conductor temperature

+70 °C
Drain wire

No
Armouring/reinforcement

None
Specification material outer sheath

Other
Reaction-to-fire according to EN 13501-6: Class

Eca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

None
Halogen free according to EN 60754-1/2

No
Low smoke (according to EN 61034-2)

No
Oil resistant according to EN IEC 60811-404

No
Nominal voltage U0

450 V
Nominal voltage U

750 V

Dane CPR (Construction Products Regulation)

Numer notyfikowanego laboratorium badawczego CE:

NB 2652
Numer referencyjny DoP (DWU)

DOP000042_PL_Rev.1
Oznaczenie produktu

nkt instal YDYpżo 450/750 4x1,5 QADDY
Nazwa producenta:

NKT S.A., ul. Gajowa 3, 43 - 254, Warszowice

Reakcja na ogień:

Eca
Zharmonizowana specyfikacja techniczna (norma):

EN 50575:2014+A1:2016
Zastosowanie:

Do przesyłu energii elektrycznej do zastosowania w obiektach objętych uregulowaniami odnośnie reakcji wyrobów budowlanych na oddziaływanie ognia.

Dettagli del produttore

Produttore

NKT S.A.
Indirizzo

43-502 Warszowice Gajowa 3 Polska
Email

info.pl@nkt.com

File da scaricare

YDYp_450$750V+DOP+DOP000042+PL+Rev05.pdf
