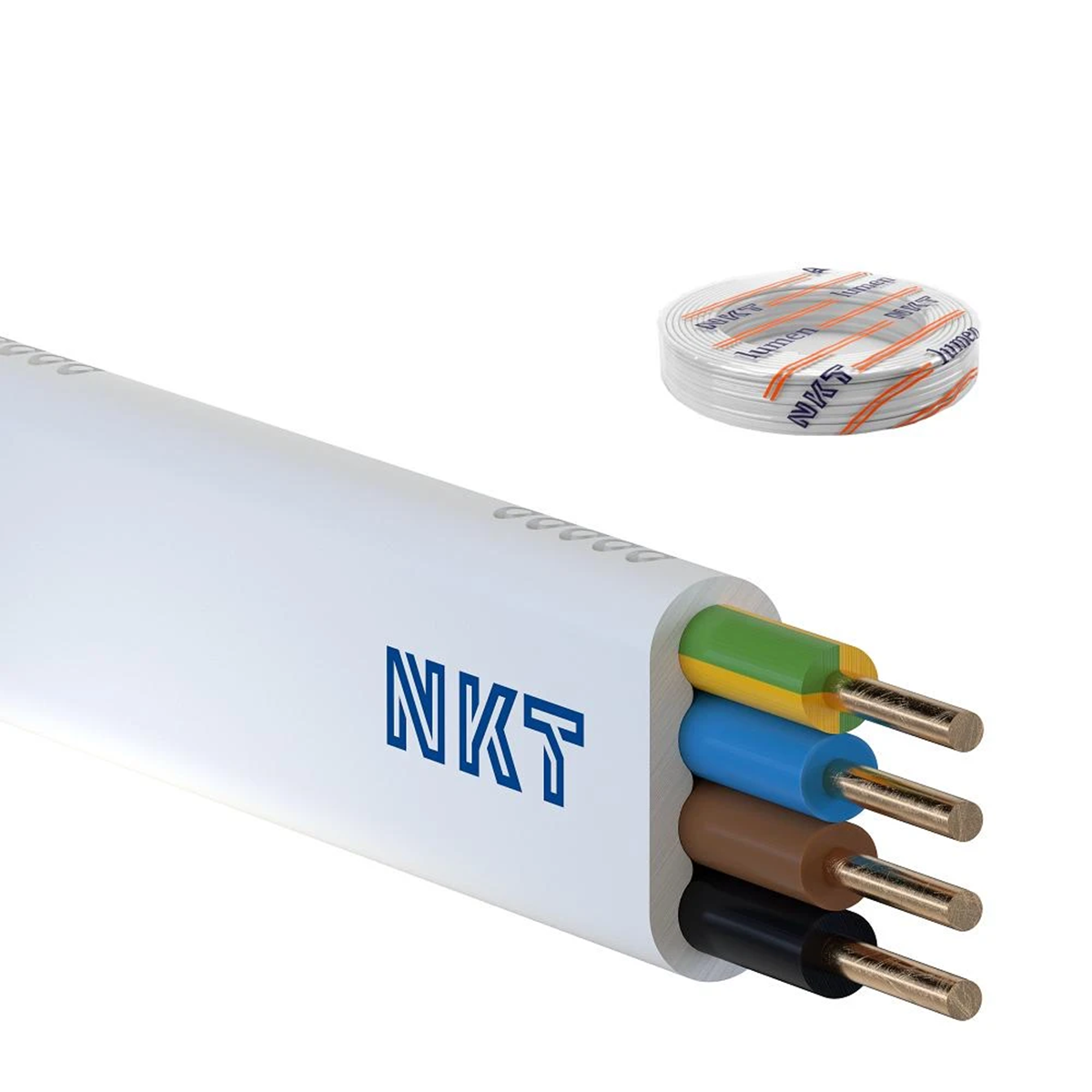

Lighting installation cable YDYp 4x1.5 450/750V 172153017C0100

Index local:
KPP266NKTQ
Numéro de catalogue:
172153017C0100
Code EAN:
5907802038703
Producteur: NKT
Number of veins: 4
Color: White
Rated voltage [V]: 450/750
Prix:
1,02 €
gross / mc.
(y compris la TVA 23%)
Livraison en 3h
Accessible 8386 mc.
Ramassage en 1h
Quantité mc.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

Installation cable for lighting YDYpżo 450/750V

  • Nominal thickness of insulation: 0.8mm2
  • Nominal thickness of outer sheath: 1.2mm< /li>
  • Outer diameter of the cable - calculated value: 5.2x13.7mm
  • Approximate weight of the cable 1km long: 133kg/km
  • Max. core resistance at 20°C: 12.1Ω/km
  • Test voltage: 450/750 V: 2.5 kV
  • UV radiation resistance: NO

Power cables intended for permanent installation inside rooms under, in and on plaster. These products may only be installed by persons with the necessary education and qualifications in the field of electrical installation work. The construction of these products is compliant with the indicated standards. During installation works, it is required to comply with applicable regulations in this regard.

Données techniques

  • Number of veins
    4
  • Rated voltage [V]
    450/750
  • PKWIU
    27.32.13.0
  • Color
    White
  • Core cross-section [mm²]
    1.5

Autres données techniques

  • Conductor material
    Copper
  • Nominal cross section conductor
    1.5 mm²
  • Number of cores
    4
  • Material core insulation
    Polyvinyl chloride (PVC)
  • Core identification
    Colour
  • Screen
    No
  • Protective barrier
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    White
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low temperature resistant according to EN 60811-504+505+506
    No
  • Wytrzymałość (trwałość) izolacji
    No
  • Min. permitted bending radius, stationary application/permanent installation
    4 mm
  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Twisted cores
    No
  • Specification core insulation
    Other
  • Max. conductor temperature
    +70 °C
  • Drain wire
    No
  • Armouring/reinforcement
    None
  • Specification material outer sheath
    Other
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Oil resistant according to EN IEC 60811-404
    No
  • Nominal voltage U0
    450 V
  • Nominal voltage U
    750 V

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    NB 2652
  • Numer referencyjny DoP (DWU)
    DOP000042_PL_Rev.1
  • Oznaczenie produktu
    nkt instal lumen YDYpżo 450/750 4x1,5
  • Nazwa producenta:
    NKT S.A., ul. Gajowa 3, 43 - 254, Warszowice
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014+A1:2016
  • Zastosowanie:
    Do przesyłu energii elektrycznej do zastosowania w obiektach objętych uregulowaniami odnośnie reakcji wyrobów budowlanych na oddziaływanie ognia.

Détails du fabricant

  • Producteur
    NKT S.A.
  • Adresse
    43-502 Warszowice Gajowa 3 Polska
