Installation cable H07V-U DY 1, 5 750V black 172105003C0100

local index:

KPD137NKTQ

Catalog No:

172105003C0100

EAN code:

5907802036006

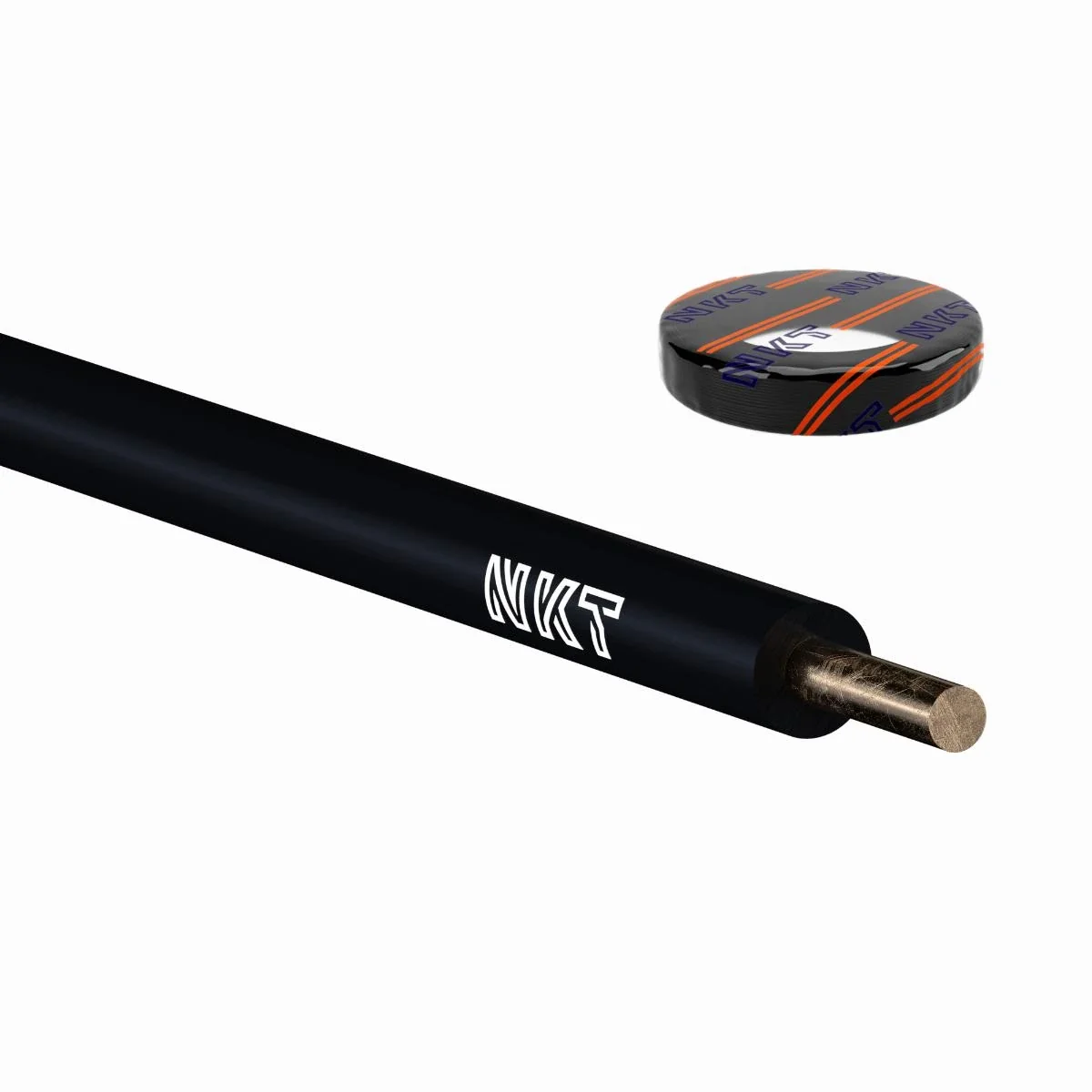

Installation cable H07V-U DY 1, 5 750V black

Installation cable H07V-U DY 1, 5 750V black

Click on the photo to enlarge

Manufacturer: NKT

Length [m]: 100

Number of veins: 1

Color: Black

See full description

Price:

25,58 €

gross / disc

(including VAT 23%)

0,26 € gross/m.

Accessible 29 disc

Quantity disc

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details

Product description

Installation cable H07V-U DY 1, 5 750V black

Technical data

Length [m]

100
Color

Black
Rated voltage [V]

450/750
Core

Wire
Accurate color

Black
PKWIU

27.32.13.0

Number of veins

1
Vein material

Copper
Core cross-section [mm²]

1.5
Working temperature [°C]

70
Insulation material

PVC

Other technical data

Conductor material

Copper
Nominal cross section conductor

1.5 mm²
Material core insulation

Polyvinyl chloride (PVC)
Core identification

Colour
Żyła ochronna

No
Drain wire

No
Armouring/reinforcement

None
Specification material outer sheath

Other
Reaction-to-fire according to EN 13501-6: Smoke production

None
Reaction-to-fire according to EN 13501-6: Acidity

None
Flame retardant

According to IEC/EN 60332-1-2
Low temperature resistant according to EN 60811-504+505+506

No
Wytrzymałość (trwałość) izolacji

No
Permitted cable outer temperature after assembling without vibration

-40 ... +70 °C
Min. permitted bending radius, stationary application/permanent installation

5 mm

Conductor surface

Bare
Conductor category

Class 1 = solid
Specification core insulation

Other
Max. conductor temperature

70 °C
Screen

No
Protective barrier

None
Material outer sheath

None
Reaction-to-fire according to EN 13501-6: Class

Eca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

None
Halogen free according to EN 60754-1/2

No
Low smoke (according to EN 61034-2)

No
Oil resistant according to EN IEC 60811-404

No
Outer diameter approx.

2.69 mm
Nominal voltage U0

450 V
Nominal voltage U

750 V

Dane CPR (Construction Products Regulation)

Wydzielane substancje niebezpieczne:

NPD
Numer referencyjny DoP (DWU)

DOP000035
Oznaczenie produktu

H07V-U 1x1,5 czarny

Reakcja na ogień:

Eca
Zharmonizowana specyfikacja techniczna (norma):

EN 50575:2014, EN50575:2014/A1:2016
Zastosowanie:

Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu

Manufacturer details

Manufacturer

NKT S.A.
Address

43-254 Warszowice ul. Gajowa 3
Tax identification number

6520005449
