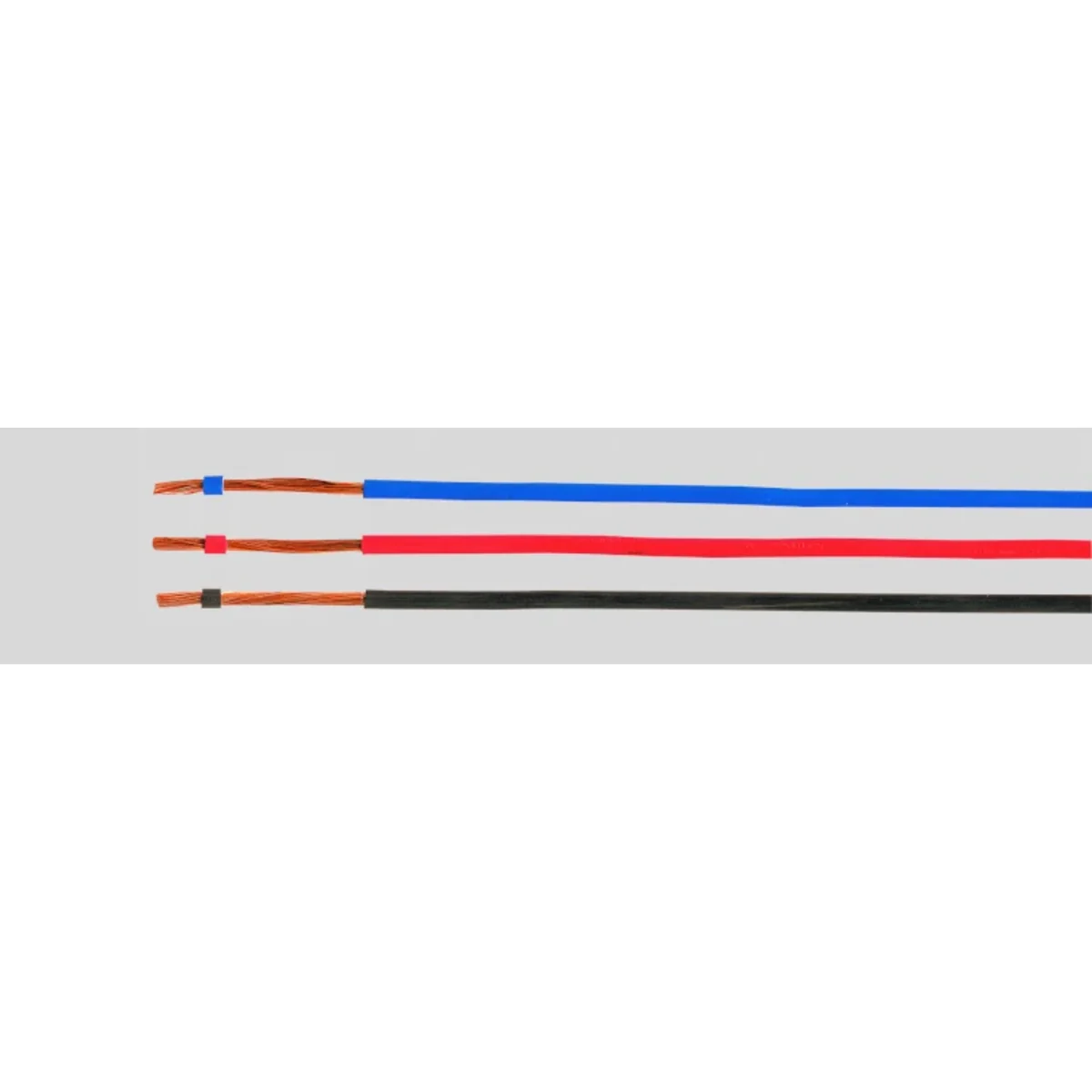

Halogen-free single-core cable 1x95 black drum 51858

Místní index:
KLC100HELU
Katalogové číslo.:
51858
EAN kód:
4060892223457
Výrobce: HELUKABEL
Number of veins: 1
Color: Black
Vein material: Copper
objemné produkt
Cena:
146,16 zł
gross / bm.
(včetně DPH 23%)
Není skladem
Na zakázku
Přidat do žádosti o cenovou nabídku
Vytisknout

Popis produktu

Halogen-free single-core cables are used wherever high protection against damage caused by fire is required. These cables can be installed on and under plaster as well as in closed cable ducts. When used in rail transport, the permissible DC voltage level relative to earth is 900V. These wires are also used as wiring in devices, switching stations, lighting, with operating voltage up to 1000V AC or 750V DC in relation to earth. C - the product complies with the guidelines of the low voltage directive 2006/95/EG.

Technické údaje

  • Number of veins
    1
  • Vein material
    Copper
  • Core cross-section [mm²]
    95
  • Outer diameter [mm]
    13.2-18.8
  • Accurate color
    RAL 9005
  • PKWIU
    27.32.13.0
  • Color
    Black
  • Rated voltage [V]
    450/750
  • Core
    Cord
  • Nominal cross section [mm2]
    95
  • Insulation material
    Halogen-free material

Další technické údaje

  • Nominal cross section conductor
    95 mm²
  • Material core insulation
    Other
  • Nominal voltage U0
    300 V
  • Conductor category
    Class 5 = flexible
  • Outer diameter approx.
    16.1 mm
  • Nominal voltage U
    300 V

Podrobnosti o výrobci

  • Výrobce
    HELUKABEL Polska Sp. z o.o.
  • Adresa
    96-325 Radziejowice Krze Duże 2 Polska
