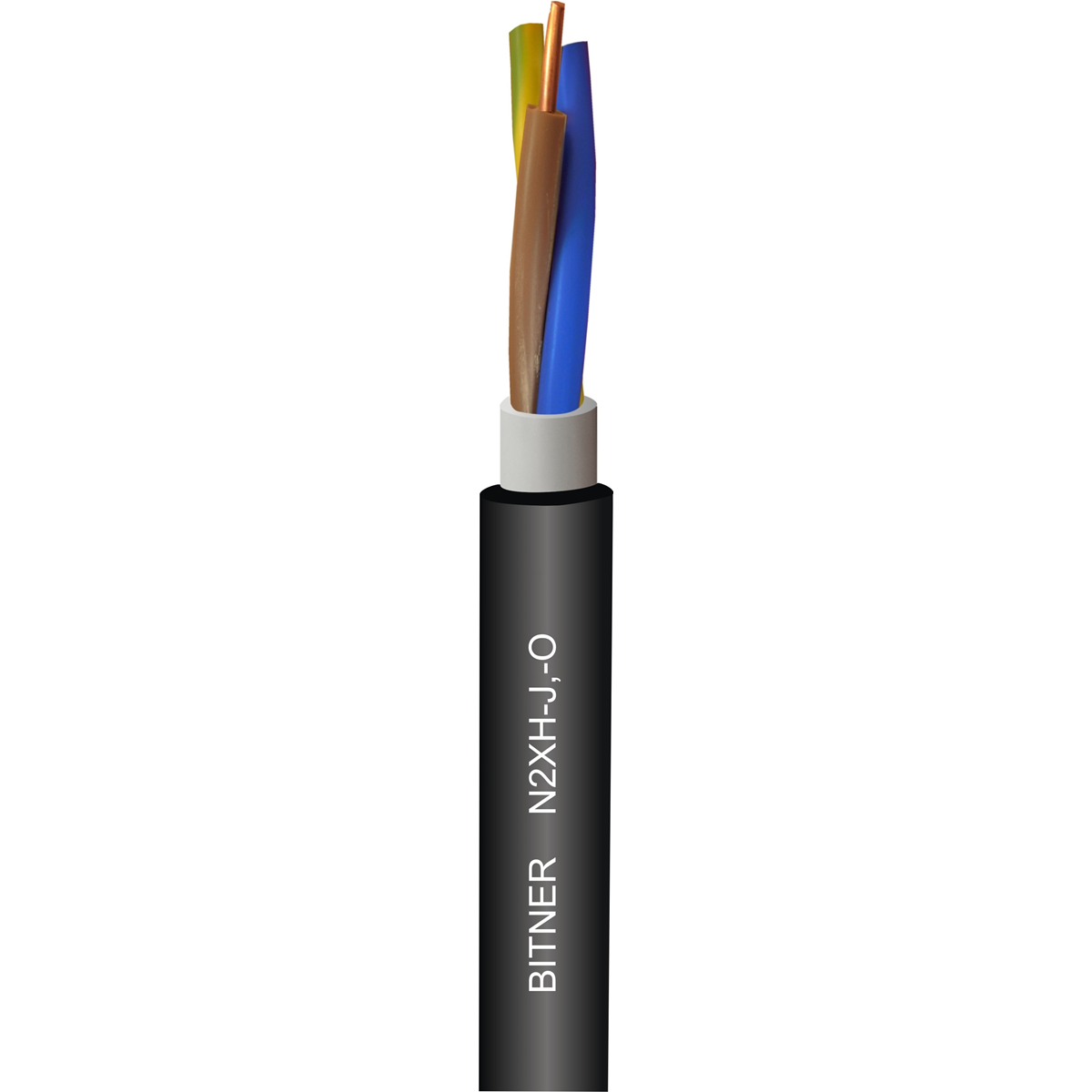

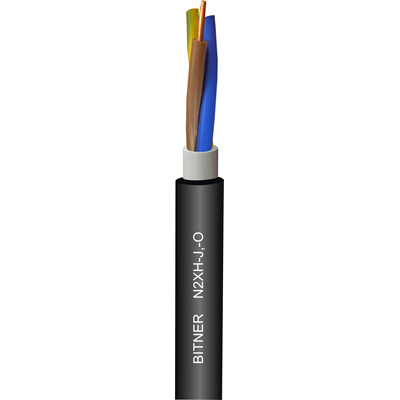

Halogen-free power and control cable N2XH-J 0.6/1kV 3x1.5RM B61623

Lokaler Index:
KUU021BITN
Katalognummer:
B61623
EAN-Code:
5902956202130
Hersteller: BITNER
Permissible core temperature during short-circuit [°C]: 250
Color: Black
Maximum operating temperature [°C]: 90
Preis:
2,03 €
gross / lfm.
(inklusive MwSt 23%)
Lieferung in 3h
Produkt auf individuelle Anfrage
Abholung in 1 Stunde
Menge lfm.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Drucken

Produktbeschreibung

Halogen-free power and control (signalling) cables for installation in facilities where human life or material goods must be protected in the event of a fire (hotels, hospitals, schools, airports, subway stations, railway stations, industrial installations). The cables are intended for laying in dry and damp rooms, on plaster, in and under plaster, in masonry walls and directly in concrete, only for permanent installation. For outdoor or underground installations, place the cables in conduits or conduits.

Technische Daten

  • Permissible core temperature during short-circuit [°C]
    250
  • Maximum operating temperature [°C]
    90
  • Outer diameter [mm]
    9.3
  • Laying temperature range [°C]
    -0.1
  • PKWIU
    27.32.13
  • Color
    Black
  • Voltage test [kV]
    4
  • Operating temperature range [°C]
    -0.444444444444444
  • Accurate color
    Black

Hersteller-Details

  • Hersteller
    BITNER Zakłady Kablowe Sp. z o.o.
  • Adresse
    30-009 Kraków Friedleina 3/3 Polska
