el12 Cables and wires Copper wires for mobile receivers Sheathed cables in insulation and rubber sheath

H07RN-F, ENHANCED VERSION 12G1.5; Cable 4533113

local index:
KGO038LAPP
Catalog number:
4533113
EAN code:
4044776708018

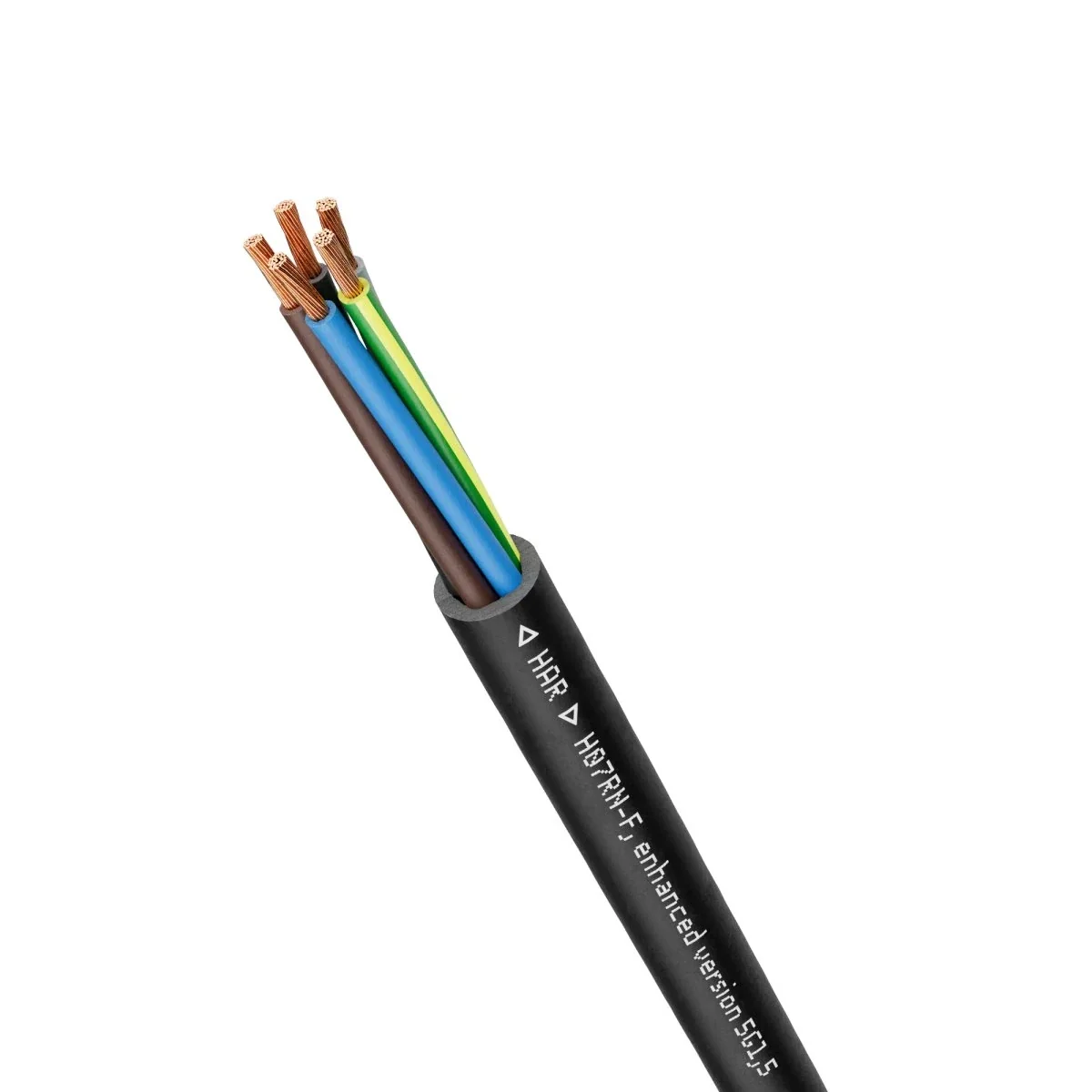

H07RN-F, ENHANCED VERSION 12G1.5; Cable
H07RN-F, ENHANCED VERSION 12G1.5; Cable
H07RN-F, ENHANCED VERSION 12G1.5; Cable
H07RN-F, ENHANCED VERSION 12G1.5; Cable

Click on the photo to enlarge

Manufacturer: LAPP KABEL
Price:
184,98 zł
gross / m.
(including VAT 23%)
Out of stock
On request
Add to inquiry
Print
Technical data Manufacturer details Files to download

Technical data

Other technical data

  • Conductor material
    Copper
  • Nominal cross section conductor
    1.5 mm²
  • Number of cores
    12
  • Screen over stranding
    None
  • Specification core insulation
    Other
  • Core identification
    Numbers
  • Material outer sheath
    Rubber
  • Colour outer sheath
    Black
  • Cable geometry
    Round
  • Flame retardant according to IEC 60332-3-21 (Cat A F/R)
    No
  • Flame retardant according to IEC 60332-3-23 (Cat B)
    No
  • Flame retardant according to IEC 60332-3-25 (Cat D)
    No
  • Halogen free according to EN IEC 60754-1
    Yes
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Oil resistant according to EN IEC 60811-404
    No
  • Min. permitted bending radius, stationary application/permanent installation
    89.6 mm
  • Permitted cable outer temperature after assembling without vibration
    -50 ... 90 °C
  • Nominal voltage U
    750 V
  • Conductor surface
    Bare
  • Conductor category
    Class 5 = flexible
  • Screen over stranding element
    None
  • Material core insulation
    Rubber
  • Core identification according to HD 308 S2
    No
  • With protective conductor
    Yes
  • Specification material outer sheath
    Other
  • Screen
    No
  • Flame retardant according to IEC 60332-1-2
    Yes
  • Flame retardant according to IEC 60332-3-22 (Cat A)
    No
  • Flame retardant according to IEC 60332-3-24 (Cat C)
    No
  • Low smoke according to EN IEC 61034-2
    Yes
  • Halogen free according to EN IEC 60754-2
    No
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Min. permitted bending radius, moving application/free movement
    134.4 mm
  • Permitted cable outer temperature during assembling/handling
    -40 ... 80 °C
  • Nominal voltage U0
    450 V
  • Weight
    620 kg/km

Manufacturer details

  • Manufacturer
    Lapp Kabel Sp. z o.o.
  • Address
    55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
  • Tax identification number
    8971621588
