el12 Cables and wires Copper wires for mobile receivers Residential multi-wire sheathed cables in polyvinyl insulation and sheath

H03VV-F 4G0.75 white Flexible multi-core power cable with PVC insulation and sheath, round 160062005C0100

Indice locale:
KGM015NKTQ
Numero di catalogo:
160062005C0100
Codice EAN:
5907802044575

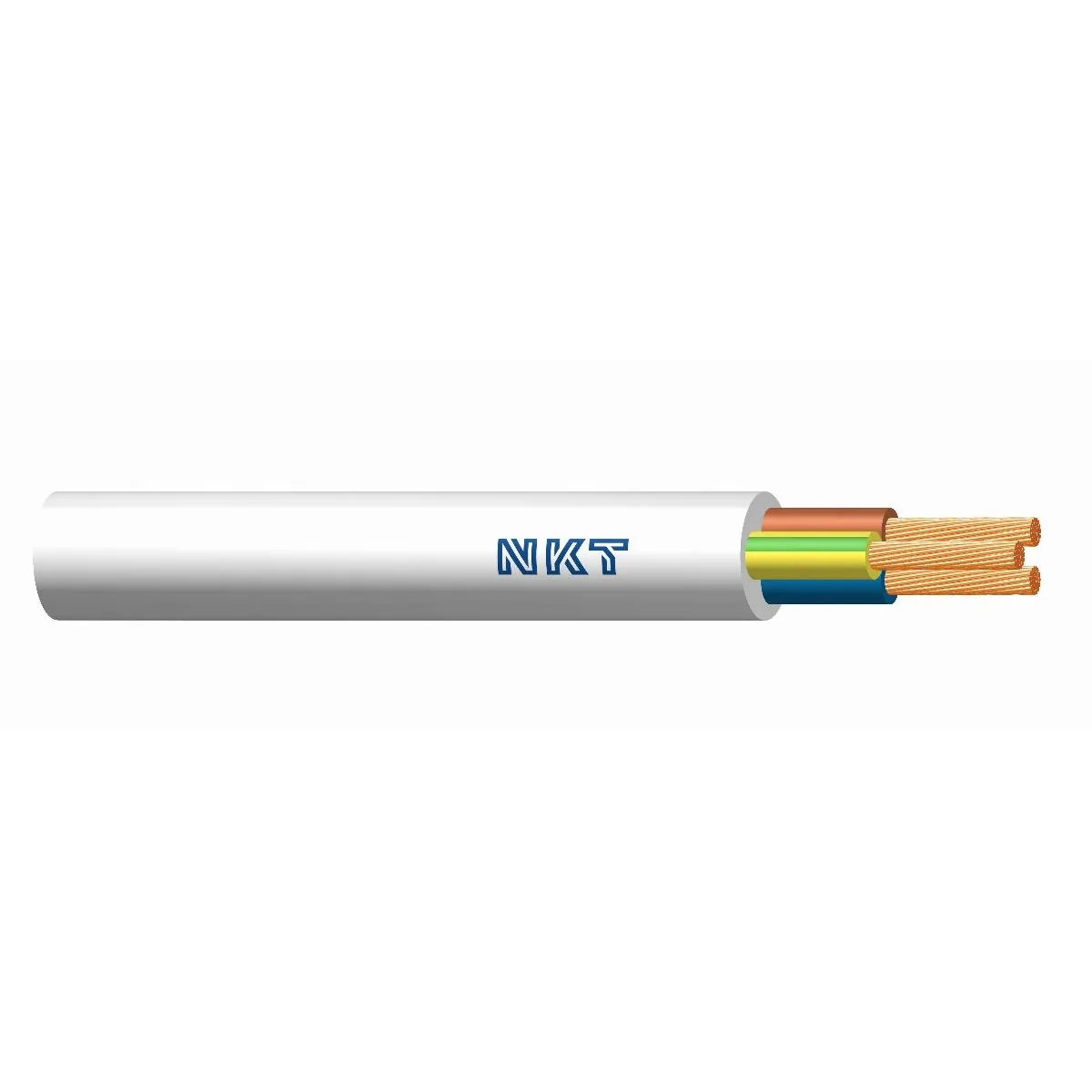

H03VV-F 4G0.75 white Flexible multi-core power cable with PVC insulation and sheath, round
H03VV-F 4G0.75 white Flexible multi-core power cable with PVC insulation and sheath, round

Clicca sulla foto per ingrandire

Produttore: NKT
Prezzo:
4,37 zł
gross / metro
(inclusa IVA 23%)
Esaurito
Su ordinazione
Aggiungi alla richiesta di preventivo
Stampa
Dati tecnici Dettagli del produttore File da scaricare

Dati tecnici

Altri dati tecnici

  • Conductor material
    Copper
  • Nominal cross section conductor
    0.75 mm²
  • Conductor category
    Class 5 = flexible
  • Number of cores
    4
  • Material core insulation
    Polyvinyl chloride (PVC)
  • Core identification according to HD 308 S2
    Yes
  • Core identification
    Colour
  • Max. conductor temperature
    70 °C
  • Drain wire
    No
  • Armouring/reinforcement
    None
  • Specification material outer sheath
    Other
  • Cable geometry
    Round
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low temperature resistant according to EN 60811-504+505+506
    No
  • Outer diameter approx.
    6.57 mm
  • Permitted cable outer temperature after assembling without vibration
    -30 ... 70 °C
  • Shape of conductor
    Round
  • Certified for shipboard application
    No
  • Suitable as high-voltage cable
    No
  • Weight
    71
  • Conductor surface
    Bare
  • Diameter conductor
    1.0 mm
  • Conductor resistance at 20 °C
    26
  • Twisted cores
    No
  • Specification core insulation
    Other
  • Identification/coding colour core
    Other
  • Core colour
    Several
  • Screen
    No
  • Protective barrier
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    White
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Oil resistant according to EN IEC 60811-404
    No
  • Permitted cable outer temperature during assembling/handling
    5 ... 40 °C
  • Circuit integrity
    None
  • Suitable as installation cable
    Yes
  • Suitable as medium-voltage cable
    No
  • Certified as airport lighting cable
    No

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    NB 1488
  • Wydzielane substancje niebezpieczne:
    NPD
  • Numer referencyjny DoP (DWU)
    DOP000402_PL_Rev3
  • Oznaczenie produktu
    H03VV-F 4G0,75 white
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014, EN50575:2014/A1:2016
  • Zastosowanie:
    Dostawa energii elektrycznej w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu

Dettagli del produttore

  • Produttore
    NKT S.A.
  • Indirizzo
    43-502 Warszowice Gajowa 3 Polska
  • Email
    info.pl@nkt.com
