H03VV-F 3G0.5 white Flexible multi-core power cable with PVC insulation and sheath, round 160062004C0100

Name: H03VV-F 3G0.5 white Flexible multi-core power cable with PVC insulation and sheath, round
Brand: NKT
SKU: KGM009NKTQ
Price: 2.30 PLN
Availability: BackOrder

Index local:

KGM009NKTQ

Numéro de catalogue:

160062004C0100

Code EAN:

5907802043493

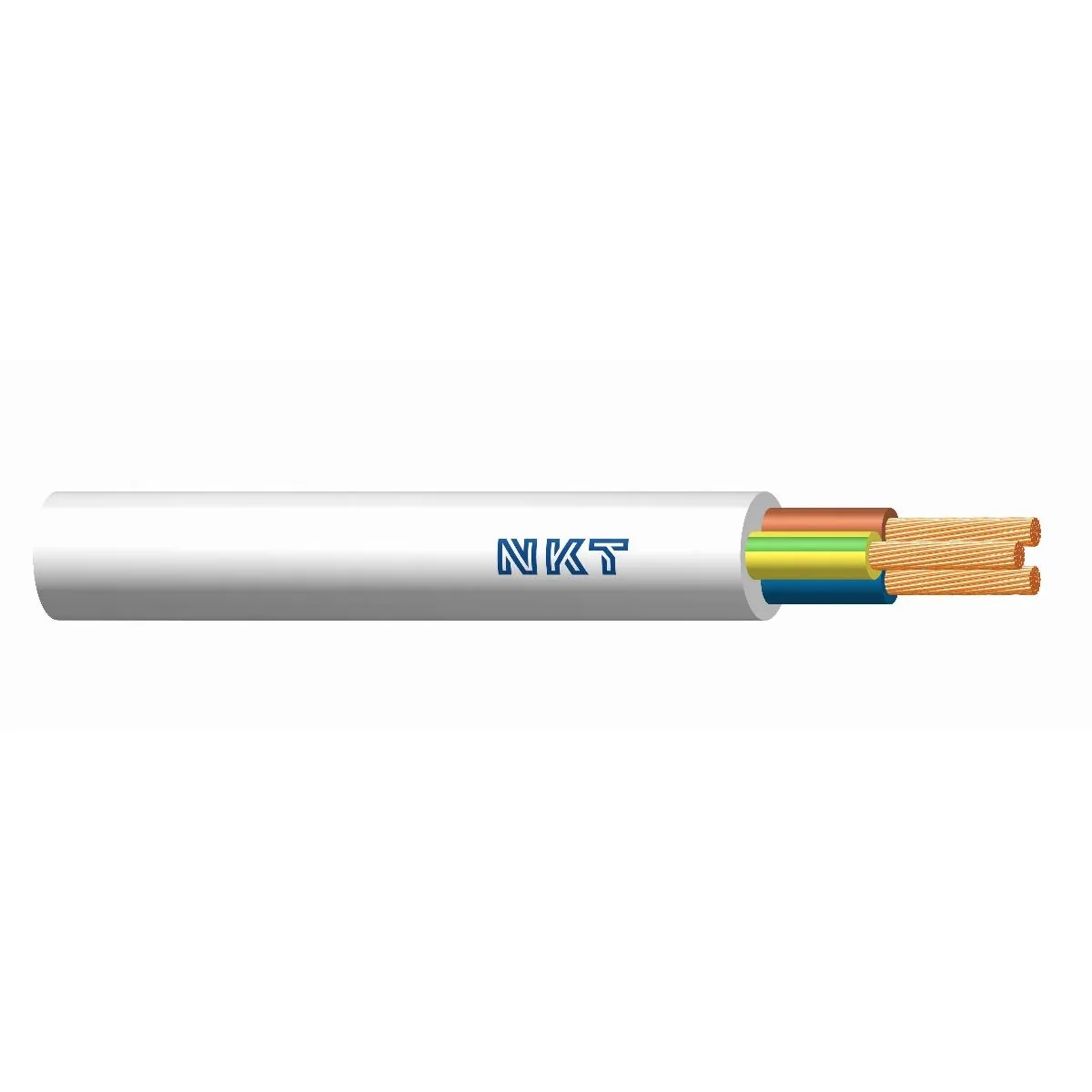

H03VV-F 3G0.5 white Flexible multi-core power cable with PVC insulation and sheath, round

Cliquer sur la photo pour l'agrandir

Producteur: NKT

Prix:

2,30 zł

gross / mc.

(y compris la TVA 23%)

En rupture de stock

Sur commande

Ajouter à la demande de devis

Imprimer

Renseignez-vous sur le produit

Données techniques Détails du fabricant Fichiers à télécharger

Données techniques

Autres données techniques

Conductor material

Copper
Nominal cross section conductor

0.5 mm²
Conductor category

Class 5 = flexible
Number of cores

3
Material core insulation

Polyvinyl chloride (PVC)
Core identification according to HD 308 S2

Yes
Core identification

Colour
Max. conductor temperature

70 °C
Drain wire

No
Armouring/reinforcement

None
Specification material outer sheath

Other
Cable geometry

Round
Reaction-to-fire according to EN 13501-6: Smoke production

None
Reaction-to-fire according to EN 13501-6: Acidity

None
Flame retardant

According to IEC/EN 60332-1-2
Low temperature resistant according to EN 60811-504+505+506

No
Outer diameter approx.

5.06 mm
Permitted cable outer temperature after assembling without vibration

-30 ... 70 °C
Shape of conductor

Round
Certified for shipboard application

No
Suitable as high-voltage cable

No
Weight

40

Conductor surface

Bare
Diameter conductor

0.8 mm
Conductor resistance at 20 °C

39
Twisted cores

No
Specification core insulation

Other
Identification/coding colour core

Other
Core colour

Several
Screen

No
Protective barrier

None
Material outer sheath

Polyvinyl chloride (PVC)
Colour outer sheath

White
Reaction-to-fire according to EN 13501-6: Class

Eca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

None
Halogen free according to EN 60754-1/2

No
Low smoke (according to EN 61034-2)

No
Oil resistant according to EN IEC 60811-404

No
Permitted cable outer temperature during assembling/handling

5 ... 40 °C
Circuit integrity

None
Suitable as installation cable

Yes
Suitable as medium-voltage cable

No
Certified as airport lighting cable

No

Dane CPR (Construction Products Regulation)

Numer notyfikowanego laboratorium badawczego CE:

NB 1488
Wydzielane substancje niebezpieczne:

NPD
Numer referencyjny DoP (DWU)

DOP000402_PL_Rev3
Oznaczenie produktu

H03VV-F 3G0,5 white

Reakcja na ogień:

Eca
Zharmonizowana specyfikacja techniczna (norma):

EN 50575:2014, EN50575:2014/A1:2016
Zastosowanie:

Dostawa energii elektrycznej w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu

Détails du fabricant

Producteur

NKT S.A.
Adresse

43-502 Warszowice Gajowa 3 Polska
E-mail

info.pl@nkt.com

Fichiers à télécharger

H03VV-F+DOP+DOP000402+PL+Rev03.pdf
