H03VV-F 2x0.75 white Flexible multi-core power cable with PVC insulation and sheath, round 160062000C0100

Name: H03VV-F 2x0.75 white Flexible multi-core power cable with PVC insulation and sheath, round
Brand: NKT
SKU: KGM003NKTQ
Price: 2.31 PLN
Availability: BackOrder

Índice local:

KGM003NKTQ

Número de catálogo:

160062000C0100

Código EAN:

5907802005101

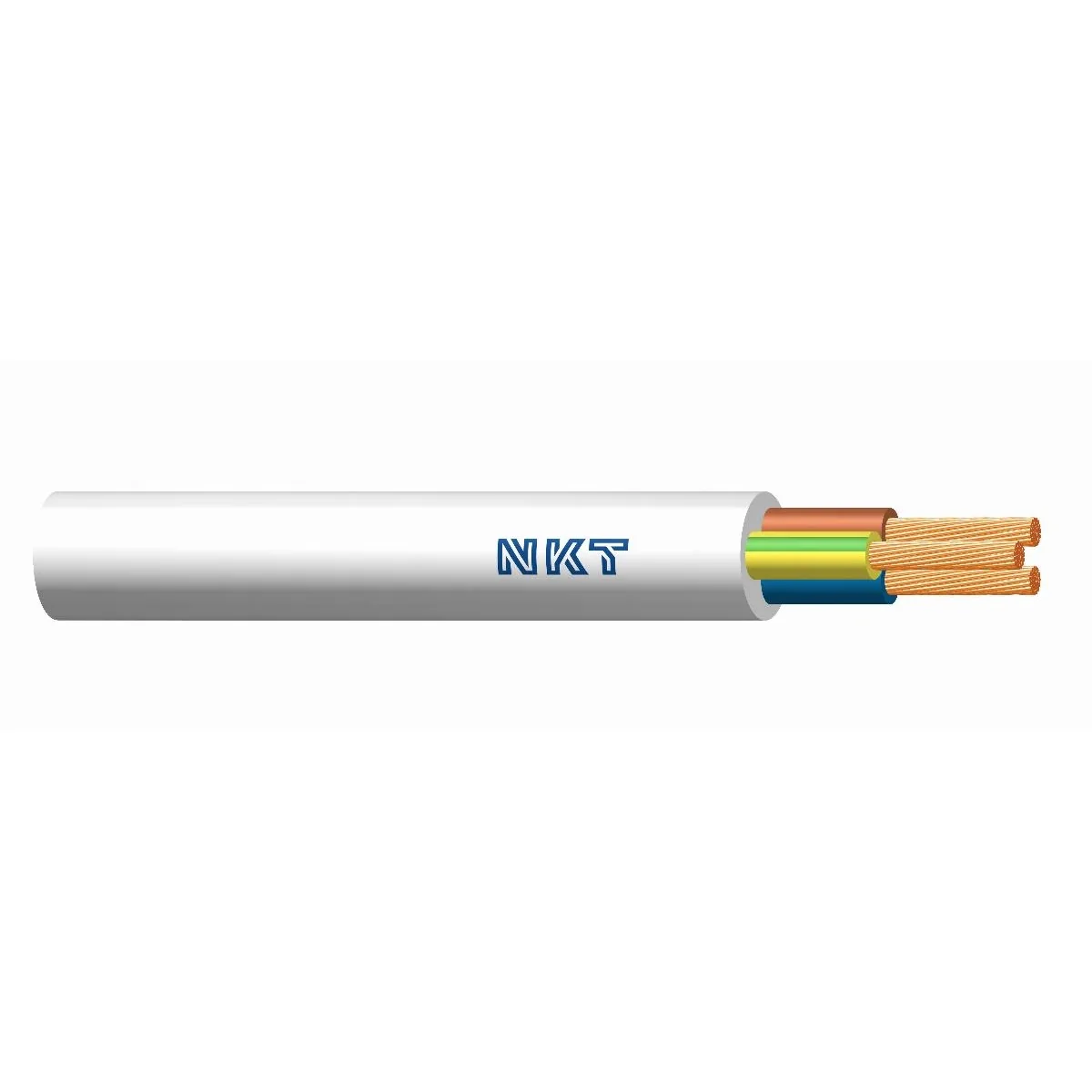

H03VV-F 2x0.75 white Flexible multi-core power cable with PVC insulation and sheath, round

Haga clic en la foto para ampliar

Fabricante: NKT

Precio:

2,31 zł

gross / metro

(IVA incluido 23%)

Fuera de stock

Por encargo

Añadir a solicitud de presupuesto

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Archivos para descargar

Datos técnicos

Otros datos técnicos

Conductor material

Copper
Nominal cross section conductor

0.75 mm²
Conductor category

Class 5 = flexible
Number of cores

2
Material core insulation

Polyvinyl chloride (PVC)
Core identification according to HD 308 S2

Yes
Core identification

Colour
Max. conductor temperature

70 °C
Drain wire

No
Armouring/reinforcement

None
Specification material outer sheath

Other
Cable geometry

Round
Reaction-to-fire according to EN 13501-6: Smoke production

None
Reaction-to-fire according to EN 13501-6: Acidity

None
Flame retardant

According to IEC/EN 60332-1-2
Low temperature resistant according to EN 60811-504+505+506

No
Outer diameter approx.

5.20 mm
Permitted cable outer temperature after assembling without vibration

-30 ... 70 °C
Shape of conductor

Round
Certified for shipboard application

No
Suitable as high-voltage cable

No
Weight

42

Conductor surface

Bare
Diameter conductor

1.0 mm
Conductor resistance at 20 °C

26
Twisted cores

No
Specification core insulation

Other
Identification/coding colour core

Other
Core colour

Several
Screen

No
Protective barrier

None
Material outer sheath

Polyvinyl chloride (PVC)
Colour outer sheath

White
Reaction-to-fire according to EN 13501-6: Class

Eca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

None
Halogen free according to EN 60754-1/2

No
Low smoke (according to EN 61034-2)

No
Oil resistant according to EN IEC 60811-404

No
Permitted cable outer temperature during assembling/handling

5 ... 40 °C
Circuit integrity

None
Suitable as installation cable

Yes
Suitable as medium-voltage cable

No
Certified as airport lighting cable

No

Dane CPR (Construction Products Regulation)

Numer notyfikowanego laboratorium badawczego CE:

NB 1488
Wydzielane substancje niebezpieczne:

NPD
Numer referencyjny DoP (DWU)

DOP000402_PL_Rev3
Oznaczenie produktu

H03VV-F 2x0,75 white

Reakcja na ogień:

Eca
Zharmonizowana specyfikacja techniczna (norma):

EN 50575:2014, EN50575:2014/A1:2016
Zastosowanie:

Dostawa energii elektrycznej w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu

Detalles del fabricante

Fabricante

NKT S.A.
Dirección

43-502 Warszowice Gajowa 3 Polska
Email

info.pl@nkt.com

Archivos para descargar

H03VV-F+DOP+DOP000402+PL+Rev03.pdf
