Flexible motor connection cables for frequency converters 2XSLCY-J 0.6/1 kV 4x10 IP0054

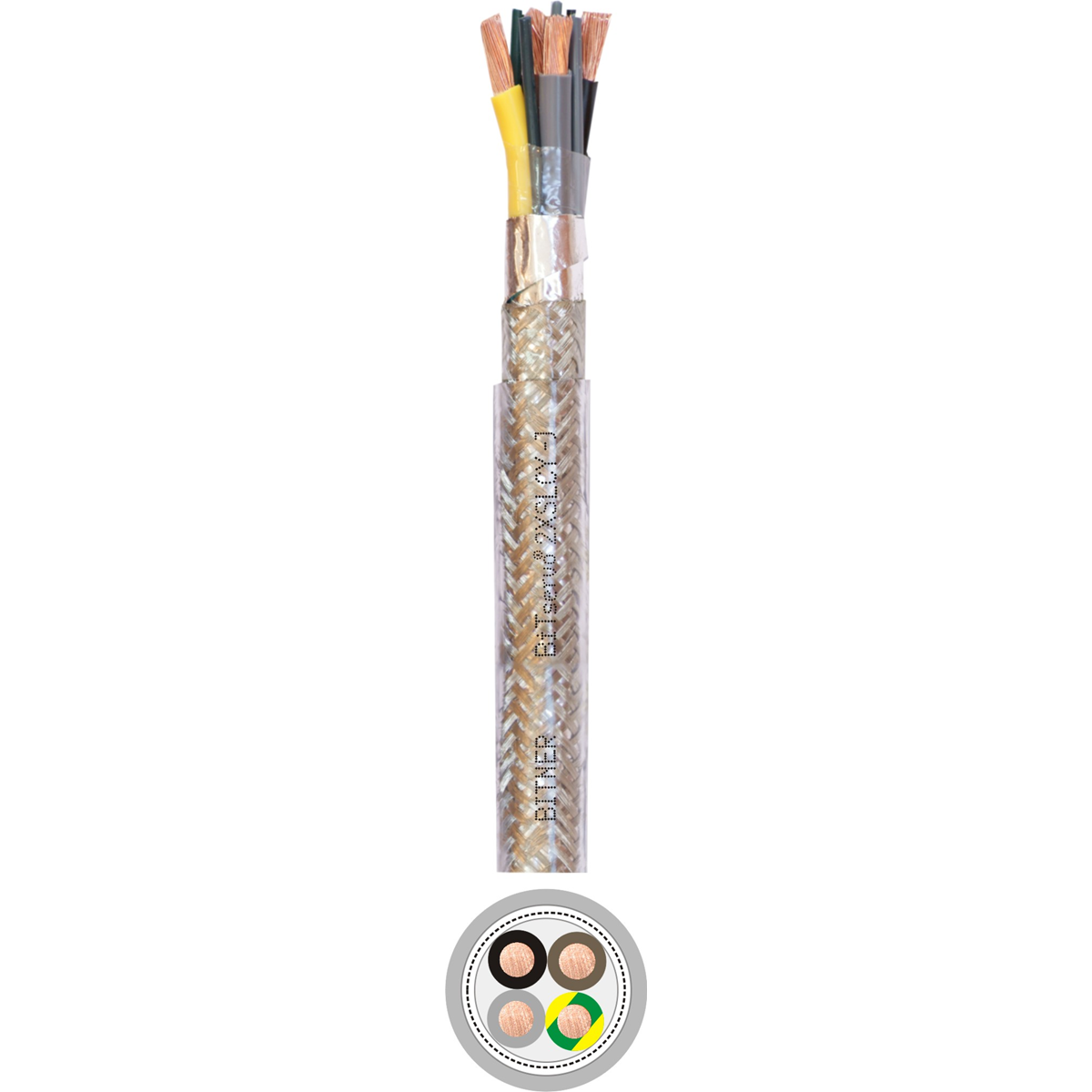

Name: Flexible motor connection cables for frequency converters 2XSLCY-J 0.6/1 kV 4x10
Brand: BITNER
SKU: KSE025BITN
Price: 21.86 PLN

local index:

KSE025BITN

Catalog No:

IP0054

EAN code:

5902956146762

Flexible motor connection cables for frequency converters 2XSLCY-J 0.6/1 kV 4x10

Click on the photo to enlarge

Manufacturer: BITNER

Color: Transparent

Maximum working conductor temperature [°C]: 90

Capacity [nF/km]: core/core = 70 to 250, core/screen = 110 to 410

See full description

Large-size product

Price:

21,86 €

gross / m.

(including VAT 23%)

Delivery in 3h

Product on individual request

Pickup in 1h

Quantity m.

(multiplicity:

)

Ask about the product

Product description Technical data Manufacturer details Files to download

Product description

Cables of a special design are used to power motors from frequency converters while maintaining full electromagnetic compatibility. XLPE cross-linked polyethylene insulation increases the current carrying capacity while maintaining a low capacitance of the cables compared to cables with PVC insulation. The cables are suitable for permanent installation and for movable connections in industrial equipment, technological lines, machines operating in dry and damp rooms.

Technical data

Color

Transparent
Capacity [nF/km]

core/core = 70 to 250, core/screen = 110 to 410
Insulation resistance [MΩ]

>200
Operating temperature range [°C]

-40/80(fixed installation), -5/80(mobile installation)
PKWIU

27.32.13

Maximum working conductor temperature [°C]

90
Voltage test [V]

2500
Diameter [mm]

17.5
Accurate color

Transparent

Dane CPR (Construction Products Regulation)

Numer notyfikowanego laboratorium badawczego CE:

NB 1438
Wydzielane substancje niebezpieczne:

brak
Numer referencyjny DoP (DWU)

0171/DWU/S/2019
Oznaczenie produktu

BiTservo 2XSLCY-J 4G10

Reakcja na ogień:

Eca
Zharmonizowana specyfikacja techniczna (norma):

PN-EN 50575
Zastosowanie:

Dostarczanie energii do budynków i innych obiektów budowlanych z uwzględnieniem ograniczenia powstawania i rozprzestrzeniania się ognia.
