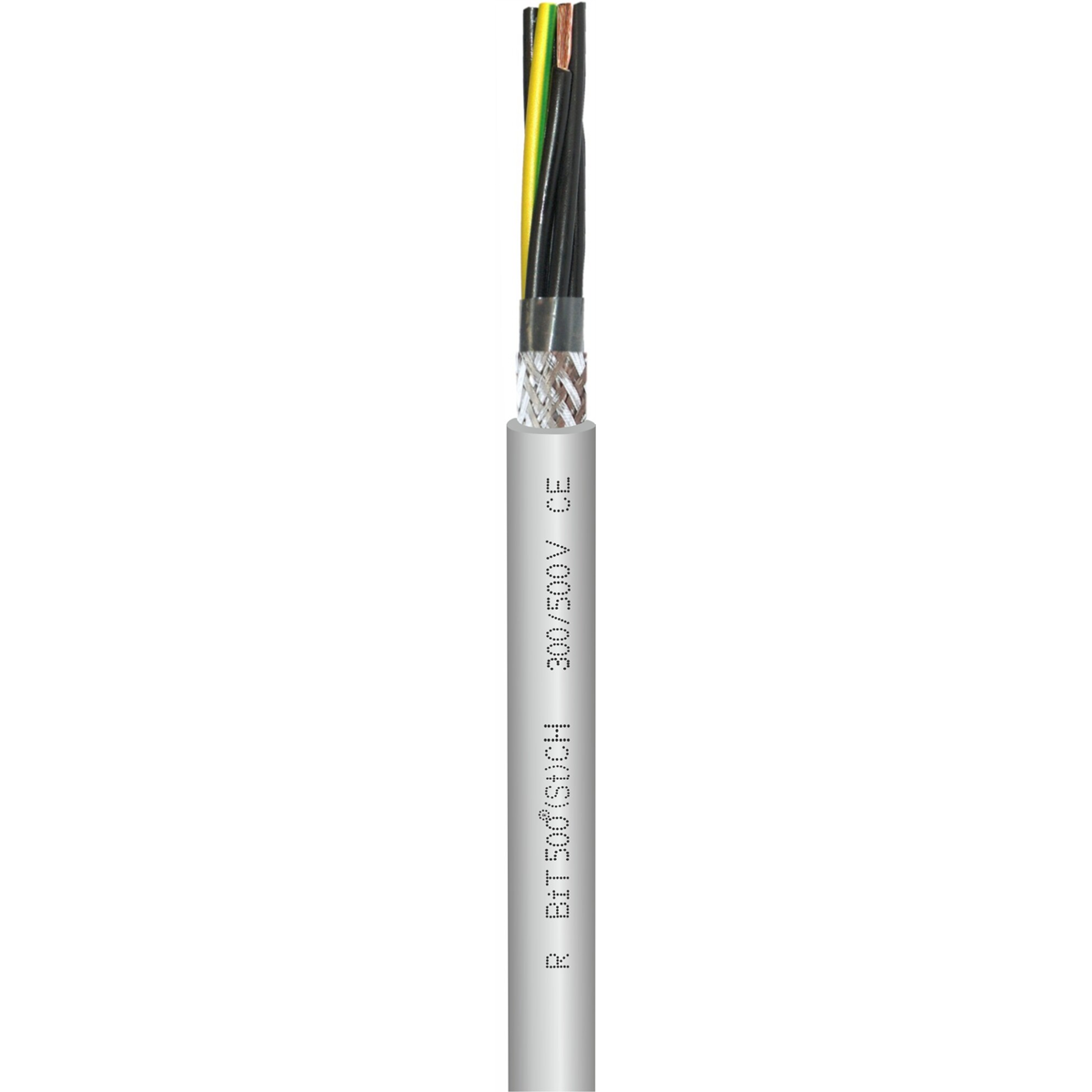

Flexible double shielded halogen free control cable with numbered cores 2x2x0.75mm² 300/500V gray SB9911

Index local:
KSA257BITN
Numéro de catalogue:
SB9911
Producteur: BITNER
Shielded: Yes
Number of veins: 4
Color: Gray
Prix:
6,51 zł
gross / mc.
(y compris la TVA 23%)
Livraison en 3h
Accessible 395 mc.
Ramassage en 1h
Quantité mc.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Flexible, halogen-free power and control cables designed to work in control and protection devices and in control circuits. Designed specifically for installation in industrial areas with increased fire safety requirements (limited flame spread). They are suitable for permanent installation and for movable connections in industrial equipment, process lines and machines operating in dry and wet rooms. A common screen made of metallised tape and tinned copper braid provides very good protection against external electromagnetic field (shield attenuation approx. 50dB). The cables are halogen-free, low-smoke and significantly reduce flame spread. Cables classified according to PN-EN 50575 (CPR).

Données techniques

  • Shielded
    Yes
  • Color
    Gray
  • Rated voltage [V]
    300/500
  • Core cross-section [mm²]
    0.75
  • Diameter [mm]
    8.9
  • Insulation resistance [MΩ/km]
    20
  • Number of veins
    4
  • Vein material
    Copper
  • Voltage test [kV]
    3
  • Type
    Internal control / signaling double shielded
  • Insulation material
    Other
