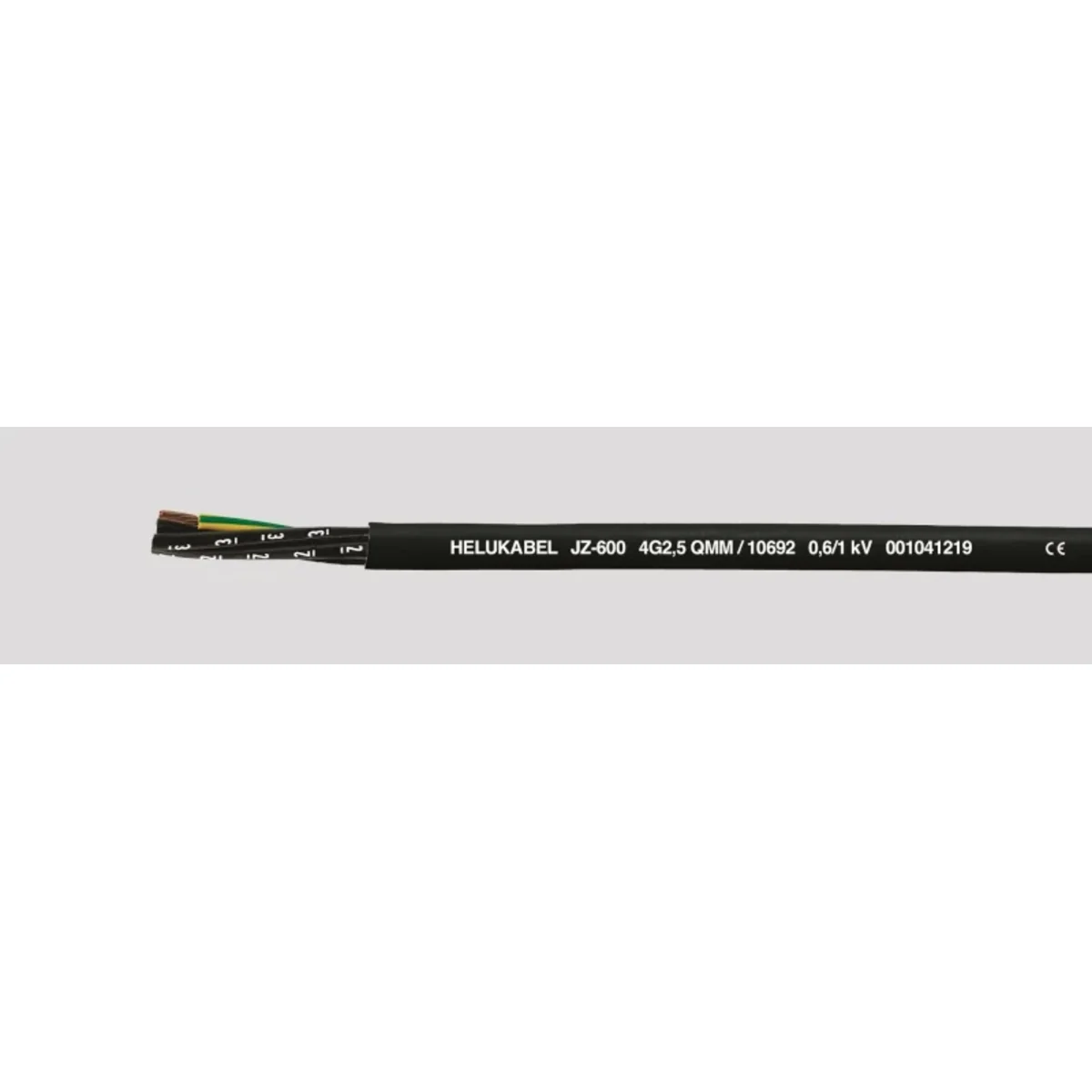

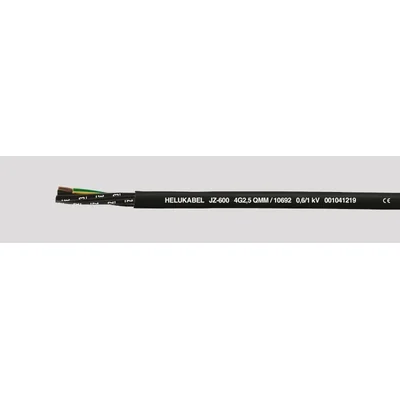

Flexible cable 4x10 black numbered conductors 10721

Lokaler Index:
KSA009HELU
Katalognummer:
10721
EAN-Code:
4060892004995
Hersteller: HELUKABEL
Number of veins: 4
Color: Black
Vein material: Copper
Großformatiges Produkt
Preis:
67,65 zł
gross / lfm.
(inklusive MwSt 23%)
Nicht auf Lager
Auf Bestellung
Zur Angebotsanfrage hinzufügen
Drucken

Produktbeschreibung

Used for medium mechanical loads for flexible connections where there are no tensile stresses. Usually installed in dry, damp and wet rooms, and outdoors (permanently installed). It can be laid directly in the ground when the thickness of the outer diameter is equal to or greater than 18 mm. Used in the engineering and metallurgical industries, for control, signaling and measurements at production lines, internal installations, air-conditioning installations, in metallurgy and steelworks. The veins are numbered in such a way that even a slight exposure of the outer dura allows the location of the vein to avoid confusion, the markings are underlined. A protective vein located close to the outer sheath. Outer tire made of special black PVC, UV-resistant. The cable is mainly used in the countries of Southern Europe, Eastern Europe and Arab countries. CE = The product complies with the requirements of the Low Voltage Directive 2006/95/EC.

Technische Daten

  • Number of veins
    4
  • Vein material
    Copper
  • Vein designation
    numbered
  • Core
    Cord
  • Nominal cross section [mm2]
    10
  • Insulation material
    PVC
  • Color
    Black
  • Rated voltage [V]
    300/500
  • Core cross-section [mm²]
    10
  • Outer diameter [mm]
    18.2
  • Accurate color
    RAL 9005
  • PKWIU
    27.32.13.0

Hersteller-Details

  • Hersteller
    HELUKABEL Polska Sp. z o.o.
  • Adresse
    96-325 Radziejowice Krze Duże 2 Polska
