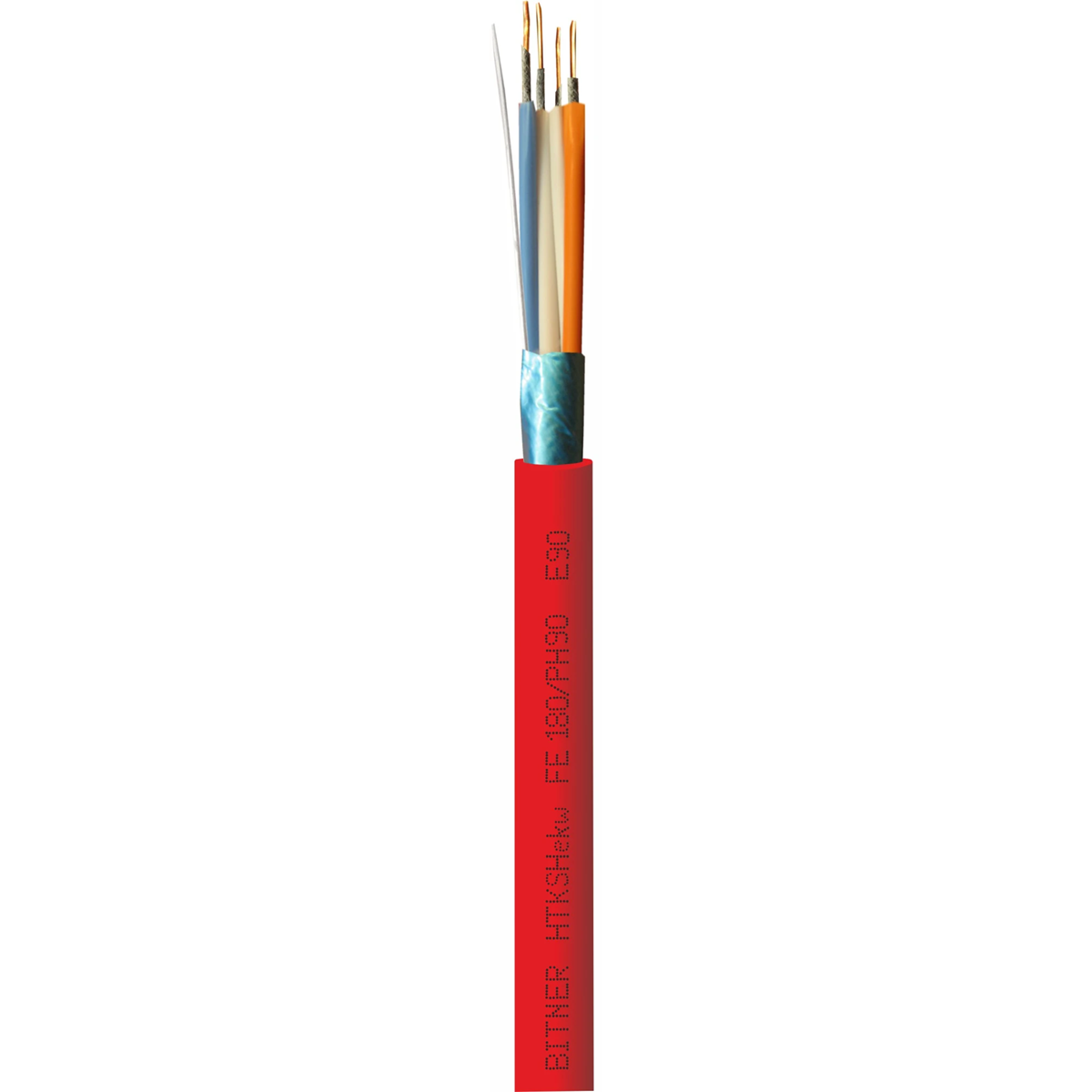

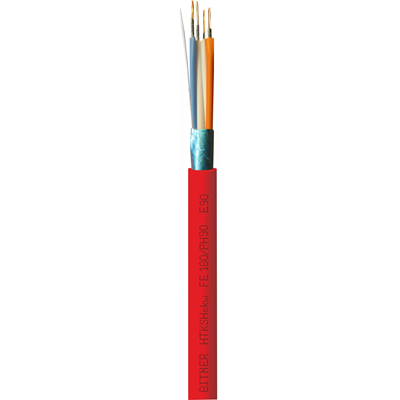

Fire resistant telecommunication cable Cu HTKSHekw FE180/PH90 1x2x1 B10104

local index:
KSP002BITN
Catalog No:
B10104
EAN code:
5902956185969
Manufacturer: BITNER
Minimum bending radius [mm]: 10 x diameter
AC standard voltages [V]: 1500
Standard DC voltages [V]: 2250
Price:
0,98 €
gross / m.
(including VAT 23%)
Delivery in 3h
Product on individual request
Pickup in 1h
Quantity m.
(multiplicity:
1
)
Print

Product description

HTKSH PH90 1x2x0.8 station telecommunication cable, with single-wire copper conductors, insulation made of mica tape and halogen-free plastic, and sheath made of halogen-free thermoplastic material, fire resistant. Fireproof, halogen-free telecommunication cables are intended for use in emergency lighting systems, alarm systems, signaling systems, teletransmission systems, sound warning systems (DSO) as well as in fire alarm and fire automation systems and in other circuits ensuring safety. In fire conditions, these cables ensure proper functioning of the installation for at least 90 minutes. and durability of cable insulation for 3 hours. During combustion, they do not emit toxic, suffocating gases and dense smoke. The cables are suitable for permanent installation inside buildings.

Technical data

  • Minimum bending radius [mm]
    10 x diameter
  • Standard DC voltages [V]
    2250
  • Insulation resistance [MΩ]
    500
  • Operating temperature range [°C]
    -0.357142857142857
  • PKWIU
    27.32.13
  • AC standard voltages [V]
    1500
  • Rated voltage [V]
    230
  • Outer diameter [mm]
    8
  • Laying temperature range [°C]
    -0.1

Manufacturer details

  • Manufacturer
    BITNER Zakłady Kablowe Sp. z o.o.
  • Address
    30-009 Kraków Friedleina 3/3 Polska
