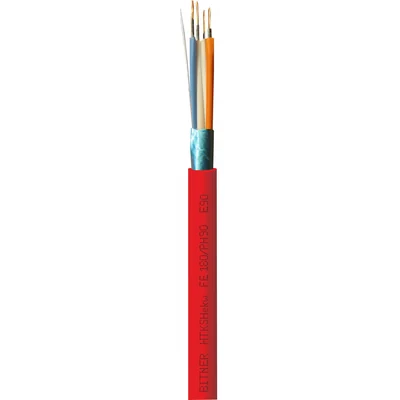

Fire resistant telecommunication cable Cu HTKSHekw FE180/PH90 1x2x0.8 B10100

Indice locale:
KSP001BITN
Numero di catalogo:
B10100
Codice EAN:
5902956185877
Produttore: BITNER
Minimum bending radius [mm]: 10 x diameter
AC standard voltages [V]: 1500
Standard DC voltages [V]: 2250
Prodotto di grandi dimensioni
Prezzo:
0,85 €
gross / metro
(inclusa IVA 23%)
Consegna in 3 ore
Accessibile 150 metro
Raccolta in 1h
Quantità metro
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

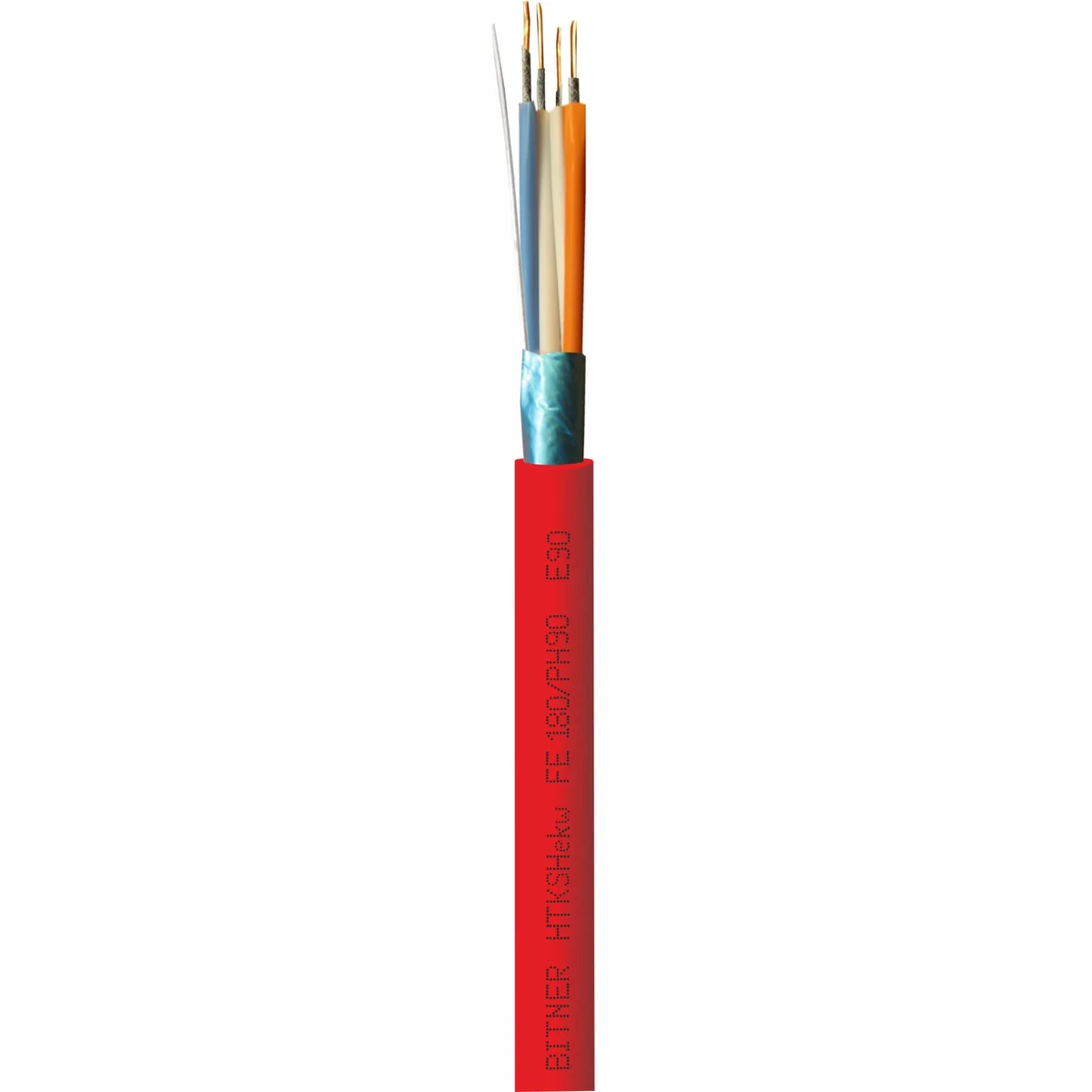

HTKSH PH90 1x2x0.8 station telecommunication cable, with single-wire copper conductors, insulation made of mica tape and halogen-free plastic, and sheath made of halogen-free thermoplastic material, fire resistant. Fireproof, halogen-free telecommunication cables are intended for use in emergency lighting systems, alarm systems, signaling systems, teletransmission systems, sound warning systems (DSO) as well as in fire alarm and fire automation systems and in other circuits ensuring safety. In fire conditions, these cables ensure proper functioning of the installation for at least 90 minutes. and durability of cable insulation for 3 hours. During combustion, they do not emit toxic, suffocating gases and dense smoke. The cables are suitable for permanent installation inside buildings.

Dati tecnici

  • Minimum bending radius [mm]
    10 x diameter
  • Standard DC voltages [V]
    2250
  • Insulation resistance [MΩ]
    500
  • Operating temperature range [°C]
    -0.357142857142857
  • PKWIU
    27.32.13
  • AC standard voltages [V]
    1500
  • Rated voltage [V]
    230
  • Outer diameter [mm]
    7.3
  • Laying temperature range [°C]
    -0.1

Dettagli del produttore

  • Produttore
    BITNER Zakłady Kablowe Sp. z o.o.
  • Indirizzo
    30-009 Kraków Friedleina 3/3 Polska
