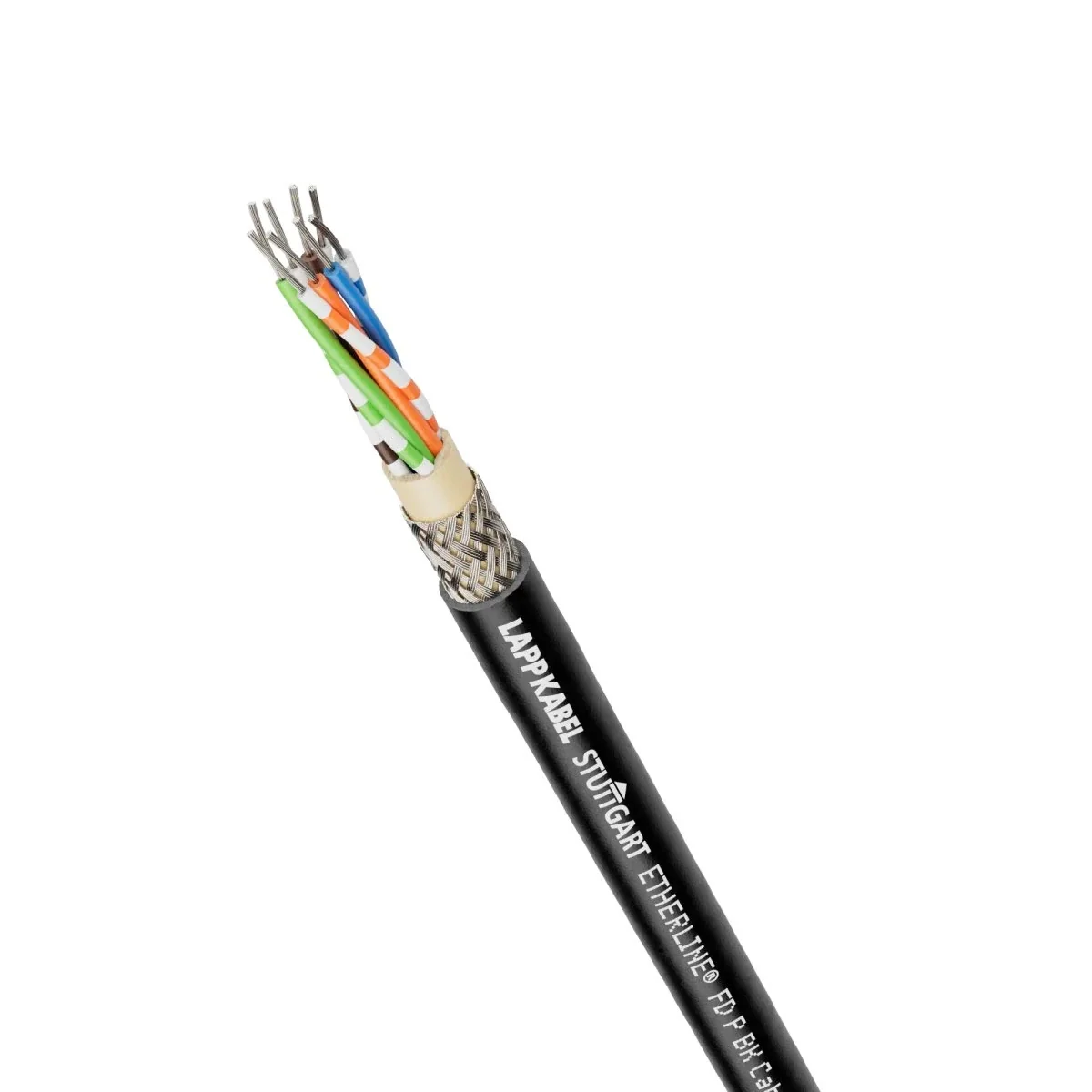

ETHERLINE FD P BK CAT.5; Cable CE217489
Indice locale:
KSE106LAPP
Numero di catalogo:
CE217489
Codice EAN:
4044773832013
Produttore:
LAPP KABEL
Prezzo:
70,31 zł
gross / metro
(inclusa IVA 23%)
Su ordinazione
Quantità metro
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa
Chiedi informazioni sul prodotto
Dati tecnici
Altri dati tecnici
-
Conductor materialCopper
-
AWG size26
-
Stranding elementPairs
-
Specification core insulationOther
-
Core identificationColour
-
StrandingOther
-
Longitudinal water blocking cableNo
-
Protective sheathPolyurethane (PUR)
-
Specification material outer sheathOther
-
Cable geometryRound
-
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
-
Flame retardant according to IEC 60332-3-23 (Cat B)No
-
Flame retardant according to IEC 60332-3-25 (Cat D)No
-
Halogen free according to EN IEC 60754-1Yes
-
Reaction-to-fire according to EN 13501-6: ClassNone
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Circuit integrity according to IEC 60331-23No
-
Outer diameter approx.6.3 mm
-
Min. permitted bending radius, stationary application/permanent installation52.8 mm
-
Permitted cable outer temperature after assembling without vibration-40 ... 80 °C
-
NVP value0.67 %
-
Weight55 kg/km
-
Nominal voltage U30 V
-
Compatible with Grade3TV according to XP-C 90-483No
-
Conductor surfaceBare
-
Number of cores8
-
Material core insulationPolyolefin
-
Core identification according to HD 308 S2No
-
Screen over stranding elementNone
-
Screen over strandingBraiding
-
Radial water blocking cableNo
-
Material outer sheathPolyurethane (PUR)
-
Colour outer sheathBlack
-
Flame retardant according to IEC 60332-1-2No
-
Flame retardant according to IEC 60332-3-22 (Cat A)No
-
Flame retardant according to IEC 60332-3-24 (Cat C)No
-
Low smoke according to EN IEC 61034-2No
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application with forced guidance99 mm
-
Permitted cable outer temperature during assembling/handling-30 ... 70 °C
-
Category5E
-
Certified for shipboard applicationNo
-
Characteristic impedance100 Ω
-
Compatible with Grade2TV according to XP-C 90-483No
