Cable YDYp 4x2.5 450/750 white 172153021C0100
local index:
KPP270NKTQ
Catalog No:
172153021C0100
EAN code:
5907802038857
Price:
1,62 €
gross / m.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity m.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description

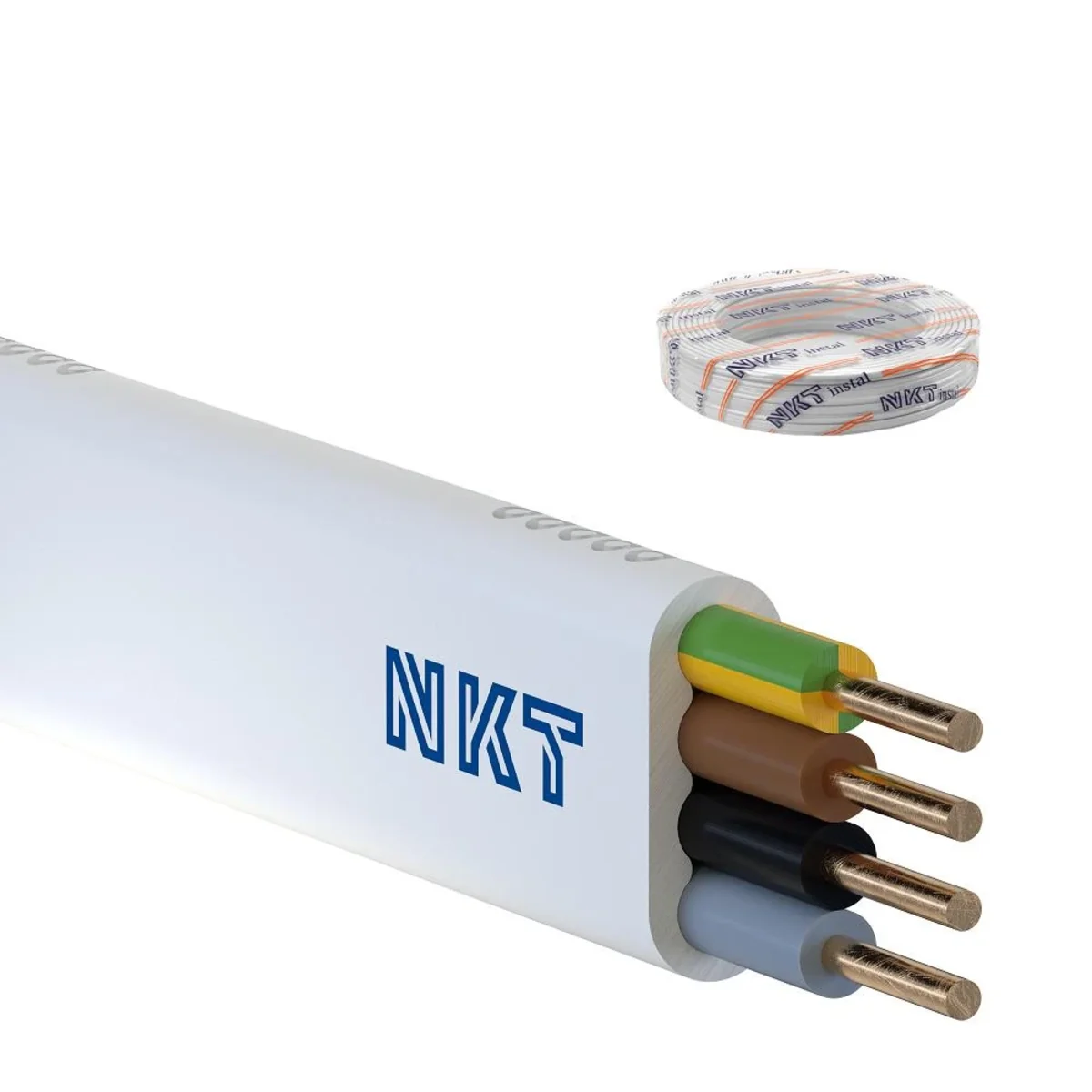

Cable YDYp 4x2, 5 450/750 white, flat, multi-core for permanent installation.
Installation cable with single-wire copper conductors in insulation and PVC sheath.
Technical data
-
Number of veins4
-
Vein materialCopper
-
Core cross-section [mm²]2.5
-
Libra184 kg/km
-
Insulation materialPVC
-
ColorWhite
-
Rated voltage [V]450/750
-
CoreWire
-
Accurate colorWhite
-
PKWIU27.32.13.0
Other technical data
-
Conductor materialCopper
-
Nominal cross section conductor2.5 mm²
-
Number of cores4
-
Material core insulationPolyvinyl chloride (PVC)
-
Core identificationColour
-
ScreenNo
-
Protective barrierNone
-
Material outer sheathPolyvinyl chloride (PVC)
-
Colour outer sheathWhite
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Flame retardantAccording to IEC/EN 60332-1-2
-
Low temperature resistant according to EN 60811-504+505+506No
-
Wytrzymałość (trwałość) izolacjiNo
-
Min. permitted bending radius, stationary application/permanent installation4 mm
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Twisted coresNo
-
Specification core insulationOther
-
Max. conductor temperature+70 °C
-
Drain wireNo
-
Armouring/reinforcementNone
-
Specification material outer sheathOther
-
Reaction-to-fire according to EN 13501-6: ClassEca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Halogen free according to EN 60754-1/2No
-
Low smoke (according to EN 61034-2)No
-
Oil resistant according to EN IEC 60811-404No
-
Nominal voltage U0450 V
-
Nominal voltage U750 V
Dane CPR (Construction Products Regulation)
-
Numer notyfikowanego laboratorium badawczego CE:nie doty
-
Wydzielane substancje niebezpieczne:NPD
-
Numer referencyjny DoP (DWU)DOP000042
-
Oznaczenie produktunkt instal YDYpżo 450/750 4x2,5 biały
-
Reakcja na ogień:Eca
-
Zharmonizowana specyfikacja techniczna (norma):EN 50575:2014, EN50575:2014/A1:2016
-
Zastosowanie:Dostawa energii (oraz zastosowania komunikacyjne) w budynkach i innych obiektach budowlanych w celu ograniczenia powstawania i rozprzestrzeniania się ognia i dymu
Manufacturer details
-
ManufacturerNKT S.A.
-
Address43-254 Warszowice ul. Gajowa 3
-
Phone number
-
E-mail
-
Tax identification number6520005449
-
GLN5909002076202
