Product description

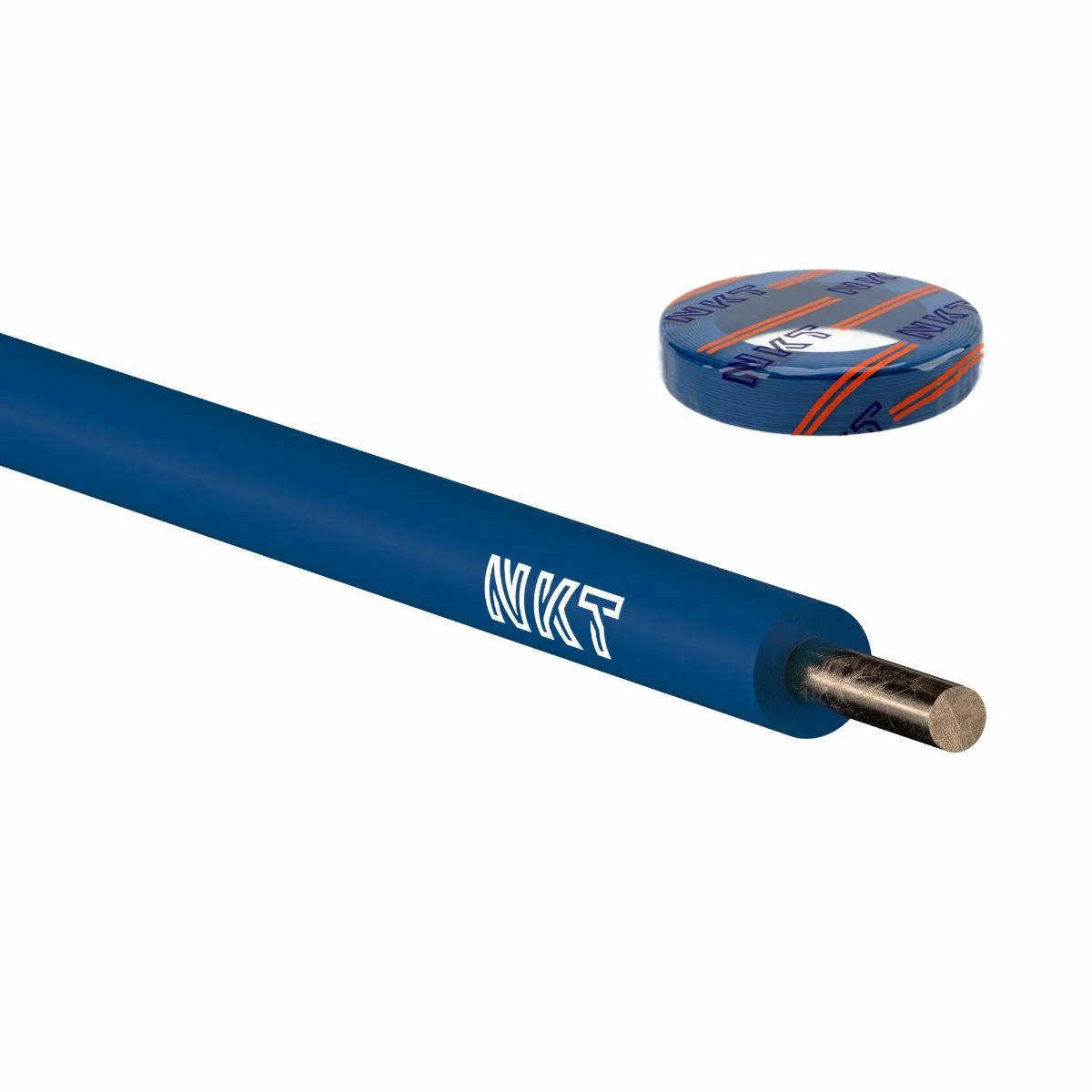

Cable H07V-U 750 2, 5 blue
Technical data
-
Number of veins1
-
Vein materialCopper
-
Core cross-section [mm²]2.5
-
Diameter [mm]3.3
-
Libra8 kg/km
-
Insulation materialPVC
-
ColorBlue
-
Rated voltage [V]450/750
-
CoreWire
-
Working temperature [°C]70
-
Accurate colorBlue
-
PKWIU27.32.13.0
Other technical data
-
Conductor materialCopper
-
Nominal cross section conductor2.5 mm²
-
Material core insulationPolyvinyl chloride (PVC)
-
Core identificationColour
-
Żyła ochronnaNo
-
Drain wireNo
-
Armouring/reinforcementNone
-
Specification material outer sheathOther
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Flame retardantAccording to IEC/EN 60332-1-2
-
Low temperature resistant according to EN 60811-504+505+506No
-
Wytrzymałość (trwałość) izolacjiNo
-
Permitted cable outer temperature after assembling without vibration-40 ... +70 °C
-
Min. permitted bending radius, stationary application/permanent installation5 mm
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Specification core insulationOther
-
Max. conductor temperature70 °C
-
ScreenNo
-
Protective barrierNone
-
Material outer sheathNone
-
Reaction-to-fire according to EN 13501-6: ClassEca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Halogen free according to EN 60754-1/2No
-
Low smoke (according to EN 61034-2)No
-
Oil resistant according to EN IEC 60811-404No
-
Outer diameter approx.3.27 mm
-
Nominal voltage U0450 V
-
Nominal voltage U750 V
Dane CPR (Construction Products Regulation)
-
Numer notyfikowanego laboratorium badawczego CE:NB 2652
-
Numer referencyjny DoP (DWU)DOP000035_PL_Rev.4
-
Oznaczenie produktuH07V-U 1x2,5 niebieski RAL 5010
-
Nazwa producenta:NKT S.A., ul. Gajowa 3, 43 - 254, Warszowice
-
Reakcja na ogień:Eca
-
Zharmonizowana specyfikacja techniczna (norma):EN 50575:2014+A1:2016
-
Zastosowanie:Do przesyłu energii elektrycznej do zastosowania w obiektach objętych uregulowaniami odnośnie reakcji wyrobów budowlanych na oddziaływanie ognia.
