BITONE Installation cable H07V-K 1x10mm2 450/750V blue IG2004.06

Name: BITONE Installation cable H07V-K 1x10mm2 450/750V blue
Brand: BITNER
SKU: KLB040BITN
Price: 2.20 PLN
Availability: InStock

local index:

KLB040BITN

Catalog No:

IG2004.06

EAN code:

5902956335050

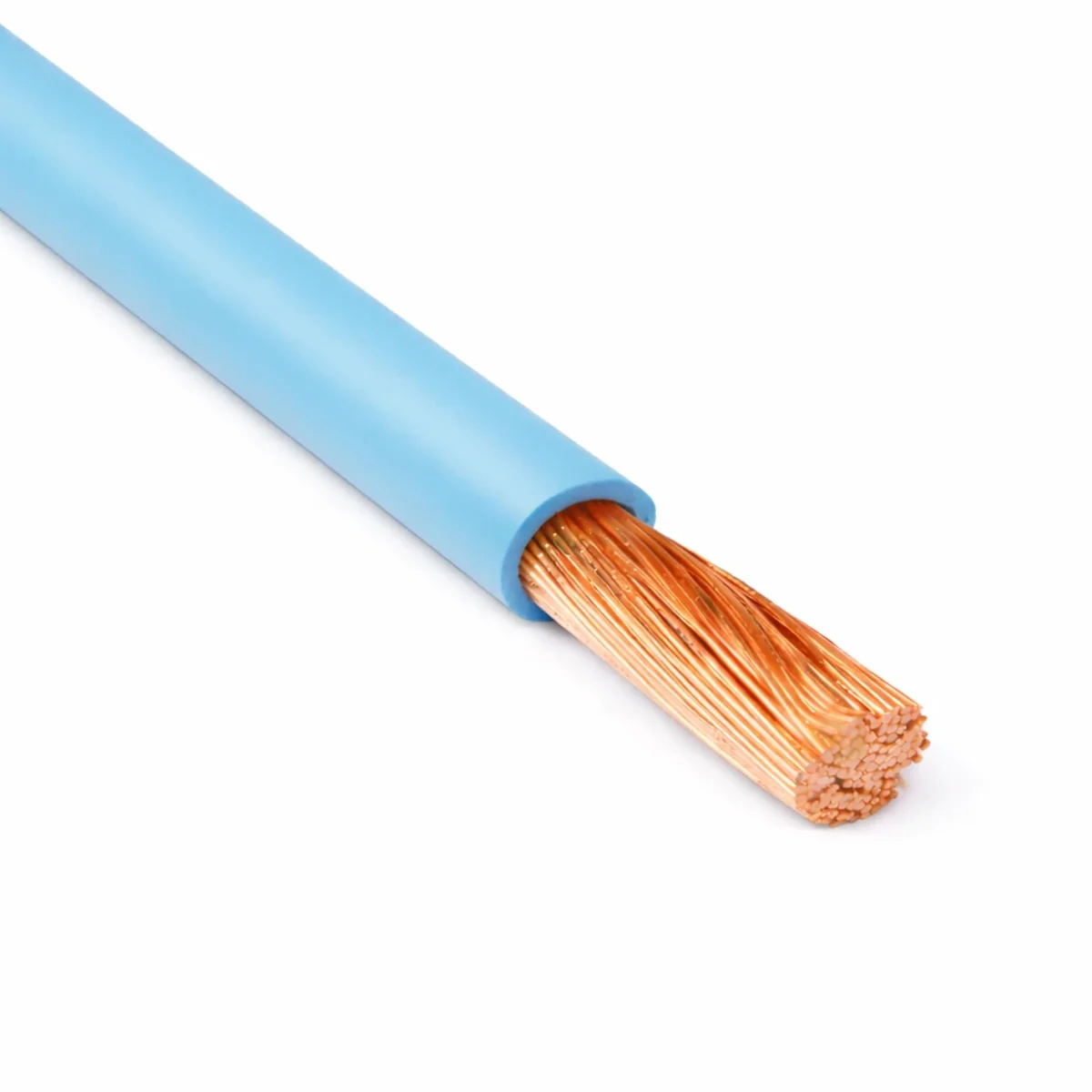

BITONE Installation cable H07V-K 1x10mm2 450/750V blue

Click on the photo to enlarge

Manufacturer: BITNER

Number of veins: 1

Color: Blue

Rated voltage [V]: 450/750

See full description

Price:

2,20 €

gross / m.

(including VAT 23%)

Accessible 2157 m.

Quantity m.

(multiplicity:

1

)

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Files to download

Product description

Flexible single-core cable with PVC insulation from the BiTOne series, from the BITNER manufacturer. Product part number is IG2004.06.

Operating temperature:
- Permanent installation: -40°C to 80°C.
- Minimum installation temperature: -5°C.
Class 5 stranded copper conductor (according to PN-EN 60228, EN 60228, IEC 60228).
Insulation: special PVC.
Single-core cables with PVC insulation for making connections in devices, switchboards, lighting, etc.
Cables classified in accordance with the PN-EN 50575 standard (CPR).

Technical data

Number of veins

1
Rated voltage [V]

450/750
Core cross-section [mm²]

10
Family

BITONE
Insulation material

PVC
PKWIU

27.32.13

Color

Blue
Voltage test [V]

2500
Cable type

H07V-K
Cable outer diameter [mm]

5.9
Vein class

5

Manufacturer details

Manufacturer

BITNER Zakłady Kablowe Sp. z o.o.
Address

30-009 Kraków Friedleina 3/3 Polska
E-mail

bitner@bitner.com.pl

Files to download

033128200421_BiTOne_16.pdf
