SCHNEIDER ELECTRIC

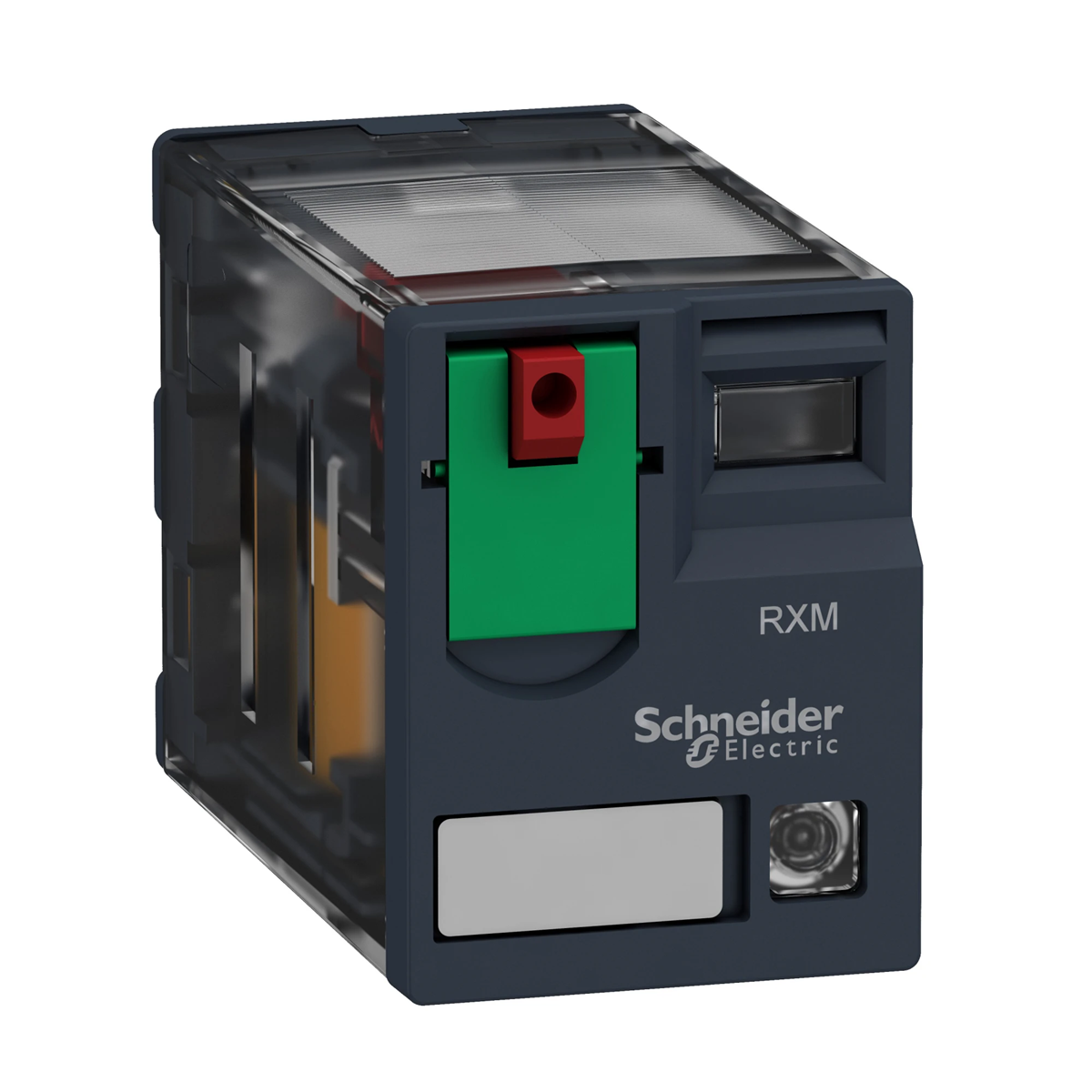

Zelio Relay Miniature LED relay 3C/O 10A 230VAC RXM3AB2P7

local index:
APE054SCHN
Catalog No:
RXM3AB2P7
EAN code:
3389119403696
Price:
13,46 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Zelio Relay Miniature LED relay 3C/O 10A 230VAC

Technical data

  • ambient temperature [°C]
    From -40 to 85

Other technical data

  • Type of electric connection
    Plug-in connection
  • Nominal current
    10 A
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    3
  • Type of switch contact
    Other
  • With LED indication
    yes
  • Width
    21 mm
  • Depth
    55 mm
  • With detachable clamps
    no
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • With forced-guided contacts
    no
  • Complete with socket
    no
  • Degree of protection (IP)
    IP40
  • Height
    27 mm
