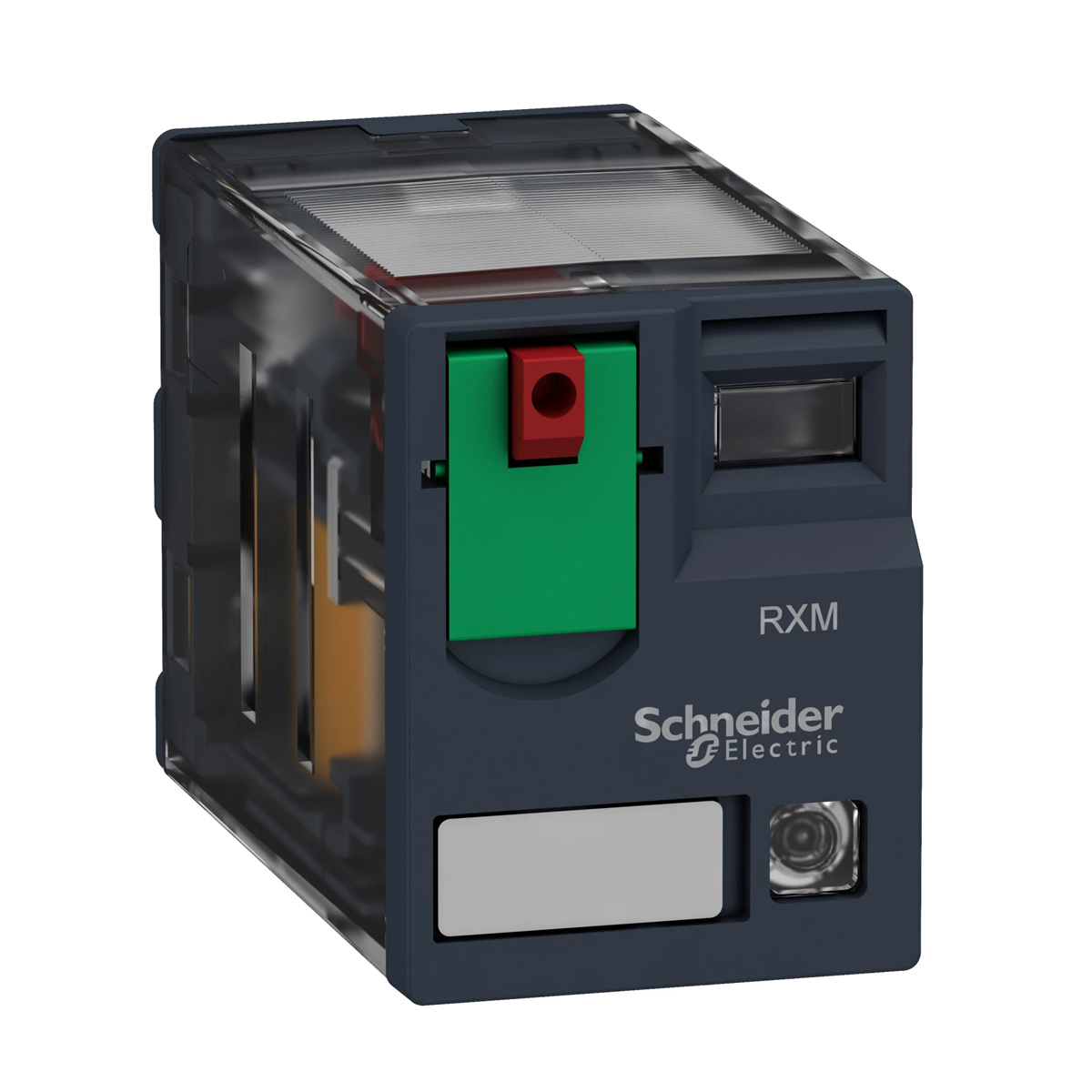

Zelio Relay Miniature LED relay 2C/O 12A 230VAC RXM2AB2P7

local index:
APE032SCHN
Catalog No:
RXM2AB2P7
EAN code:
3389119403535
Manufacturer: SCHNEIDER ELECTRIC
ambient temperature [°C]: From -40 to 85
Price:
11,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Zelio Relay Miniature LED relay 2C/O 12A 230VAC

Technical data

  • ambient temperature [°C]
    From -40 to 85
  • PKWIU
    27.11.61.0

Other technical data

  • Type of electric connection
    Plug-in connection
  • Nominal current
    12 A
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    2
  • Type of switch contact
    Other
  • With LED indication
    Yes
  • Width
    21 mm
  • Depth
    55 mm
  • With detachable clamps
    No
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • With forced-guided contacts
    No
  • Complete with socket
    No
  • Degree of protection (IP)
    IP40
  • Height
    27 mm
