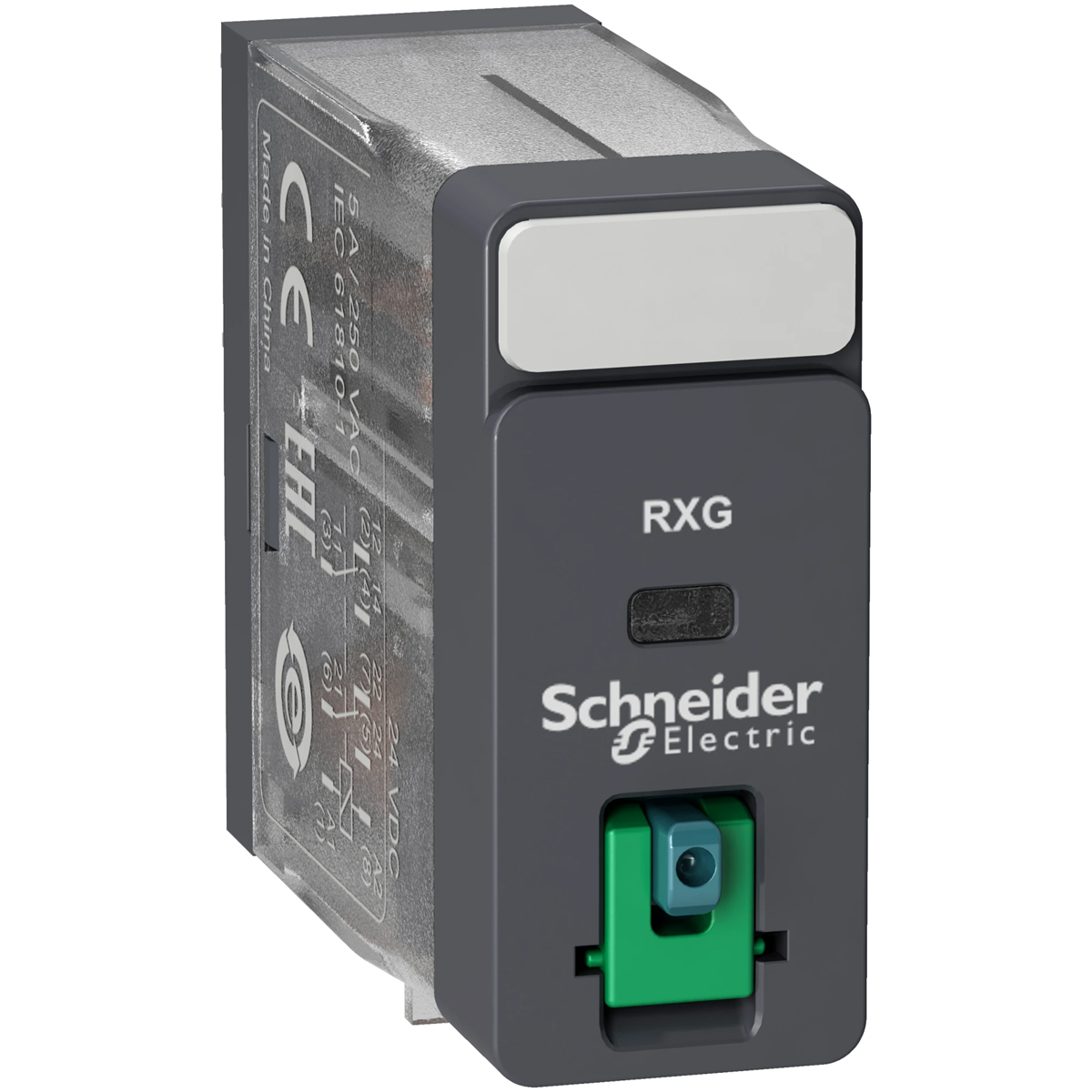

Zelio Relay Interface relay with test button 2C/O 5A 24VDC RXG21BD

local index:
APE052SCHN
Catalog No:
RXG21BD
EAN code:
3606480689062
Manufacturer: SCHNEIDER ELECTRIC
ambient temperature [°C]: From -40 to 85
Price:
5,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Zelio Relay Interface relay with test button 2C/O 5A 24VDC

Technical data

  • ambient temperature [°C]
    From -40 to 85
  • PKWIU
    27.11.61.0

Other technical data

  • Type of electric connection
    Flat plug-in connection
  • Nominal current
    5 A
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • With forced-guided contacts
    Yes
  • Complete with socket
    No
  • Degree of protection (IP)
    IP40
  • Height
    34.5 mm
  • With detachable clamps
    No
  • Rated control supply voltage DC
    24 ... 24 V
  • Drive, polarization
    Polarized
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    2
  • Type of switch contact
    Single contact
  • With LED indication
    No
  • Width
    13 mm
  • Depth
    28.8 mm
