Zelio Relay 2C/O 8A 48VAC interface relay RSB2A080E7

local index:
APE221SCHN
Catalog No:
RSB2A080E7
EAN code:
3389110255959
Manufacturer: SCHNEIDER ELECTRIC
Control voltage [V]: 48
Rated current [A]: 8
Price:
10,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

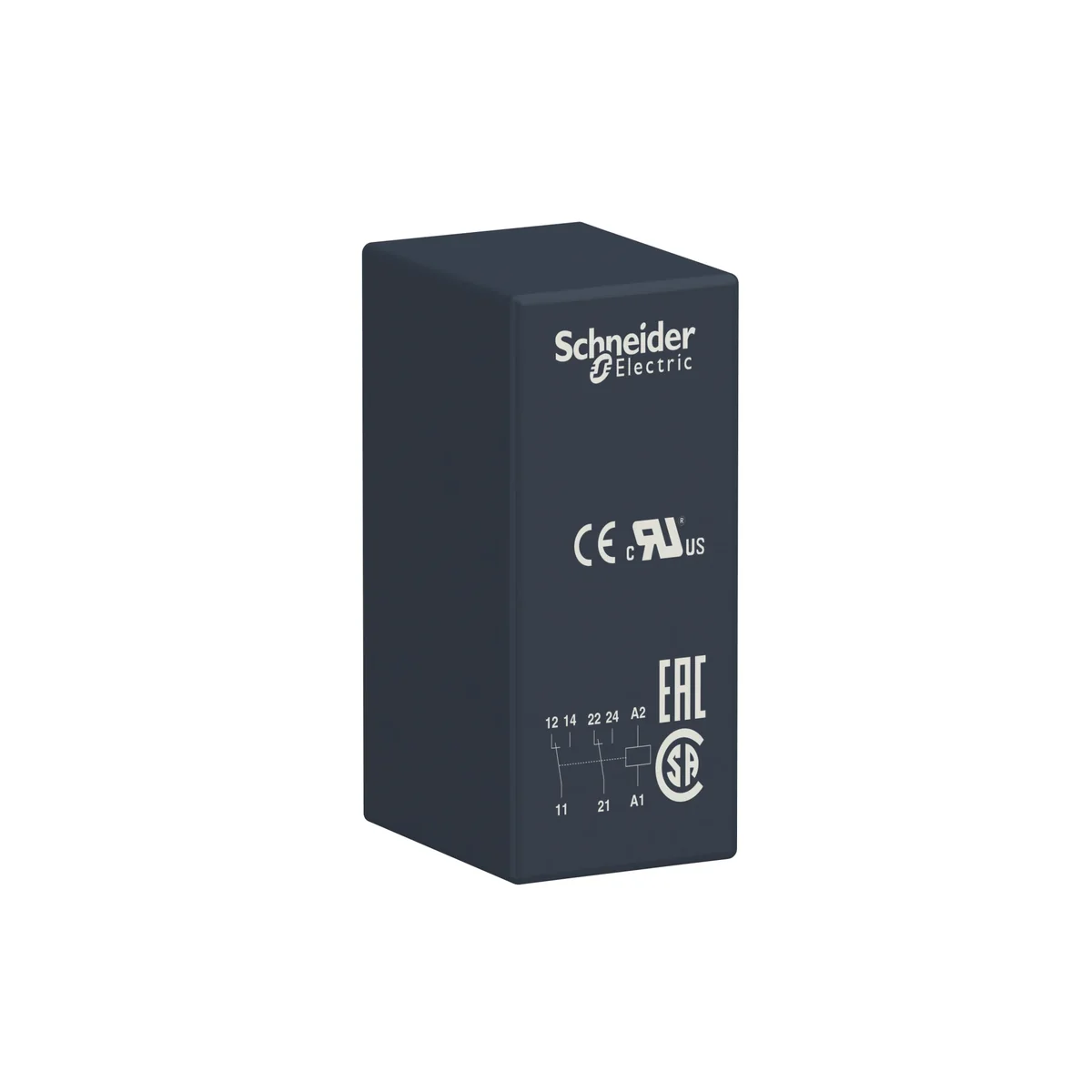

Zelio Relay 2C/O 8A 48VAC interface relay

Technical data

  • Control voltage [V]
    48
  • PKWIU
    27.11.61.0
  • Rated current [A]
    8

Other technical data

  • Type of electric connection
    Plug-in connection
  • Nominal current
    8 A
  • Rated control supply voltage AC 60 Hz
    48 ... 48 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    2
  • Type of switch contact
    Double contact
  • With LED indication
    No
  • Width
    12.5 mm
  • Depth
    19.6 mm
  • With detachable clamps
    Yes
  • Rated control supply voltage AC 50 Hz
    48 ... 48 V
  • Voltage type for actuating
    AC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • With forced-guided contacts
    Yes
  • Complete with socket
    No
  • Degree of protection (IP)
    IP40
  • Height
    29 mm
