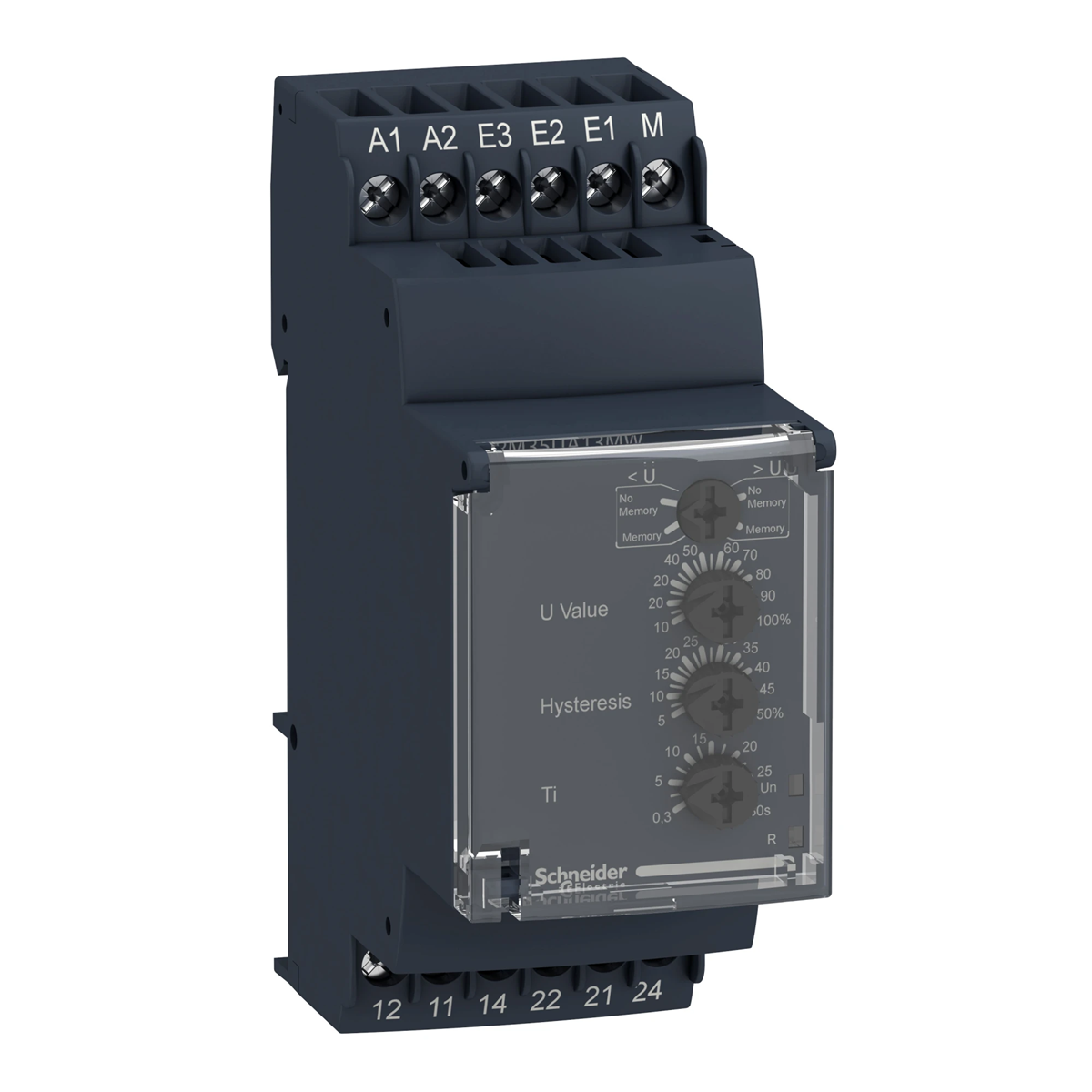

Zelio Control Multifunctional voltage control relay 1/100V 5A 2C/O RM35UA12MW

local index:
API159SCHN
Catalog No:
RM35UA12MW
EAN code:
3389119405300
Manufacturer: SCHNEIDER ELECTRIC
Width [mm]: 35
Price:
188,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Zelio Control Multifunctional voltage control relay 1/100V 5A 2C/O

Technical data

  • Width [mm]
    35
  • PKWIU
    27.11.61.0

Other technical data

  • Type of electric connection
    Screw connection
  • Single-phase under voltage possible
    Yes
  • Single-phase over voltage possible
    Yes
  • Single-phase hysteresis possible
    No
  • Contains function DC-under voltage
    Yes
  • Contains function DC-voltage hysteresis
    No
  • Type of voltage measuring range
    AC
  • Rated control supply voltage AC 60 Hz
    24 ... 240 V
  • Voltage type for actuating
    AC/DC
  • Min. adjustable off-delay time
    0.3 s
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    2
  • Height
    90 mm
  • With detachable clamps
    No
  • Three-phase under voltage possible
    No
  • Three-phase over voltage possible
    No
  • Three-phase hysteresis possible
    No
  • Contains function DC-over voltage
    Yes
  • Voltage measuring range 1
    1 ... 100 V
  • Rated control supply voltage AC 50 Hz
    24 ... 240 V
  • Rated control supply voltage DC
    24 ... 240 V
  • Response value voltage
    1 ... 100 V
  • Max. permitted off-delay time
    30 s
  • Number of contacts as normally open contact
    0
  • Width
    35 mm
  • Depth
    72 mm
