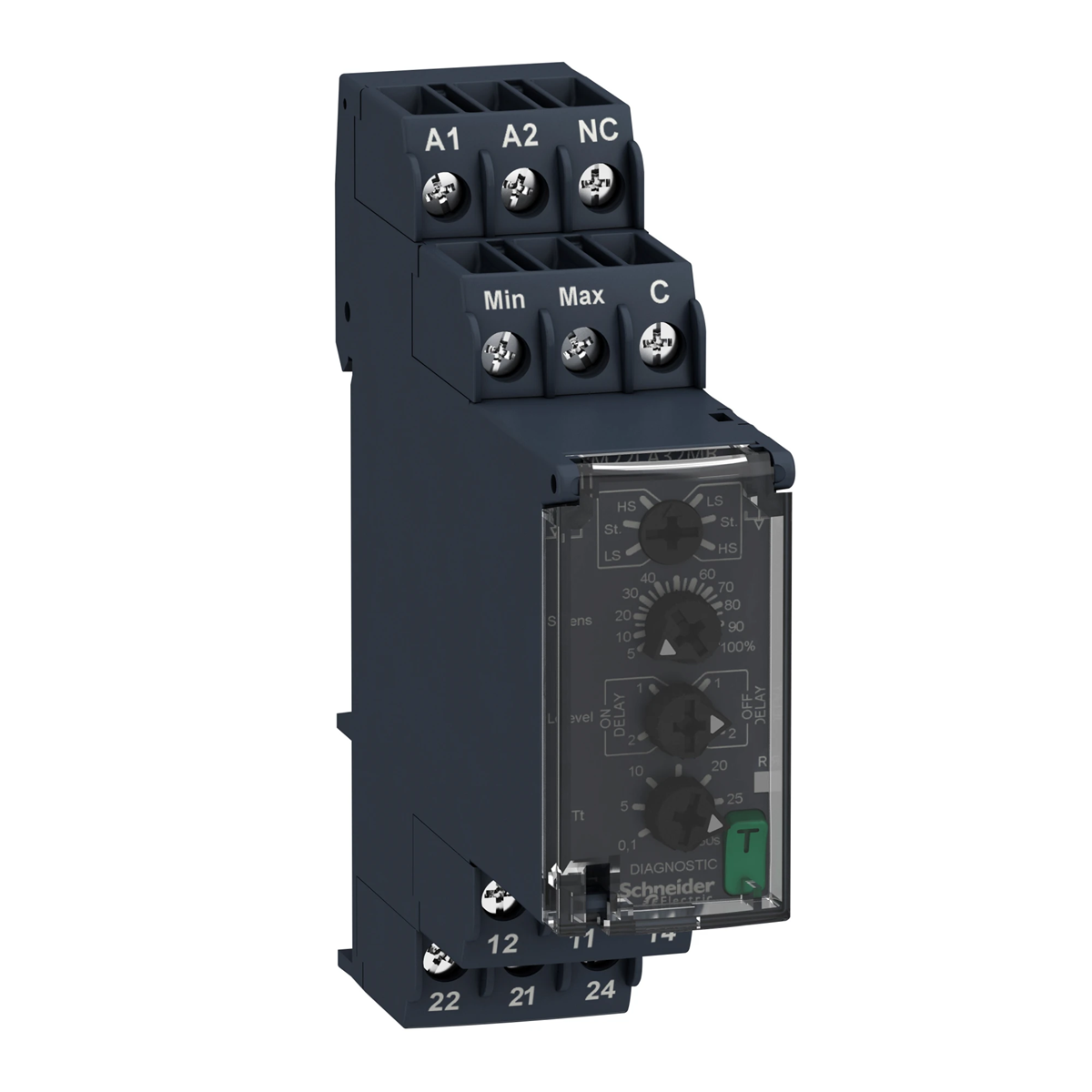

Zelio Control Level control relay 250 OHM/1 MOHM contact 2C/O 8A RM22LA32MR
local index:
APE042SCHN
Catalog No:
RM22LA32MR
EAN code:
3606480792342
Manufacturer:
SCHNEIDER ELECTRIC
Width [mm]: 22.5
Price:
116,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Zelio Control Level control relay 250 OHM/1 MOHM contact 2C/O 8A
Technical data
-
Width [mm]22.5
-
PKWIU27.11.61.0
Other technical data
-
Type of electric connectionScrew connection
-
Rated control supply voltage AC 60 Hz24 ... 240 V
-
Voltage type for actuatingAC/DC
-
Number of inputs for electrodes3
-
Max. permitted operate delay time30 s
-
Max. permitted off-delay time30 s
-
Number of contacts as normally closed contact2
-
Number of contacts as change-over contact2
-
CascadableNo
-
Height90 mm
-
Rated control supply voltage AC 50 Hz24 ... 240 V
-
Rated control supply voltage DC24 ... 240 V
-
With detachable clampsNo
-
Min. adjustable operate delay time0.1 s
-
Min. adjustable off-delay time0.1 s
-
Response value sensitivity adjustableYes
-
Number of contacts as normally open contact0
-
Physical measurement principleConductive
-
Width22.5 mm
-
Depth73 mm
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Tax identification number5220011965
Files to download
