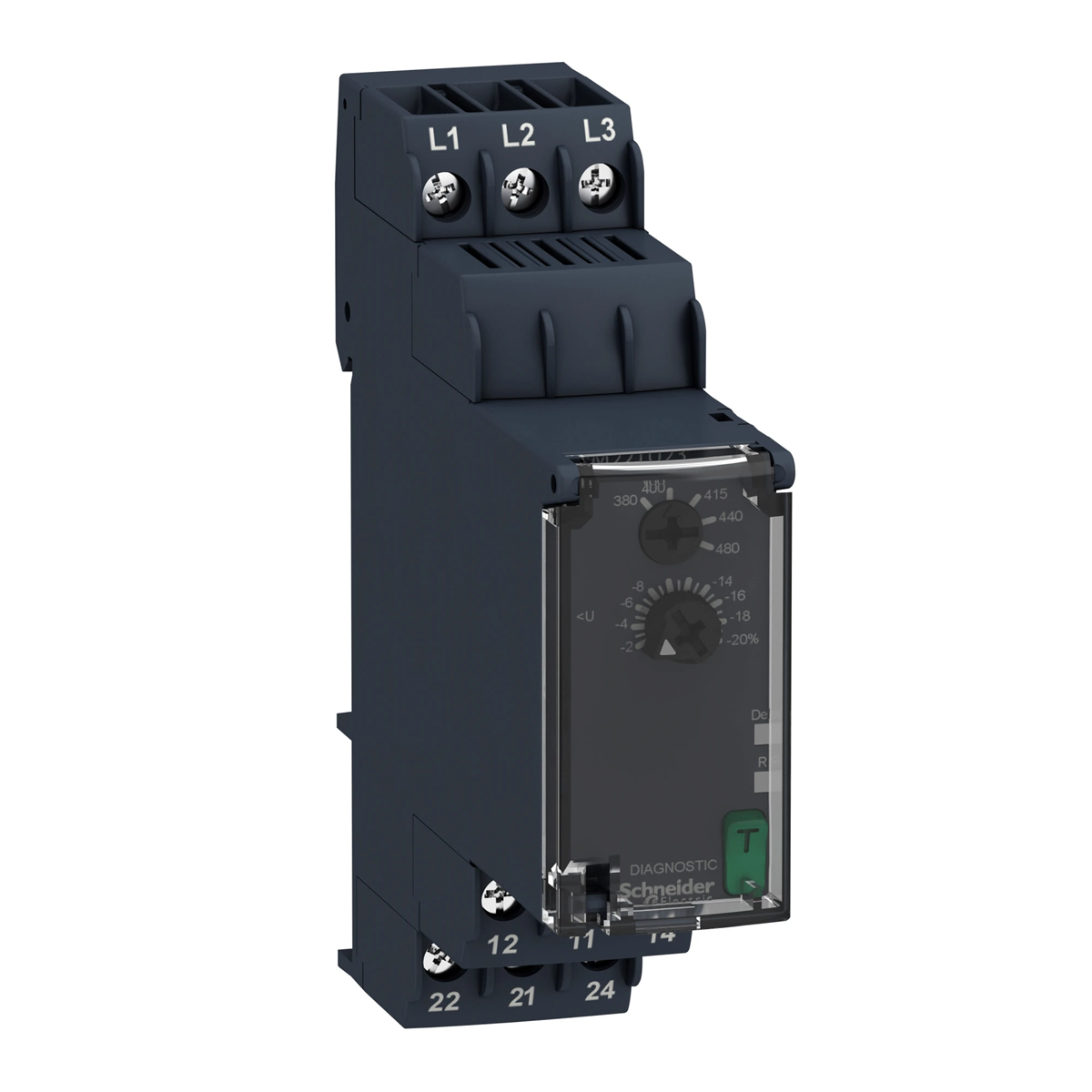

Zelio Control 3-phase control relay 304 576VAC 2C/O contact RM22TU23

local index:
APN009SCHN
Catalog No:
RM22TU23
EAN code:
3606480792175
Manufacturer: SCHNEIDER ELECTRIC
Width [mm]: 22.5
Price:
148,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Zelio Control 3-phase control relay 304 576VAC 2C/O contact

Technical data

  • Width [mm]
    22.5
  • PKWIU
    27.11.61.0

Other technical data

  • Type of electric connection
    Screw connection
  • Rated control supply voltage AC 50 Hz
    380 ... 480 V
  • Voltage type for actuating
    AC
  • Phase failure detection
    Yes
  • Function over voltage detection
    No
  • Voltage measuring range
    304 ... 576 V
  • Number of contacts as normally open contact
    0
  • Width
    22.5 mm
  • Depth
    73 mm
  • With detachable clamps
    No
  • Rated control supply voltage AC 60 Hz
    380 ... 480 V
  • Phase sequence monitoring
    Yes
  • Function under voltage detection
    Yes
  • Phase imbalance monitoring
    No
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    2
  • Height
    90 mm
