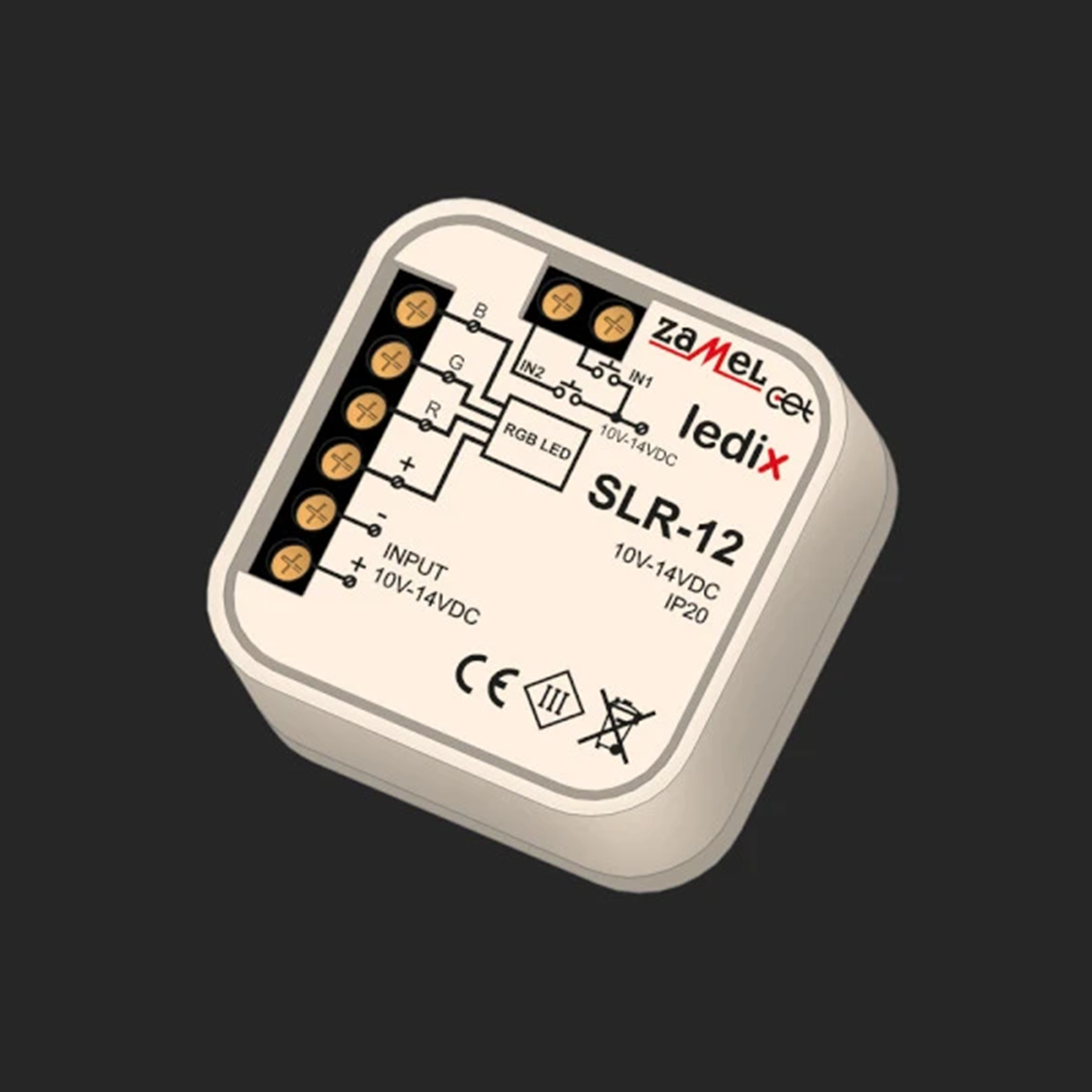

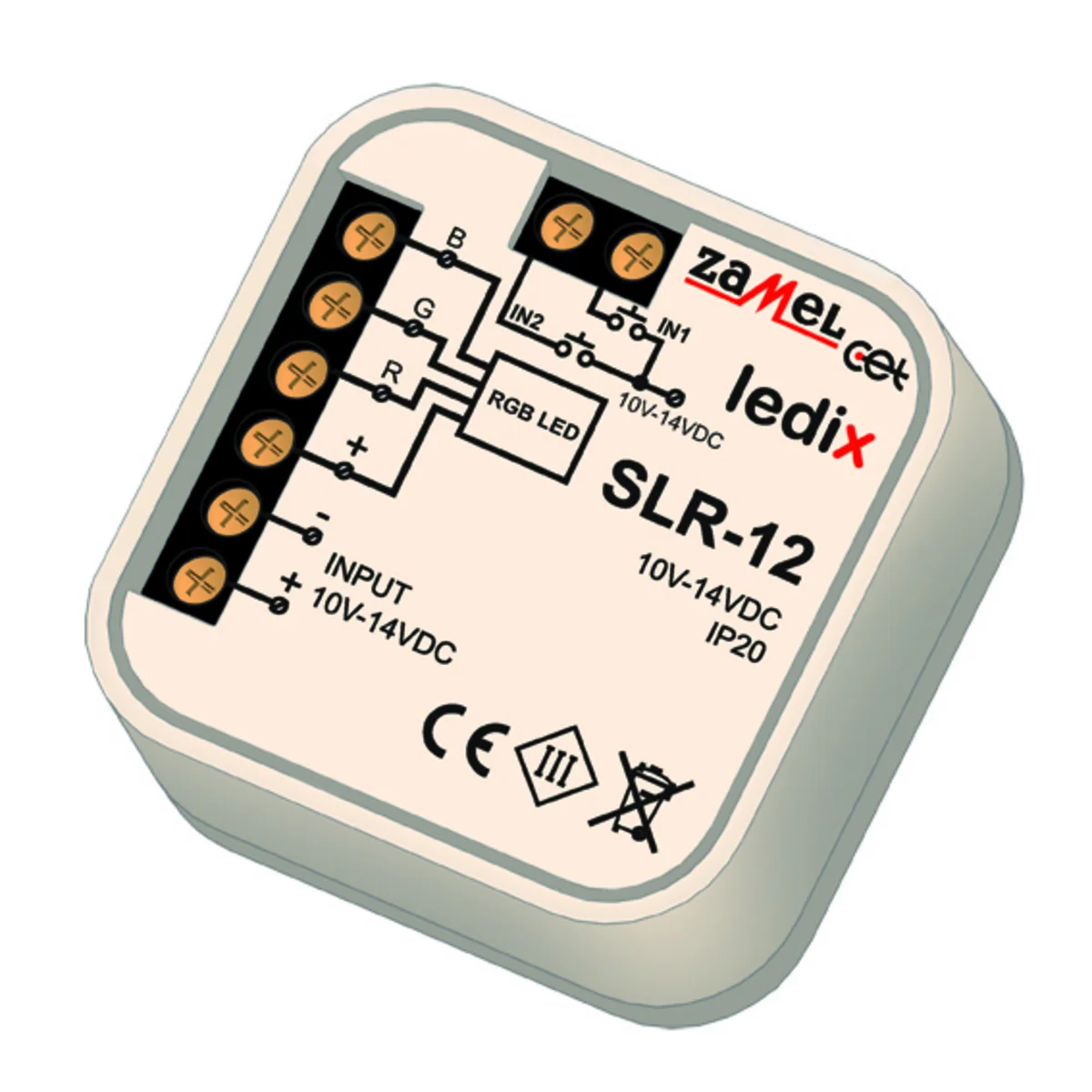

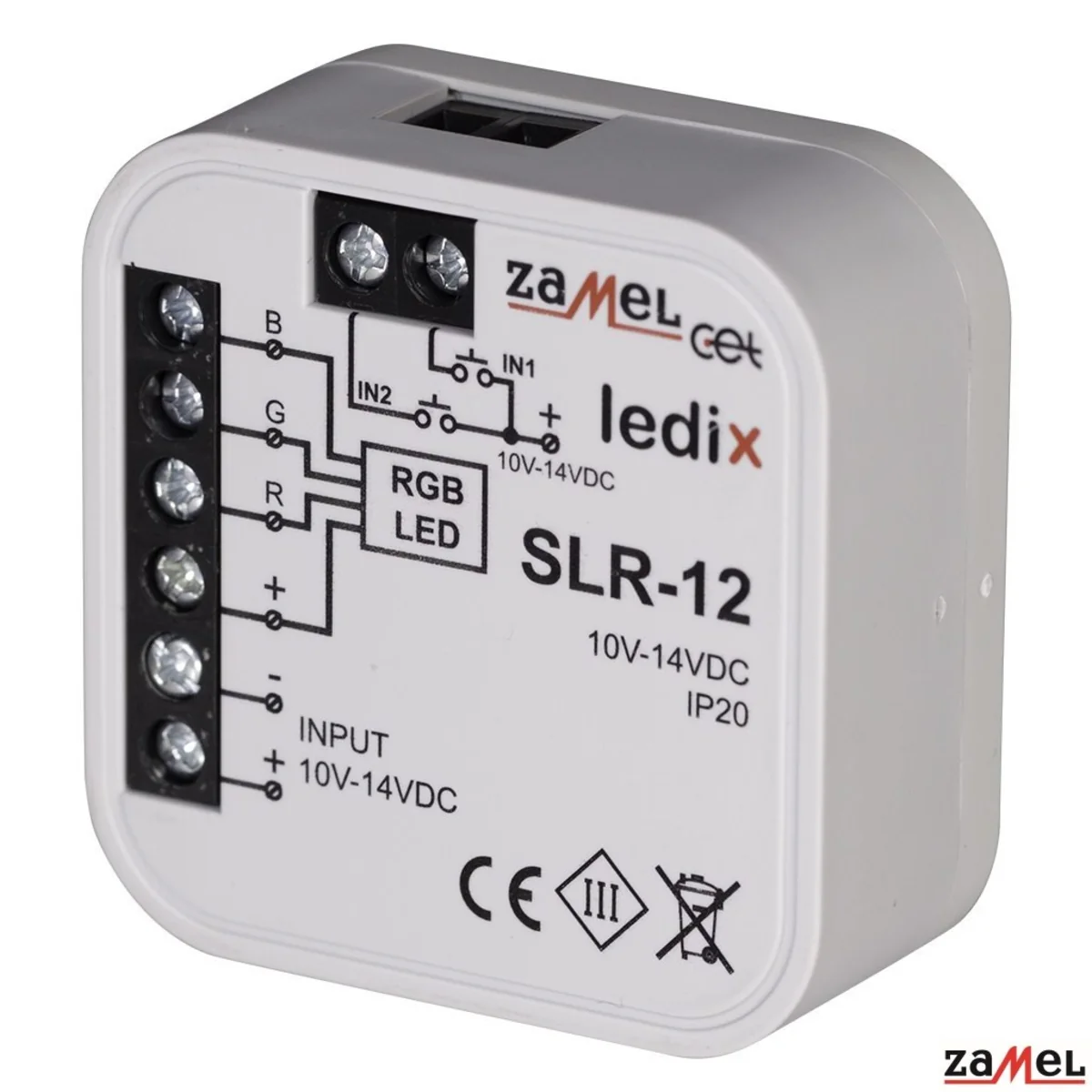

Wired RGB controller LDX10000008-WPL

The RGB SLR-12 controller is designed to control RGB LEDs in a common "+" system (RGB strips and modules, LEDIX RGB luminaires). The control is done by means of wired buttons connected to inputs IN1, IN2. By default, the controller is equipped with 3 LED control programs. The user can choose from 10 factory-set LED colors with the possibility of smooth brightening/dimming. There is also a smooth, automatic color change program (FLOATING) with a change time set in 10 steps. Color control is carried out using PWM modulation with a resolution of 9-bit. The small dimensions of the controllers enable their direct installation in a standard box Ø=60 mm.
