Wind sensor STR-W
local index:
APT005FIFQ
Catalog No:
STR-W
EAN code:
5908312597766
Price:
128,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

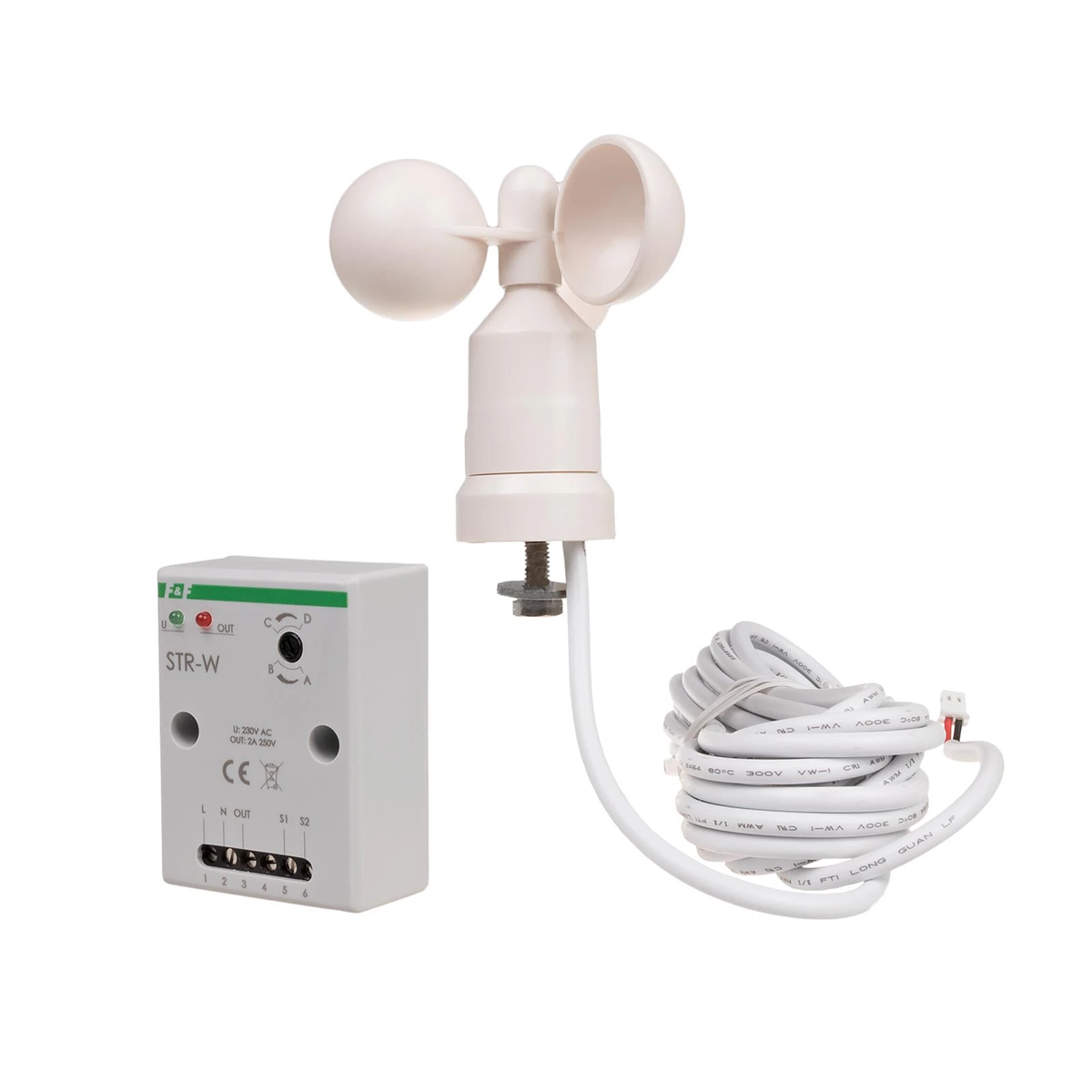

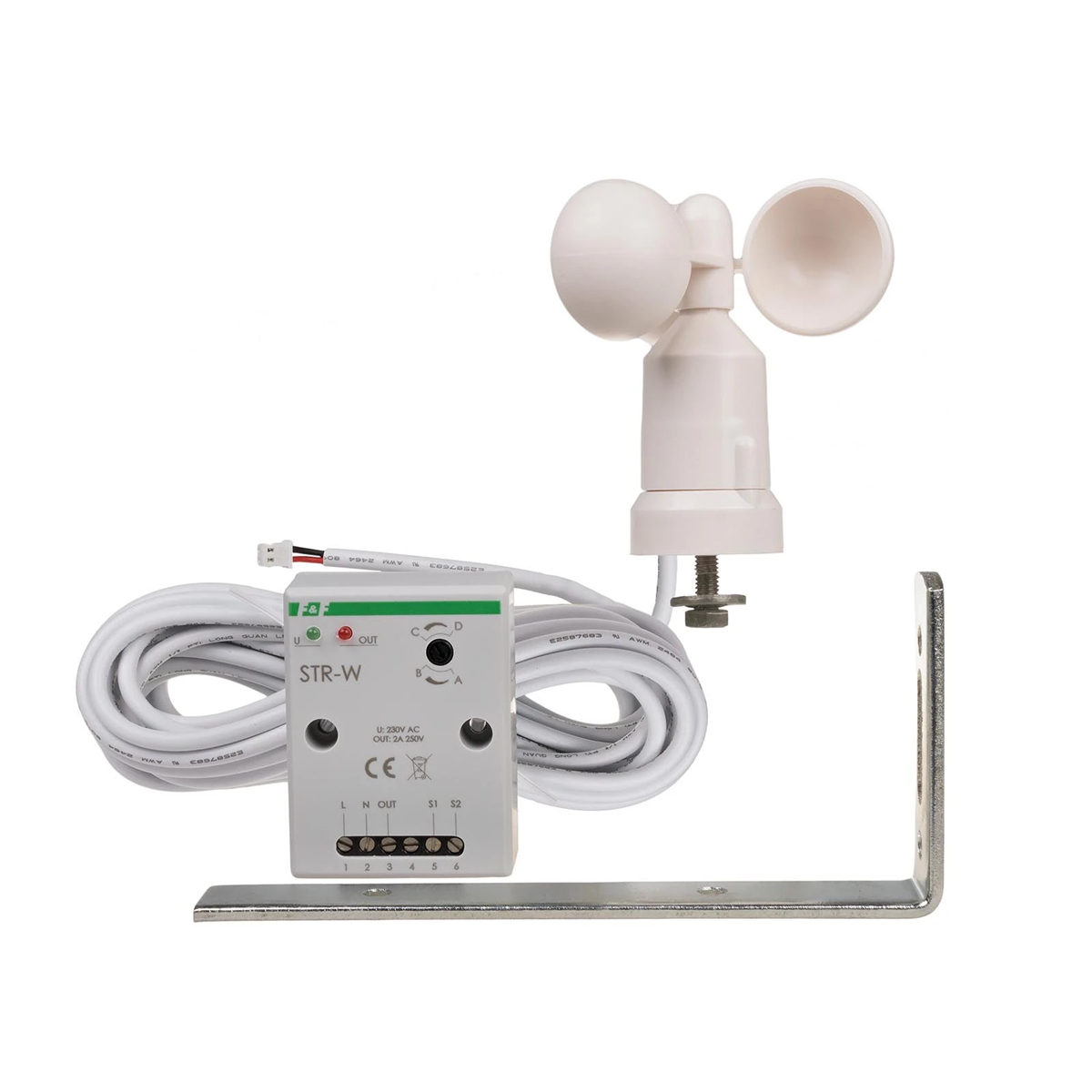

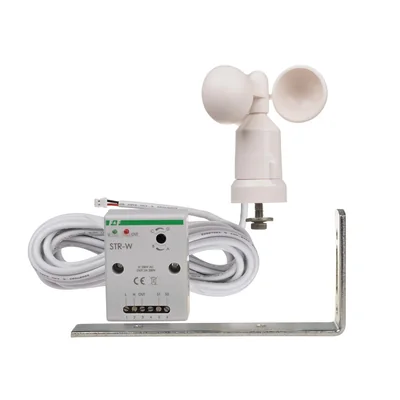

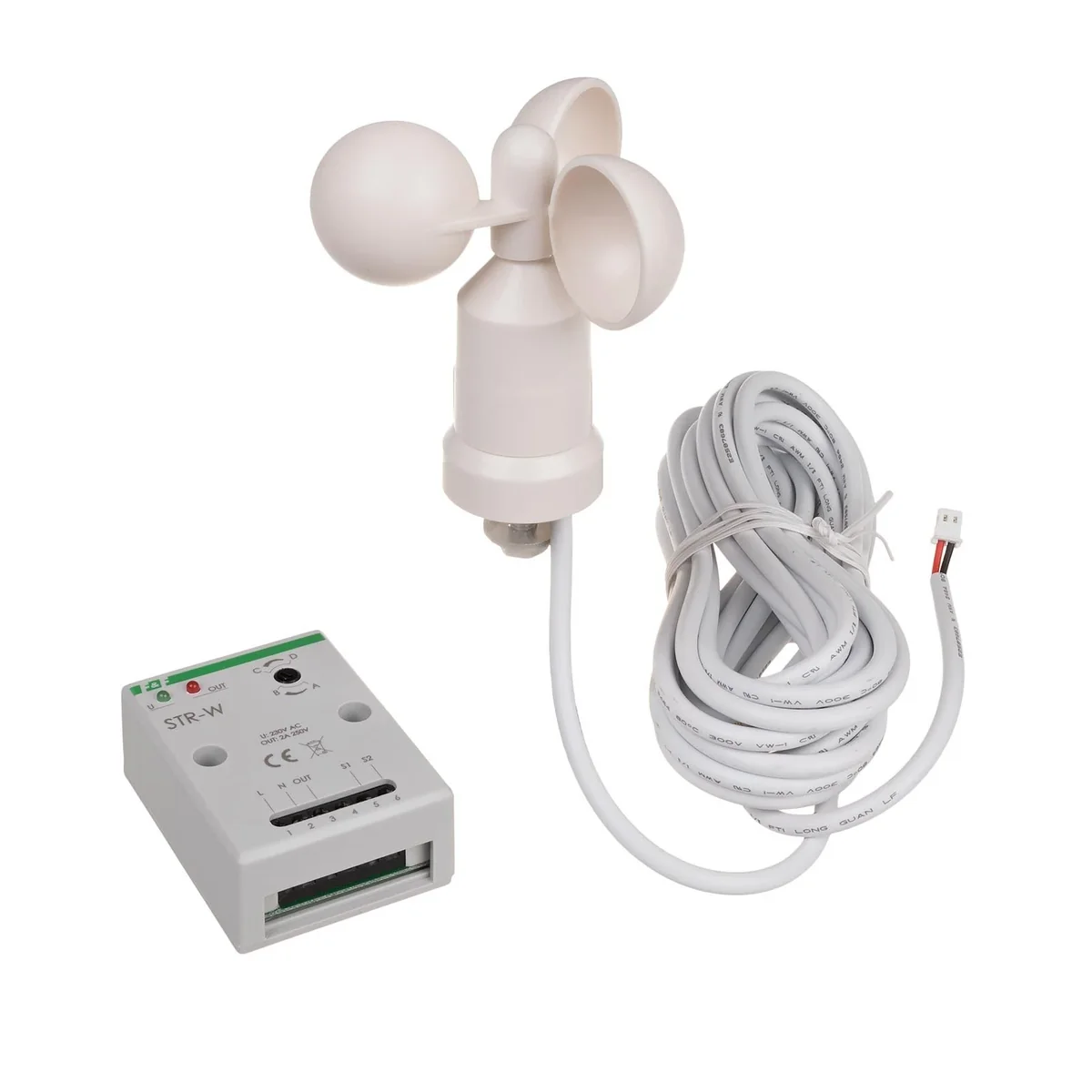

The STR-W controller with an external wind sensor is designed to monitor the current wind speed. If the wind speed exceeds the set threshold value, the internal relay will be activated. In combination with the STR-3 or STR-4 roller shutter controllers, it enables the construction of a system in which window roller shutters or awnings are rolled up in case of too strong wind.
Technical data
-
Maximum current [A]2
-
Working temperature [°C]-15-50
-
Package height [mm]120
-
Package weight [kg]0.5
-
Power consumption in operating mode [W]<0.6
-
The degree of protection of the controllerIP20
-
SignalingLED green/red
-
Power [V]100-265
-
Package width [mm]150
-
Windmill protection degreeIP65
-
Standby power consumption [W]<0.2
-
PKWIU27.12.24.0
Other technical data
-
ModelWind sensor
-
Nominal voltage265 V
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,480 |
| Width (m) | 0,103 |
| Length (m) | 0,215 |
| Depth (m) | 0,075 |
