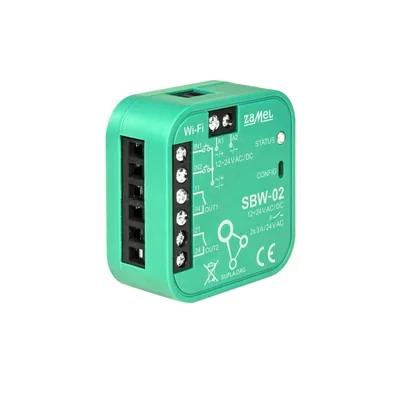

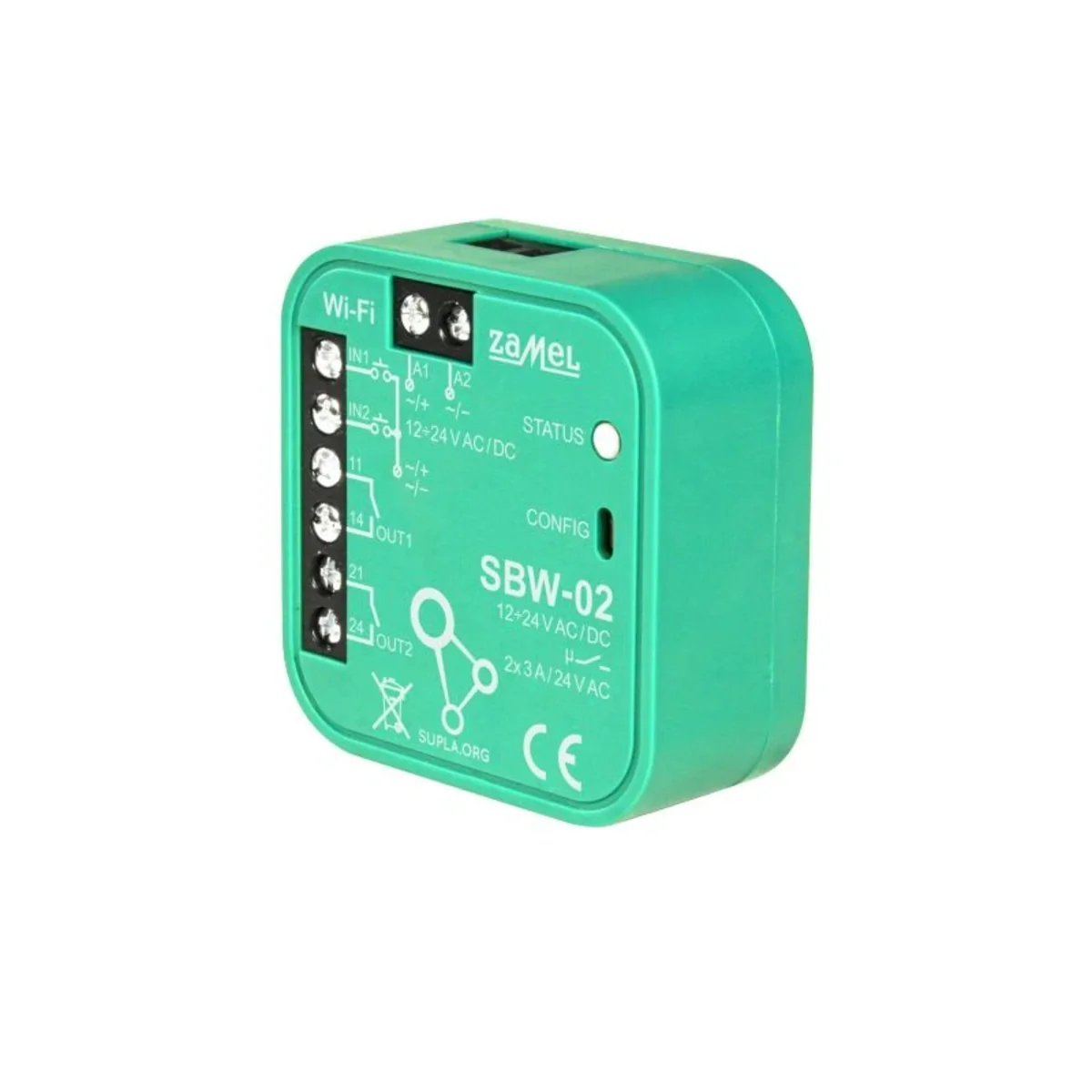

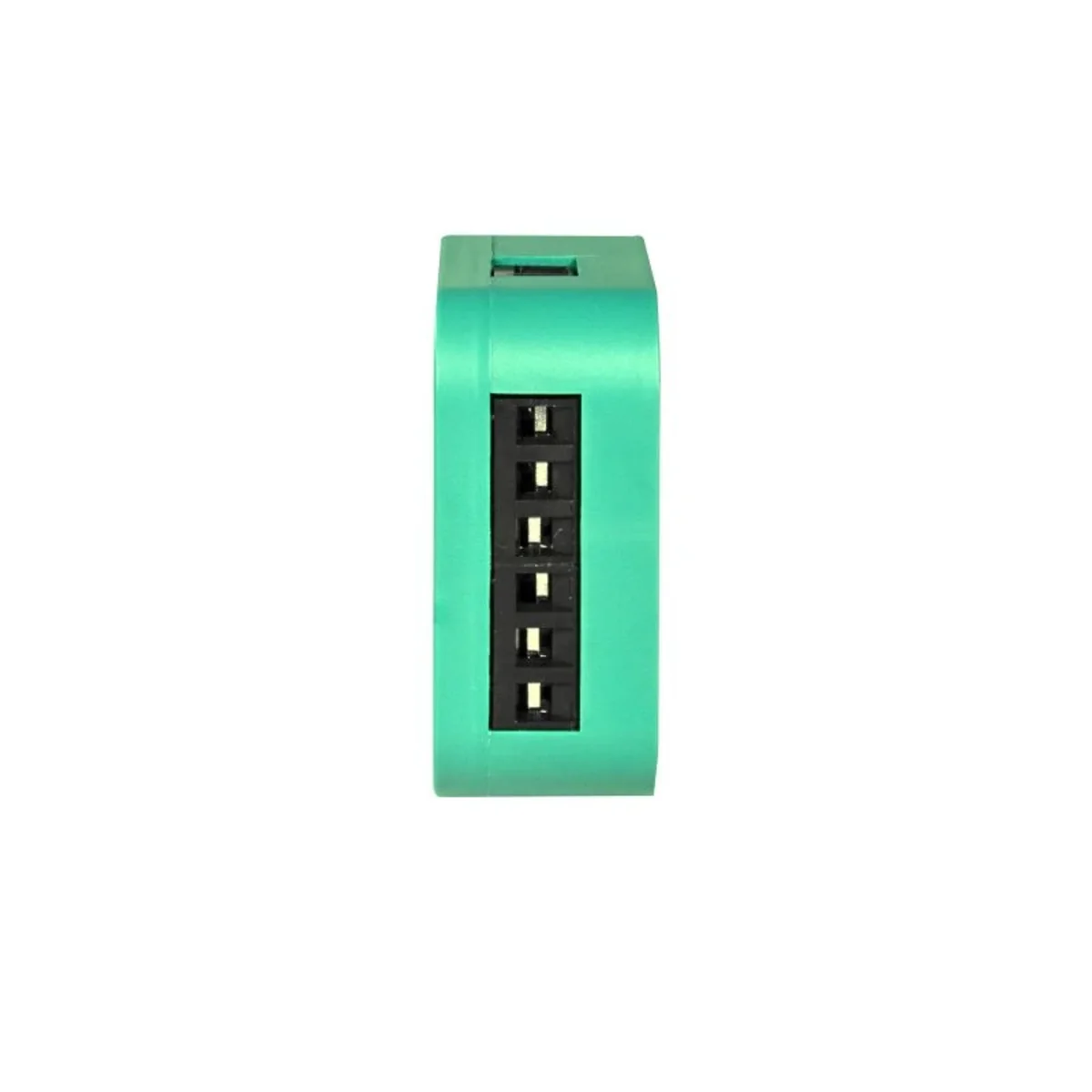

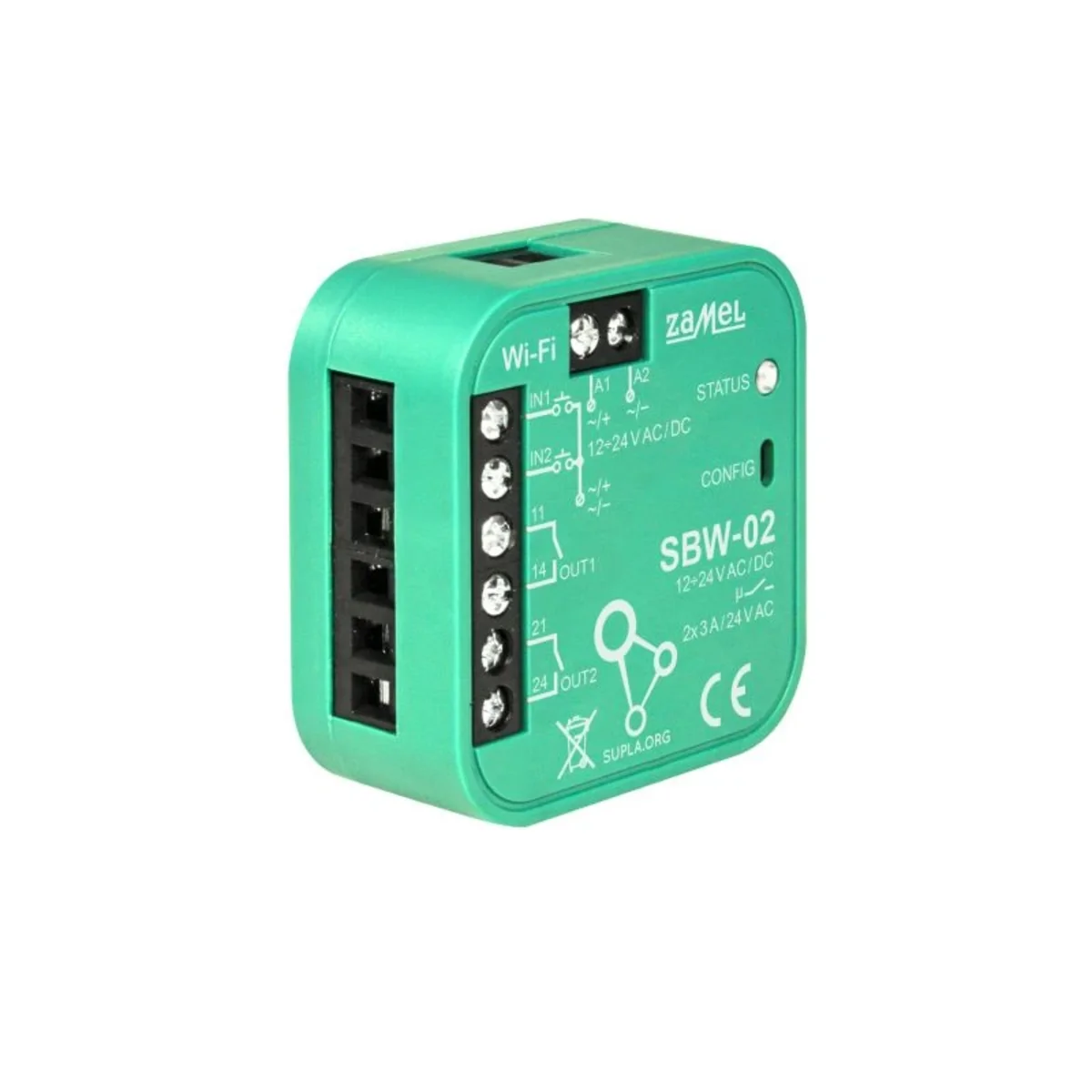

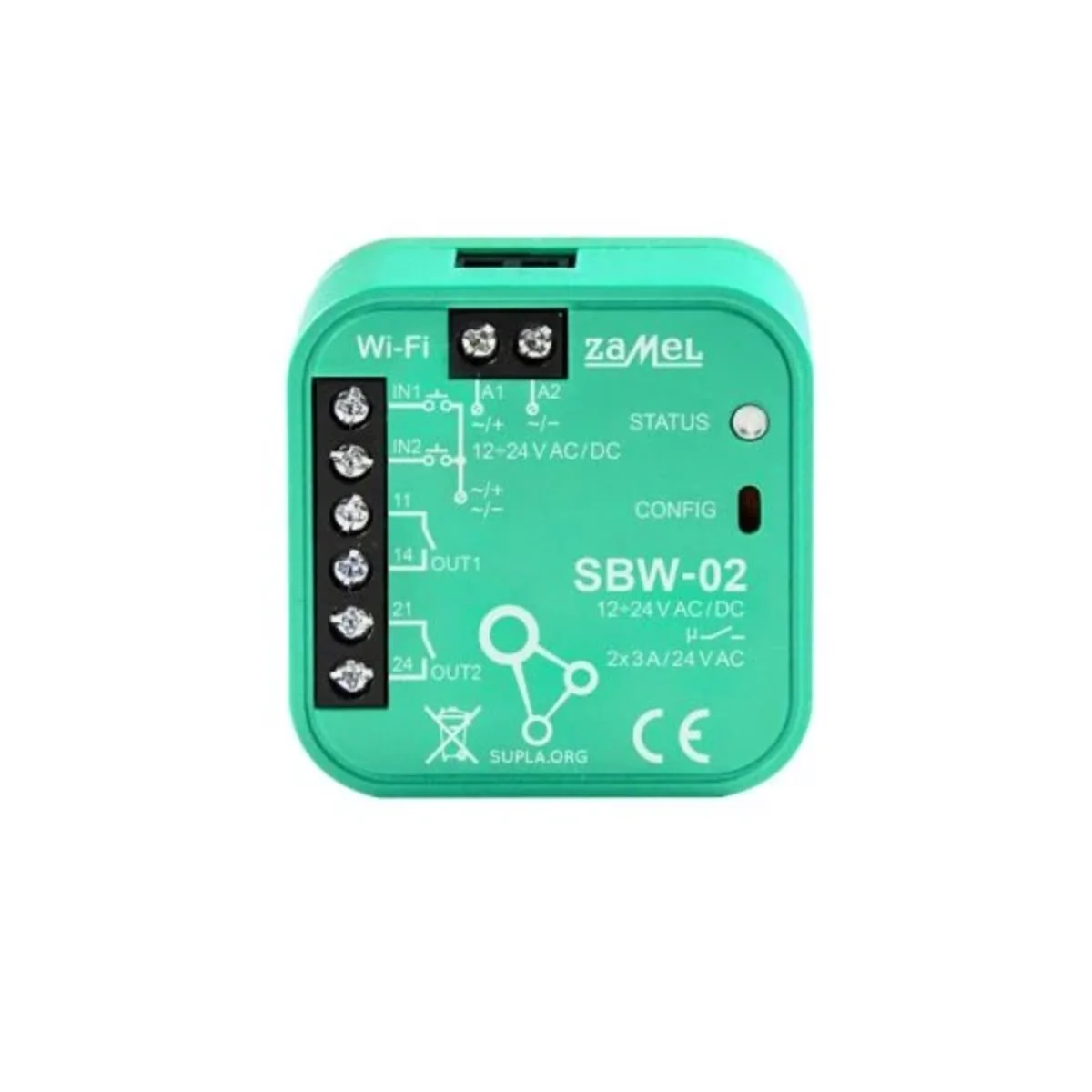

WI-FI gate controller 2-channel 12/24V 3A 0.6W SPL10000019-WUN

Índice local:
APS019ZAME
Número de catálogo:
SPL10000019-WUN
Código EAN:
5903669347507
Fabricante: ZAMEL
Rated frequency [Hz]: 50-60
Number of inputs: 2
Number of changeover contacts: 2 x NO
Precio:
243,69 zł
gross / uds.
(IVA incluido 23%)
6092,25 zł gross/kg.
Entrega en 3h
Accesible 19 uds.
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

The gate controller allows for integration with any gate or wicket door operator and enables remote gate control via the Supla mobile app. The device is designed for installation directly into the drive. Thanks to its universal 12-24 V AC/DC power supply, it can be used in a variety of applications. By connecting signals from limit switches to the controller's inputs, we receive information about the gate/wicket opening and closing.

Datos técnicos

  • Rated frequency [Hz]
    50-60
  • Number of changeover contacts
    2 x NO
  • Fixing
    gate drive or installation box Ø 60 mm
  • Power consumption [W]
    0.6
  • Family
    SBW
  • Transmission
    WIFI
  • Dimensions
    47.5 x 47.5 x 20 mm
  • Minimum operating temperature [°C]
    -20
  • Radio transmitter power [mW]
    <20
  • Number of inputs
    2
  • Maximum operating temperature [°C]
    55
  • Rated voltage [V]
    12/24
  • Rated current [A]
    3
  • Level of security
    IP20
  • Weight [g]
    40
  • Connection terminals
    8
  • Maximum conductor cross-section [mm²]
    2.5
