Weekly timer NFC 1P 16A IP20 24V AC/DC 126100240000
local index:
APR002FIND
Catalog No:
126100240000
EAN code:
8012823417561
Manufacturer:
FINDER
Contact material: AgSnO2
Installation: On the TH-35 rail
AC coil voltage [V]: 12-24
Price:
95,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

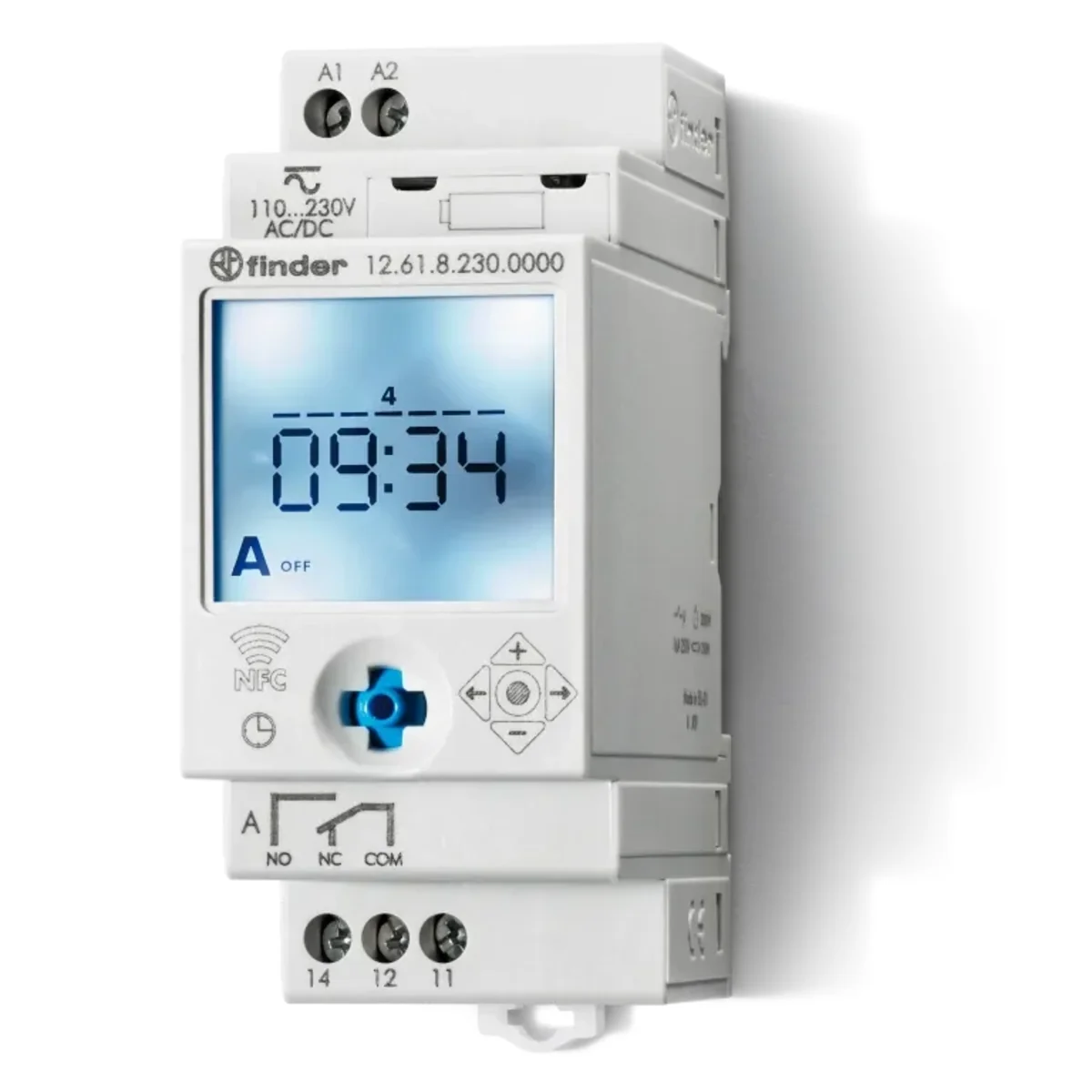

Electronic weekly timer
Features:
- Programmable in "Classic" mode using the joystick or in “Smart” via NFC-enabled smartphones
- Functions:
- Turn ON
- Turn OFF
- Pulse output function: 1s…59 min
- European summer/winter time, Australian time, Brazilian time
- LCD display, adjustable and programmable
- 4 lock -digital PIN
- Backlit display
- Internal battery for programming and adjustment without power connection, easy replacement from the front
- Safe separation between power and contact
- Cadmium-free contact material
Technical data
-
Contact materialAgSnO2
-
AC coil voltage [V]12-24
-
Rated voltage [V]230
-
Power consumption [VA]2.8
-
Rated current [A]16
-
Level of securityIP20
-
TypeWeekly
-
Battery life [years]6
-
Type of coil voltageAC/DC
-
Rated switching power for AC1 [VA]4000
-
Electrical durability AC1 [number of cycles]100000
-
Accuracy [s/day]1
-
Number of time programs50
-
InstallationOn the TH-35 rail
-
DC coil voltage [V]12-24
-
Overvoltage resistance [kV]4
-
Power consumption [W]0.9
-
Family12
-
Width [number of modules]2
-
Rated inrush current [A]thirty
-
Number of contacts1P
-
Rated AC switching voltage [V]400
-
Rated switching power for AC15 (230V AC) [VA]750
-
Minimum setting time [min]1
-
Battery typeCR 2032
Manufacturer details
-
ManufacturerFINDER Polska Sp. z o.o.
-
Address62-080 Sady Logistyczna 27
-
E-mail
-
Tax identification number7792442331
-
GLN5907222322000
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,119 | 0,675 |
| Width (m) | 0,095 | 0,245 |
| Length (m) | 0,045 | 0,100 |
| Depth (m) | 0,080 | 0,100 |
