Weekly timer ASTRO NFC 2P 16A IP20 24V AC/DC 12A200240000

local index:
APR009FIND
Catalog No:
12A200240000
EAN code:
8012823416380
Manufacturer: FINDER
Contact material: AgSnO2
Installation: On the TH-35 rail
AC coil voltage [V]: 12-24
Price:
123,91 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

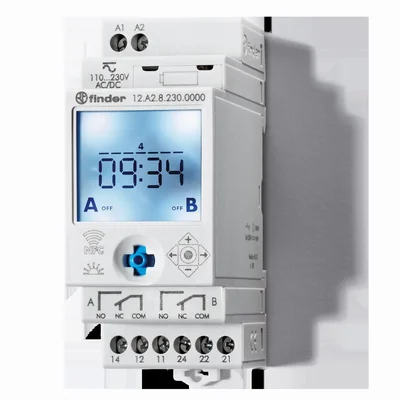

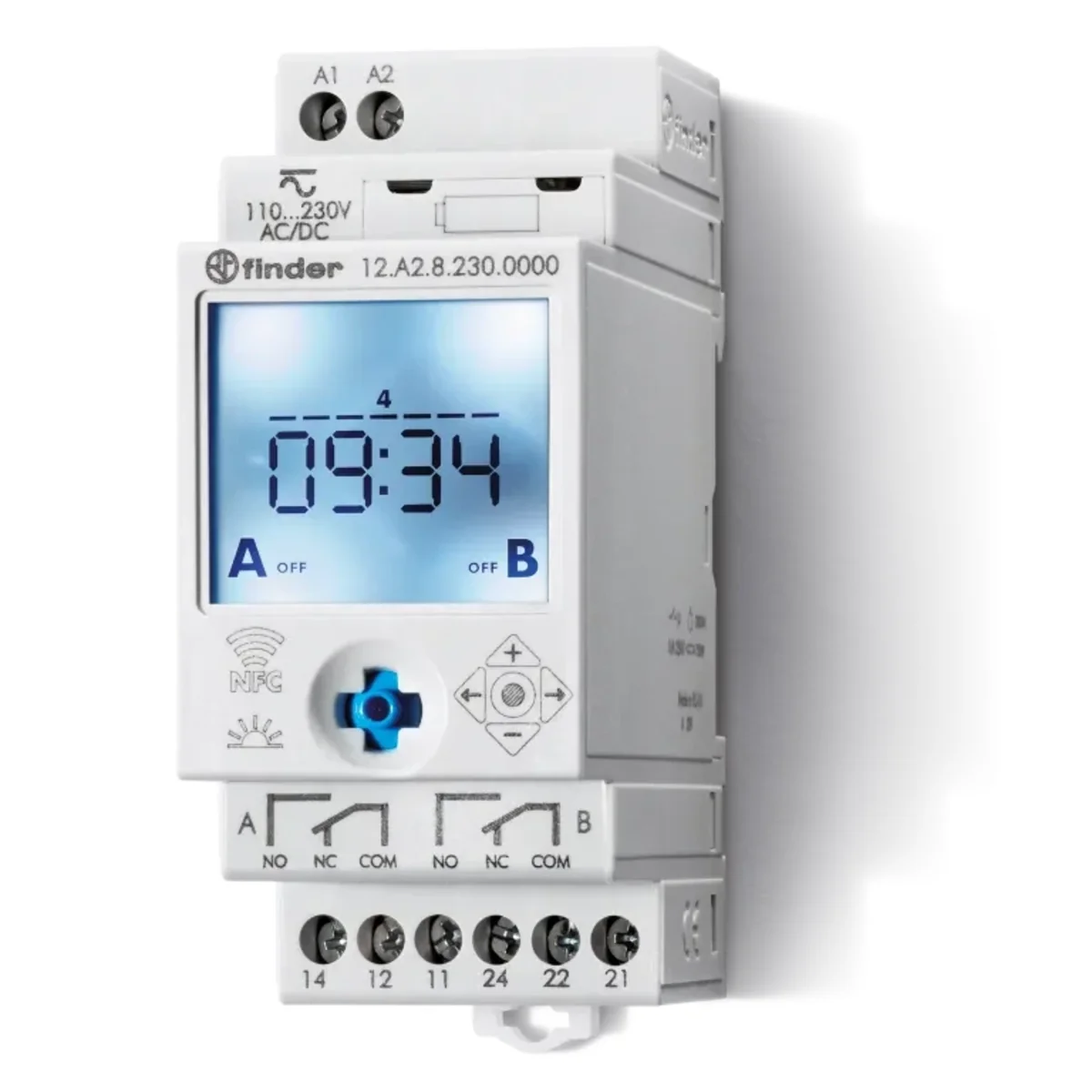

Electronic, digital, astronomical weekly control timer

Features:

  • Possibility of programming in " classic" using the joystick or in “Smart” using smartphones equipped with NFC communication
  • ASTRO software: calculation of sunrises and sunsets based on date, time and coordinates
  • Features:
    • Enable ASTRO Program
    • Disable ASTRO Program
    • Enable ON
    • Disable OFF
    • Pulse Output Function: 1s…59 min
  • Easy setting of coordinates for most European countries based on postal code
  • Delay function: allows programming of the delay time relative to astronomical time (up to 90 ;min, in 10 steps)
  • European summer/winter time, Australian time, Brazilian time
  • LCD display, adjustable and programmable
  • 4-digit lock PIN
  • Backlit display
  • Internal battery for programming and adjustment without power connection, easy replacement from the front
  • Safe separation between power and contact
  • < li>Cadmium-free contact material

Technical data

  • Contact material
    AgSnO2
  • AC coil voltage [V]
    12-24
  • Rated voltage [V]
    230
  • Power consumption [VA]
    2.8
  • Rated current [A]
    16
  • Level of security
    IP20
  • Type
    Weekly Astronomical
  • Battery life [years]
    6
  • Type of coil voltage
    AC/DC
  • Rated switching power for AC1 [VA]
    4000
  • Electrical durability AC1 [number of cycles]
    100000
  • Accuracy [s/day]
    1
  • Number of time programs
    50
  • Installation
    On the TH-35 rail
  • DC coil voltage [V]
    12-24
  • Overvoltage resistance [kV]
    4
  • Power consumption [W]
    0.9
  • Family
    12
  • Width [number of modules]
    2
  • Rated inrush current [A]
    thirty
  • Number of contacts
    2P
  • Rated AC switching voltage [V]
    400
  • Rated switching power for AC15 (230V AC) [VA]
    750
  • Minimum setting time [min]
    1
  • Battery type
    CR 2032

Manufacturer details

Bulk packaging

A kind of package Sztuka Sztuka
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,133 0,750
Width (m) 0,047 0,245
Length (m) 0,095 0,100
Depth (m) 0,092 0,100
