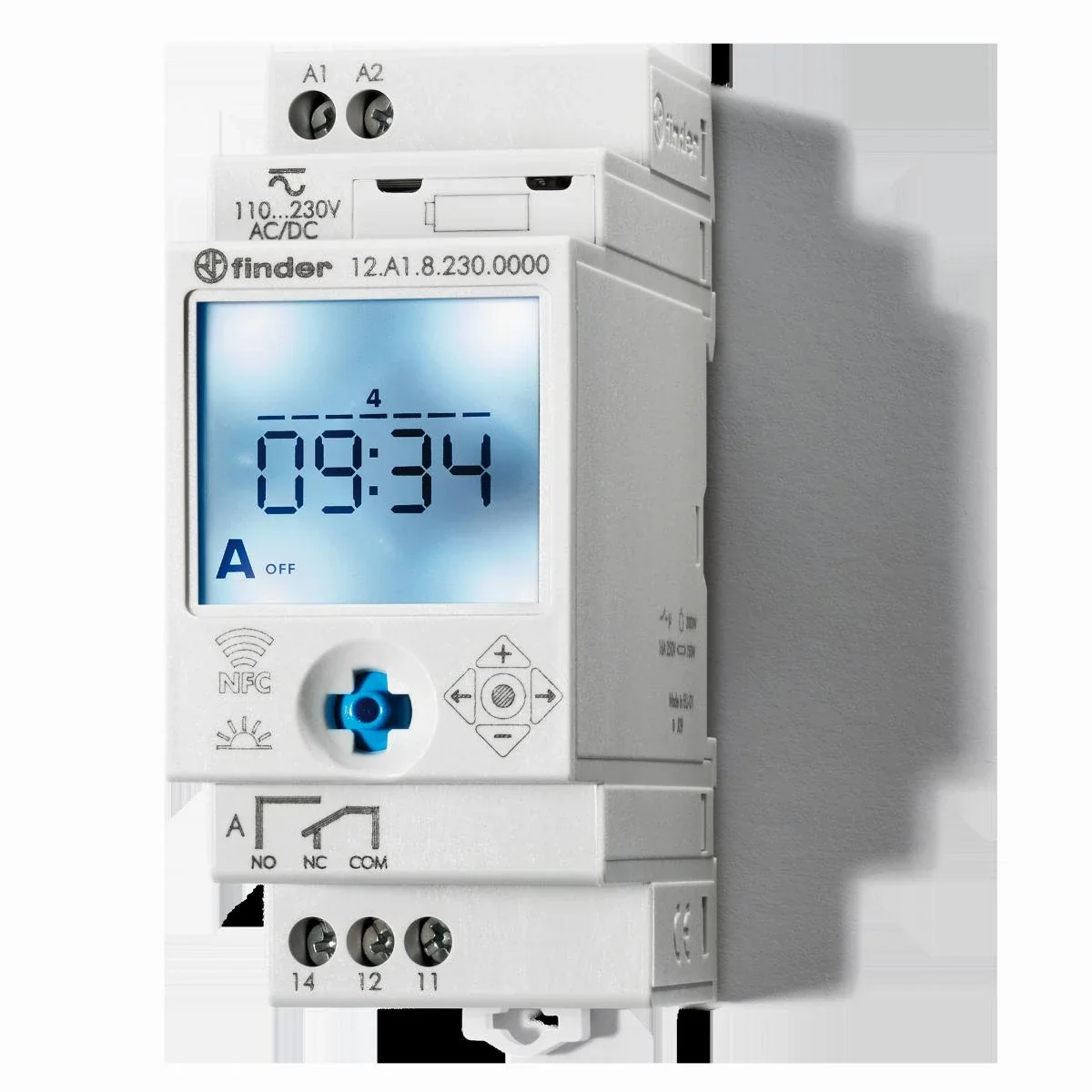

Weekly timer ASTRO NFC 1P 16A IP20 230V AC/DC 12A182300000PAS

local index:
APR003FIND
Catalog No:
12A182300000PAS
EAN code:
8012823402253
Manufacturer: FINDER
Contact material: AgSnO2
Installation: On the TH-35 rail
AC coil voltage [V]: 110-230
Price:
86,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 15 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Electronic, digital, astronomical weekly control timer

Features:

  • Possibility of programming in " classic" using the joystick or in “Smart” using smartphones equipped with NFC communication
  • ASTRO software: calculation of sunrises and sunsets based on date, time and coordinates
  • Features:
    • Enable ASTRO Program
    • Disable ASTRO Program
    • Enable ON
    • Disable OFF
    • Pulse Output Function: 1s…59 min
  • Easy setting of coordinates for most European countries based on postal code
  • Delay function: allows programming of the delay time relative to astronomical time (up to 90 ;min, in 10 steps)
  • European summer/winter time, Australian time, Brazilian time
  • LCD display, adjustable and programmable
  • 4-digit lock PIN
  • Backlit display
  • Internal battery for programming and adjustment without power connection, easy replacement from the front
  • Safe separation between power and contact
  • < li>Cadmium-free contact material

Technical data

  • Contact material
    AgSnO2
  • AC coil voltage [V]
    110-230
  • Rated voltage [V]
    230
  • Power consumption [VA]
    2.8
  • Rated current [A]
    16
  • Level of security
    IP20
  • Type
    Weekly Astronomical
  • Battery life [years]
    6
  • Type of coil voltage
    AC/DC
  • Rated switching power for AC1 [VA]
    4000
  • Electrical durability AC1 [number of cycles]
    100000
  • Accuracy [s/day]
    1
  • Number of time programs
    50
  • Installation
    On the TH-35 rail
  • DC coil voltage [V]
    110-230
  • Overvoltage resistance [kV]
    4
  • Power consumption [W]
    0.9
  • Family
    12
  • Width [number of modules]
    2
  • Rated inrush current [A]
    thirty
  • Number of contacts
    1P
  • Rated AC switching voltage [V]
    400
  • Rated switching power for AC15 (230V AC) [VA]
    750
  • Minimum setting time [min]
    1
  • Battery type
    CR 2032
