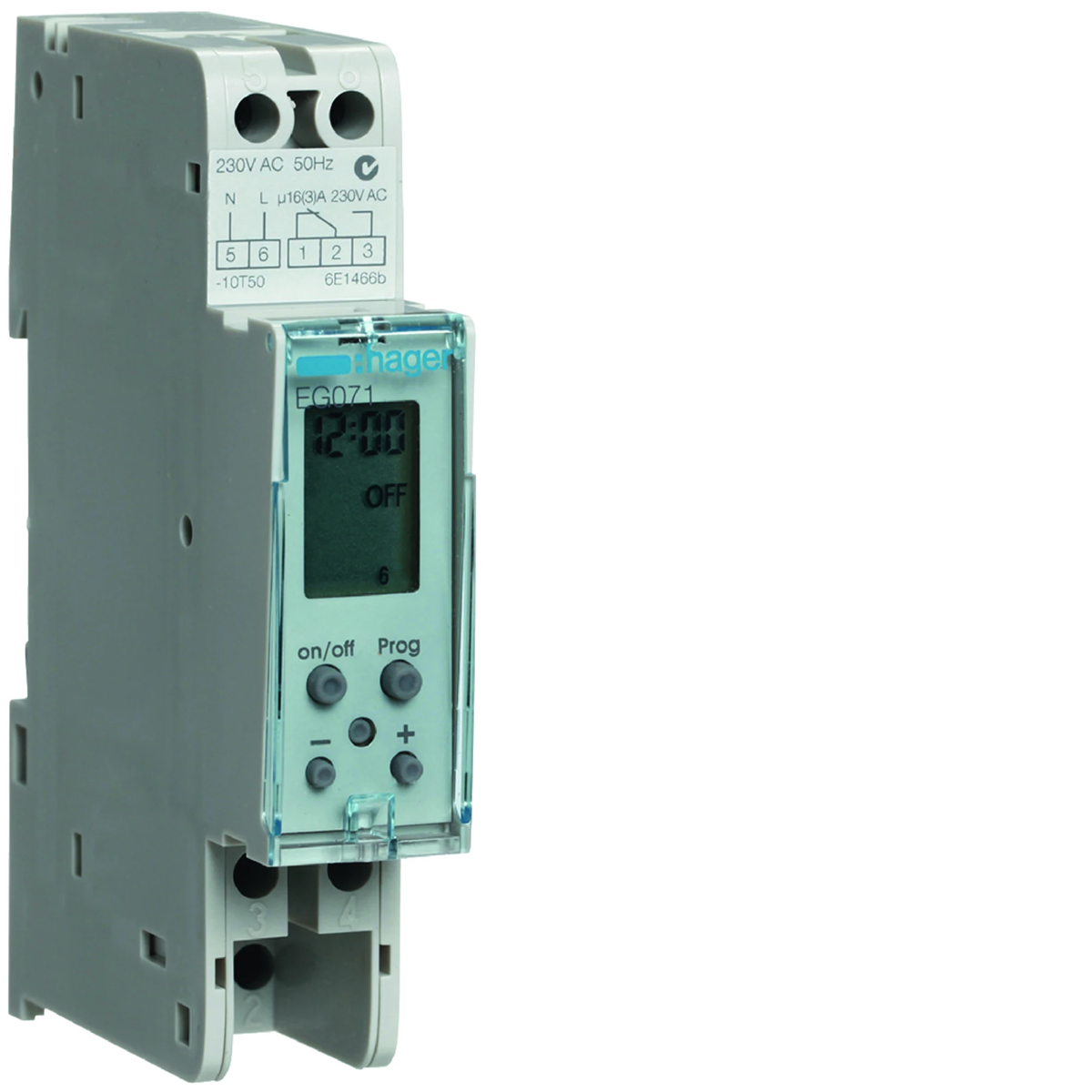

Weekly timer, 1P/16A, 1 module, digital EG071

local index:
APR001HAGE
Catalog No:
EG071
EAN code:
3250612270712
Manufacturer: HAGER
Number of modules: 1
Number of programs: 20
Shortest switching time [min]: 1
Price:
95,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Weekly timer, 1P/16A, 1 module, digital

Technical data

  • Number of modules
    1
  • Shortest switching time [min]
    1
  • Level of security
    IP20
  • Number of modules
    1
  • Number of programs
    20
  • Rated voltage [V]
    230
  • Breaking capacity
    16A 250V AC1
  • PKWIU
    26.52.24.0

Other technical data

  • Mounting method
    DIN rail
  • Supply voltage
    230 ... 230 V
  • Frequency supply voltage
    50 ... 50 Hz
  • Text guidance in display
    No
  • With memory card
    No
  • 24 h program
    No
  • Annual program
    No
  • Impulse program
    No
  • Astro program
    No
  • Hour meter
    No
  • Quartz controlled
    Yes
  • Radio-controlled (DCF77)
    No
  • Shortest switching time channel 1
    1 min
  • Automatic switching summer-/winter time
    Yes
  • Switching preselection
    No
  • Potential free switch contact
    Yes
  • Width in number of modular spacings
    1
  • Height
    92 mm
  • Number of channels
    1
  • Voltage type (supply voltage)
    AC
  • Autonomy in years
    3
  • External programming
    No
  • 60 min program
    Yes
  • Weekly program
    Yes
  • Holiday program
    No
  • Cycle program
    No
  • Random program
    No
  • Mains synchronous
    No
  • Radio-controlled
    No
  • GPS (global positioning system)
    No
  • Shortest switching time channel 2
    1 min
  • Suitable for manual operation
    Yes
  • Nominal switching current at 250 V AC
    16 A
  • Degree of protection (IP)
    IP20
  • Width
    18 mm
  • Depth
    64 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,095 0,110 7,205 195,920
Width (m) 0,018 0,082 0,321 0,800
Length (m) 0,085 0,044 0,221 1,034
Depth (m) 0,064 0,100 0,372 1,200
