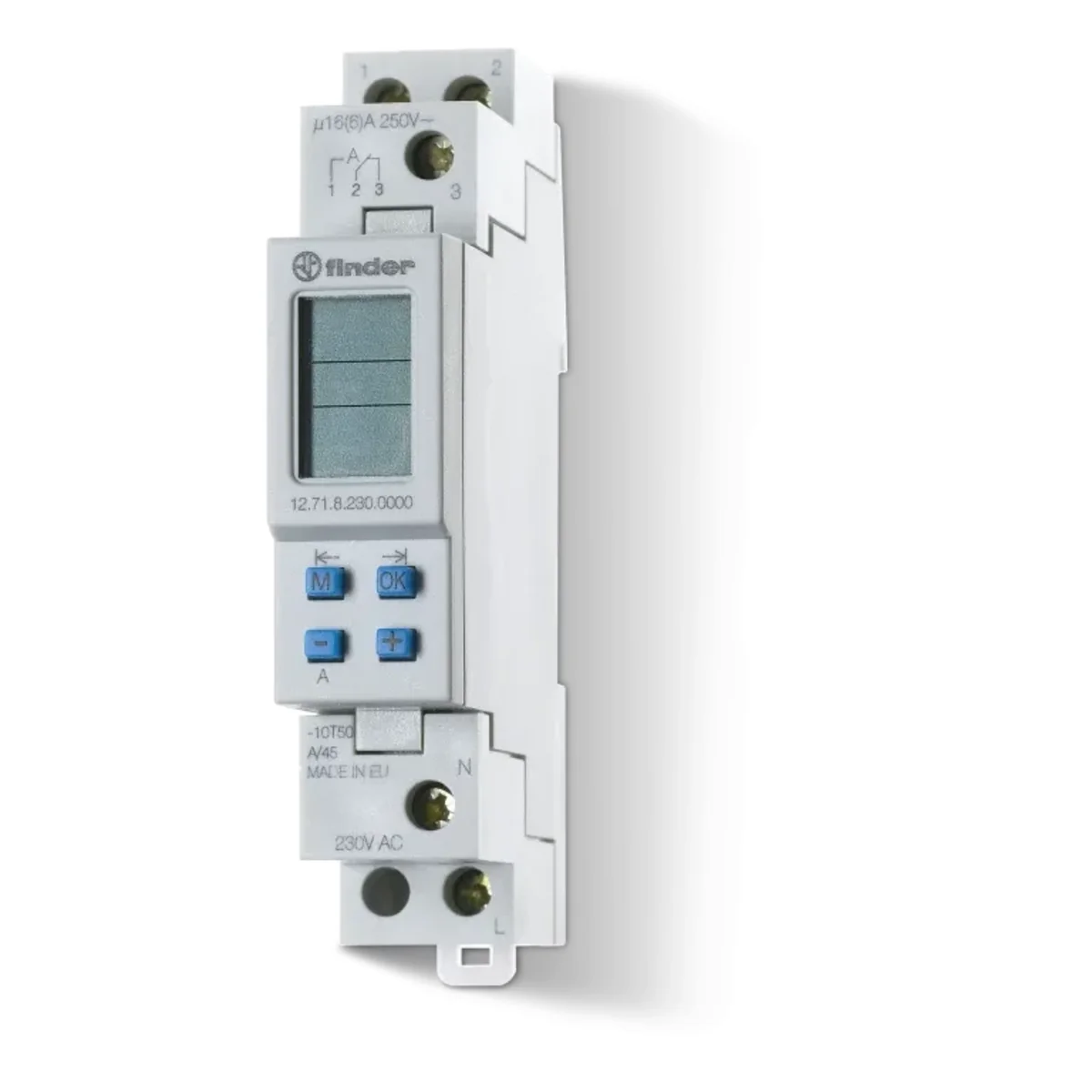

Weekly timer 1P 16A IP20 230V AC 127182300000
local index:
APR021FIND
Catalog No:
127182300000
EAN code:
8012823274386
Manufacturer:
FINDER
Contact material: AgNi
Installation: On the TH-35 rail
AC coil voltage [V]: 230
Price:
89,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electronic timer with one weekly program
Features:
- Built-in backup battery
- Pulse output function: 1 s…59:59(mm:ss)
- Auto daylight saving time
Technical data
-
Contact materialAgNi
-
AC coil voltage [V]230
-
Overvoltage resistance [kV]4
-
Rated current [A]16
-
Level of securityIP20
-
TypeWeekly
-
Battery life [years]6
-
Type of coil voltageAC
-
Rated switching power for AC15 (230V AC) [VA]420
-
Minimum setting time [min]1
-
Battery typeCR 2032
-
InstallationOn the TH-35 rail
-
Rated voltage [V]230
-
Power consumption [VA]2
-
Family12
-
Width [number of modules]1
-
Rated inrush current [A]thirty
-
Number of contacts1P
-
Rated switching power for AC1 [VA]4000
-
Electrical durability AC1 [number of cycles]50000
-
Accuracy [s/day]0.5
-
Number of time programsthirty
Other technical data
-
Mounting methodDIN rail
-
Supply voltage230 ... 230 V
-
Frequency supply voltage50 ... 60 Hz
-
Autonomy in years6
-
Text guidance in displayYes
-
24 h programYes
-
Annual programYes
-
Impulse programYes
-
Astro programYes
-
Hour meterYes
-
Quartz controlledYes
-
Shortest switching time channel 11 min
-
Automatic switching summer-/winter timeYes
-
External pushbutton inputYes
-
Nominal switching current at 250 V AC16 A
-
Degree of protection (IP)IP20
-
Width17.8 mm
-
Depth63 mm
-
Number of channels1
-
Voltage type (supply voltage)AC
-
Autonomy in hours52596
-
Accuracy per day1.5 s
-
60 min programYes
-
Weekly programYes
-
Holiday programYes
-
Cycle programYes
-
Random programYes
-
Mains synchronousYes
-
Radio-controlledYes
-
Number of memory locations30
-
Suitable for manual operationYes
-
Switching preselectionYes
-
Potential free switch contactYes
-
Width in number of modular spacings1
-
Height90 mm
Manufacturer details
-
ManufacturerFINDER Polska Sp. z o.o.
-
Address62-080 Sady Logistyczna 27
-
E-mail
-
Tax identification number7792442331
-
GLN5907222322000
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 5 pcs. | 1 pcs. |
| Weight (kg) | 0,767 | 0,137 |
| Width (m) | 0,245 | 0,112 |
| Length (m) | 0,115 | 0,046 |
| Depth (m) | 0,097 | 0,092 |
