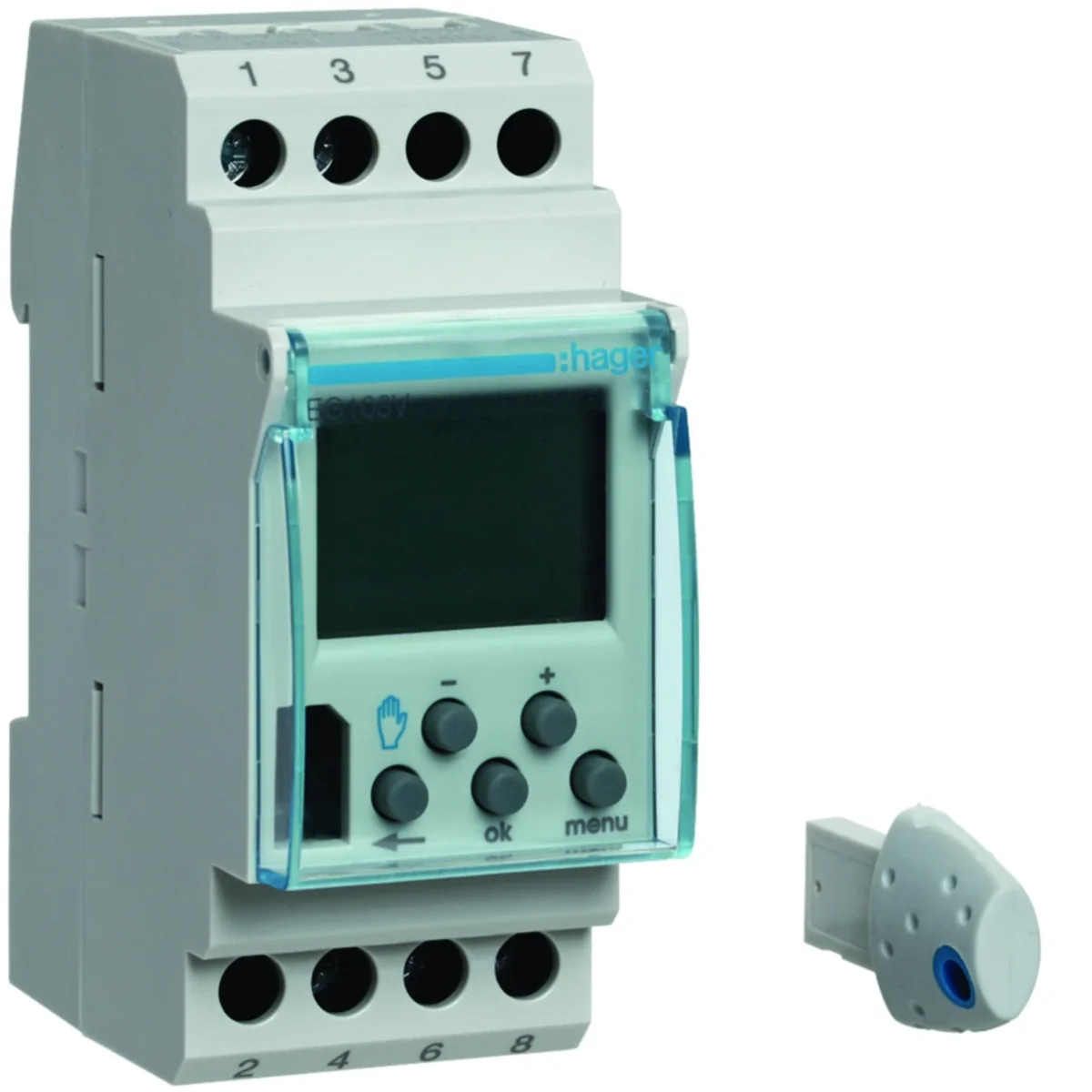

Weekly digital timer 56 program steps 12-24VAC/DC+230VAC 1P 16A EG103V
local index:
APR007HAGE
Catalog No:
EG103V
EAN code:
3250612279937
Price:
160,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Weekly digital timer 56 program steps 12-24VAC/DC+230VAC 1P 16A
Technical data
-
Rated frequency [Hz]50
-
Depth [mm]64
-
Contact type1 switch
-
power loss [W]2
-
Fastener typeVariable contact
-
Height [mm]85
-
Rated switching voltage [V]12/24
-
DC supply voltage [V]12/24
-
AC supply voltage [V]12/24
-
storage temperature [°C]from -20 to 70
-
Conductor cross-section (wire) [mm²]1.5 - 10
-
Length [mm]85
-
Input power [VA]0.8
-
Level of securityIP20
-
Width [mm]35
-
Connection typeWith a screw
-
Operating temperature range [°C]from -5 to 45
-
Number of modules2
-
Maximum bulb power [W]2300
-
Connection typeWith screw terminals
-
Wire cross-section (cord) [mm²]1 - 6
-
PKWIU26.52.24.0
Other technical data
-
Mounting methodDIN rail
-
Supply voltage12 ... 24 V
-
Frequency supply voltage50 ... 50 Hz
-
Text guidance in displayNo
-
With memory cardNo
-
24 h programNo
-
Annual programNo
-
Impulse programYes
-
Astro programNo
-
Hour meterNo
-
Quartz controlledYes
-
Radio-controlled (DCF77)No
-
Shortest switching time channel 11 min
-
Automatic switching summer-/winter timeYes
-
Switching preselectionNo
-
Potential free switch contactYes
-
Width in number of modular spacings2
-
Height85 mm
-
Number of channels1
-
Voltage type (supply voltage)AC/DC
-
Autonomy in years5
-
External programmingYes
-
60 min programYes
-
Weekly programYes
-
Holiday programYes
-
Cycle programNo
-
Random programYes
-
Mains synchronousNo
-
Radio-controlledNo
-
GPS (global positioning system)No
-
Shortest switching time channel 21 min
-
Suitable for manual operationYes
-
Nominal switching current at 250 V AC16 A
-
Degree of protection (IP)IP20
-
Width35 mm
-
Depth64 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,132 | 0,195 | 9,905 | 260,720 |
| Width (m) | 0,059 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,082 | 0,060 | 0,235 | 1,050 |
| Depth (m) | 0,094 | 0,095 | 0,360 | 1,200 |
