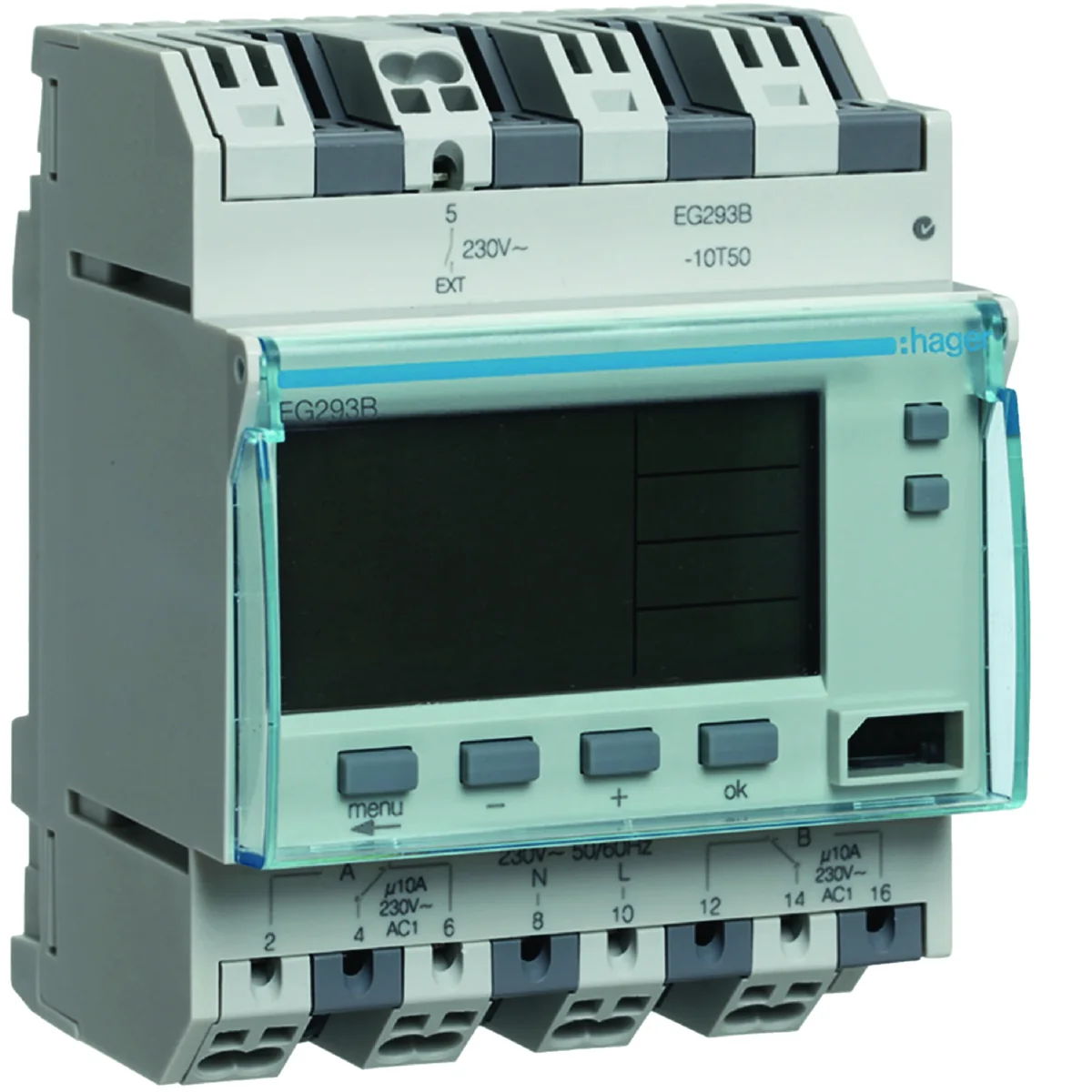

Weekly digital timer 300 program steps 230V 2P 16A QuickConnect EG293B

local index:
APR008HAGE
Catalog No:
EG293B
EAN code:
3250612279821
Manufacturer: HAGER
Depth [mm]: 69
Input power [VA]: 2
Installation: On the TH-35 rail
Price:
755,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Weekly digital timer 300 program steps 230V 2P 16A QuickConnect

Technical data

  • Depth [mm]
    69
  • Installation
    On the TH-35 rail
  • Contact type
    2 switches + 2NO
  • power loss [W]
    2
  • Connection type
    Quick Connect
  • Operating temperature range [°C]
    from -10 to 50
  • Number of modules
    4
  • storage temperature [°C]
    from -20 to 70
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5
  • Input power [VA]
    2
  • Supply voltage [V]
    230
  • Level of security
    IP20
  • Width [mm]
    70
  • Height [mm]
    90
  • Rated switching voltage [V]
    195/230/253
  • Maximum bulb power [W]
    1500
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    26.52.24.0

Other technical data

  • Mounting method
    DIN rail
  • Voltage type (supply voltage)
    AC
  • Autonomy in years
    5
  • External programming
    Yes
  • 60 min program
    Yes
  • Weekly program
    No
  • Holiday program
    Yes
  • Cycle program
    Yes
  • Random program
    Yes
  • Mains synchronous
    No
  • Radio-controlled
    No
  • GPS (global positioning system)
    No
  • Shortest switching time channel 2
    1 min
  • Suitable for manual operation
    Yes
  • Nominal switching current at 250 V AC
    10 A
  • Degree of protection (IP)
    IP20
  • Width
    70 mm
  • Depth
    69 mm
  • Number of channels
    2
  • Frequency supply voltage
    50 ... 60 Hz
  • Text guidance in display
    No
  • With memory card
    No
  • 24 h program
    No
  • Annual program
    Yes
  • Impulse program
    Yes
  • Astro program
    No
  • Hour meter
    No
  • Quartz controlled
    Yes
  • Radio-controlled (DCF77)
    No
  • Shortest switching time channel 1
    1 min
  • Automatic switching summer-/winter time
    Yes
  • Switching preselection
    Yes
  • Potential free switch contact
    Yes
  • Width in number of modular spacings
    4
  • Height
    90 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,179 0,340 8,540 229,960
Width (m) 0,069 0,095 0,310 0,800
Length (m) 0,090 0,080 0,210 0,101
Depth (m) 0,071 0,100 0,360 1,200
