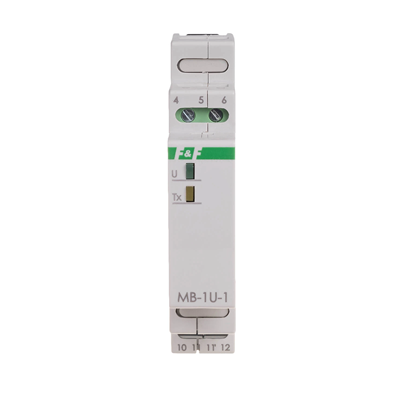

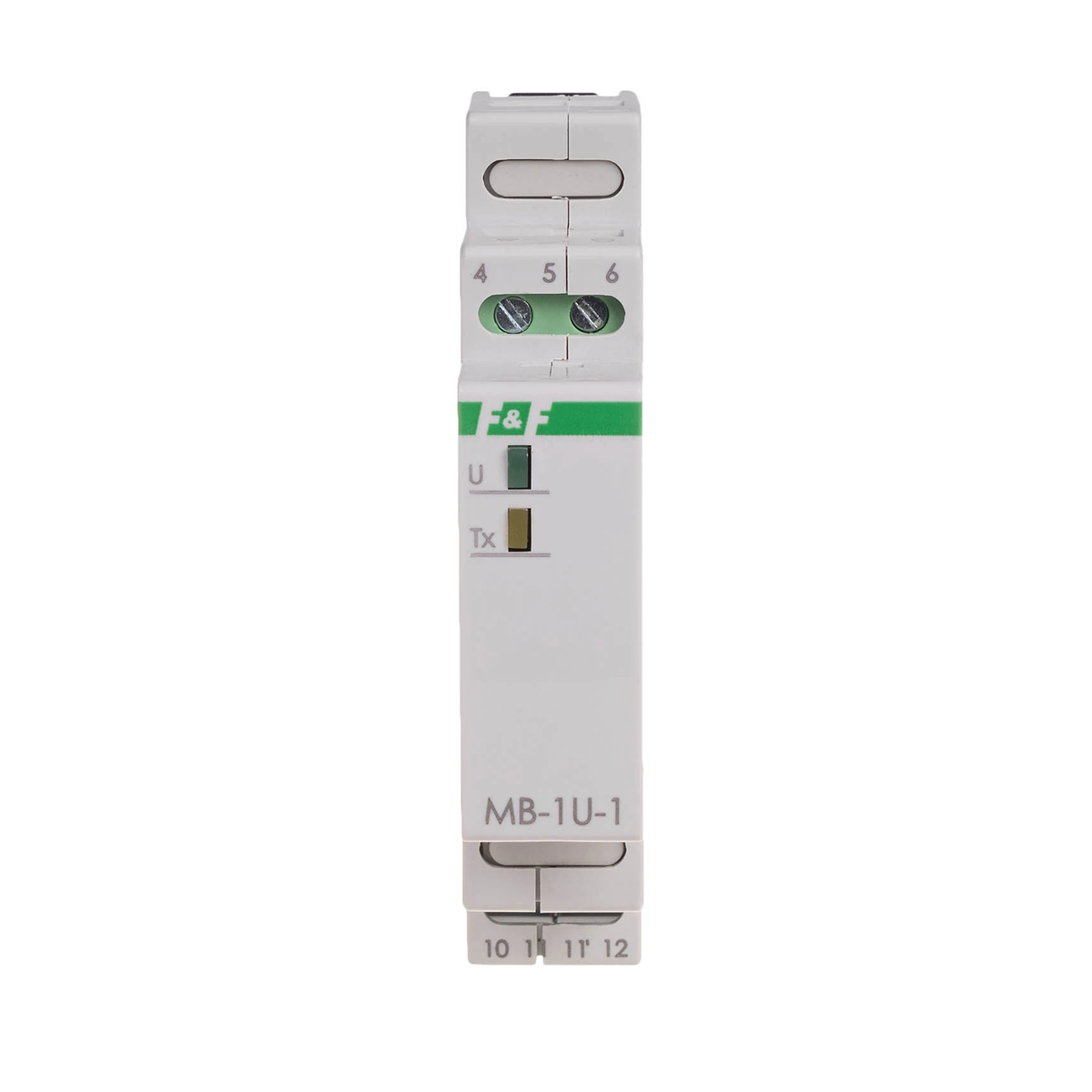

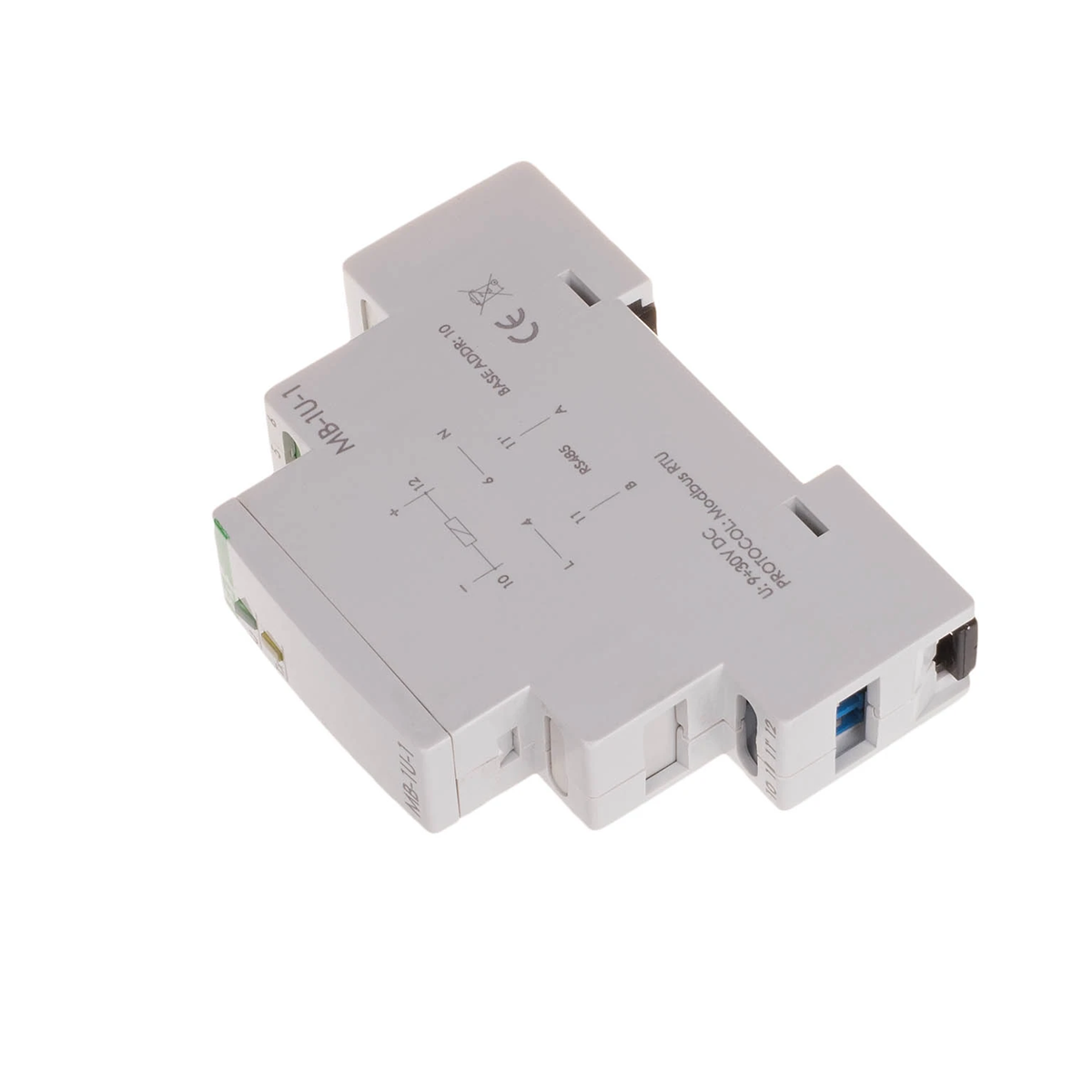

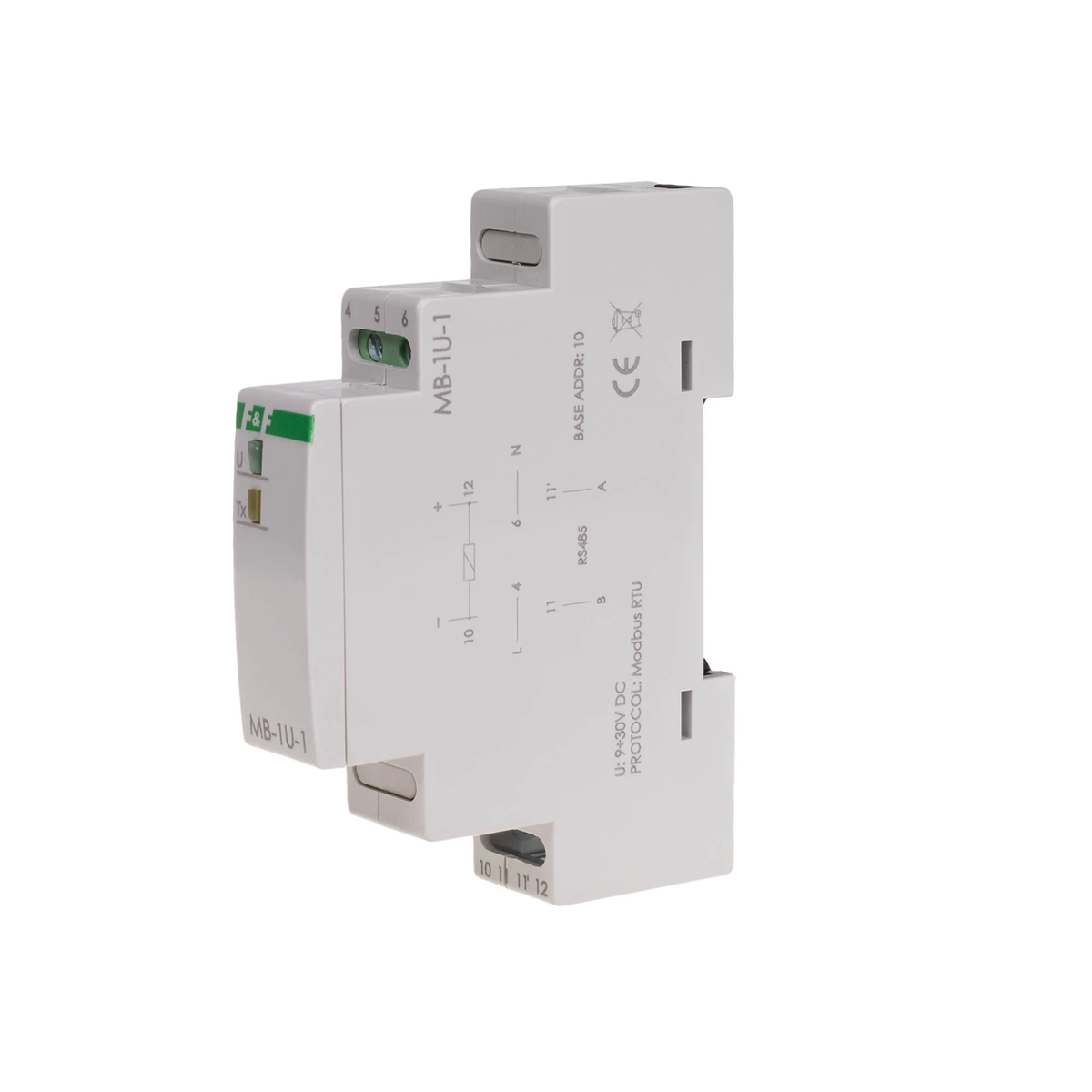

Voltage converter with MODBUS RTU output MAX-MB-1U-1
local index:
API038FIFQ
Catalog No:
MAX-MB-1U-1
EAN code:
5908312595328
Price:
133,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The MB-1U-1 transducer is designed for voltage measurement and data exchange via the RS485 port in accordance with the MODBUS RTU protocol.
| Read precision [V] | 1 | TrueRMS AC [V] measurement range | 0-258 |
| TrueRMS DC [V] measurement range | 0-400< /td> |
Technical data
-
Processing error0.005
-
Level of securityIP20
-
Job typeslave
-
Power [V]9-30
-
Package width [mm]20
-
Sampling frequency [Hz]10
-
Relative air humidity85% at 30C
-
measurement error0.005
-
PKWIU26.30.23.0
-
HarborRS-485
-
Working temperature [°C]-20-50
-
Dimensions1 module (18mm)
-
Package height [mm]150
-
Package weight [kg]0.2
-
communication protocolMODBUS RTU
-
I/O breakdown voltage [kV]3
-
Maximum current consumption [mA]50
Other technical data
-
Initial value measuring range voltage0 V
-
Frequency rated current50 Hz
-
End value measuring range voltage285 V
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,065 |
| Width (m) | 0,019 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
