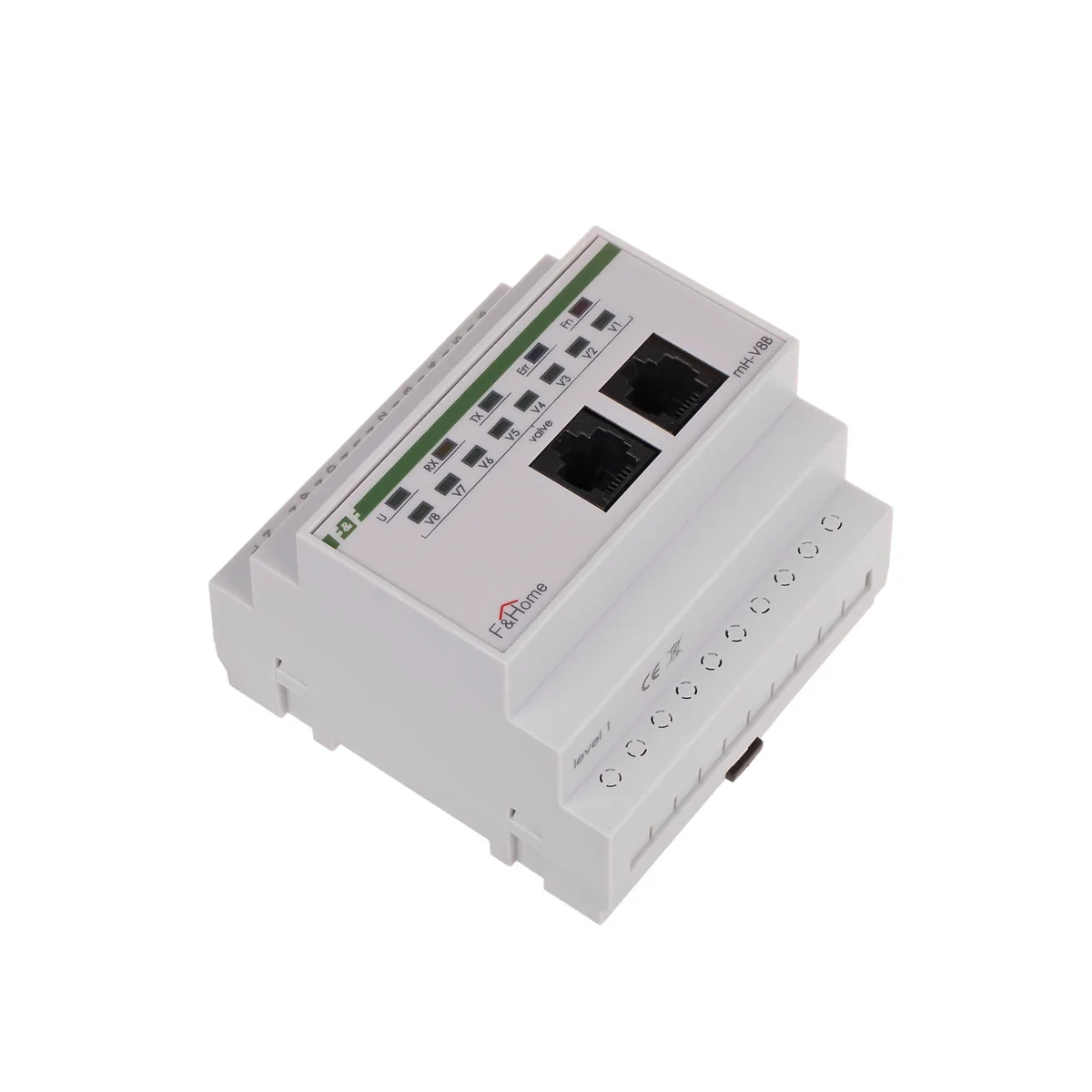

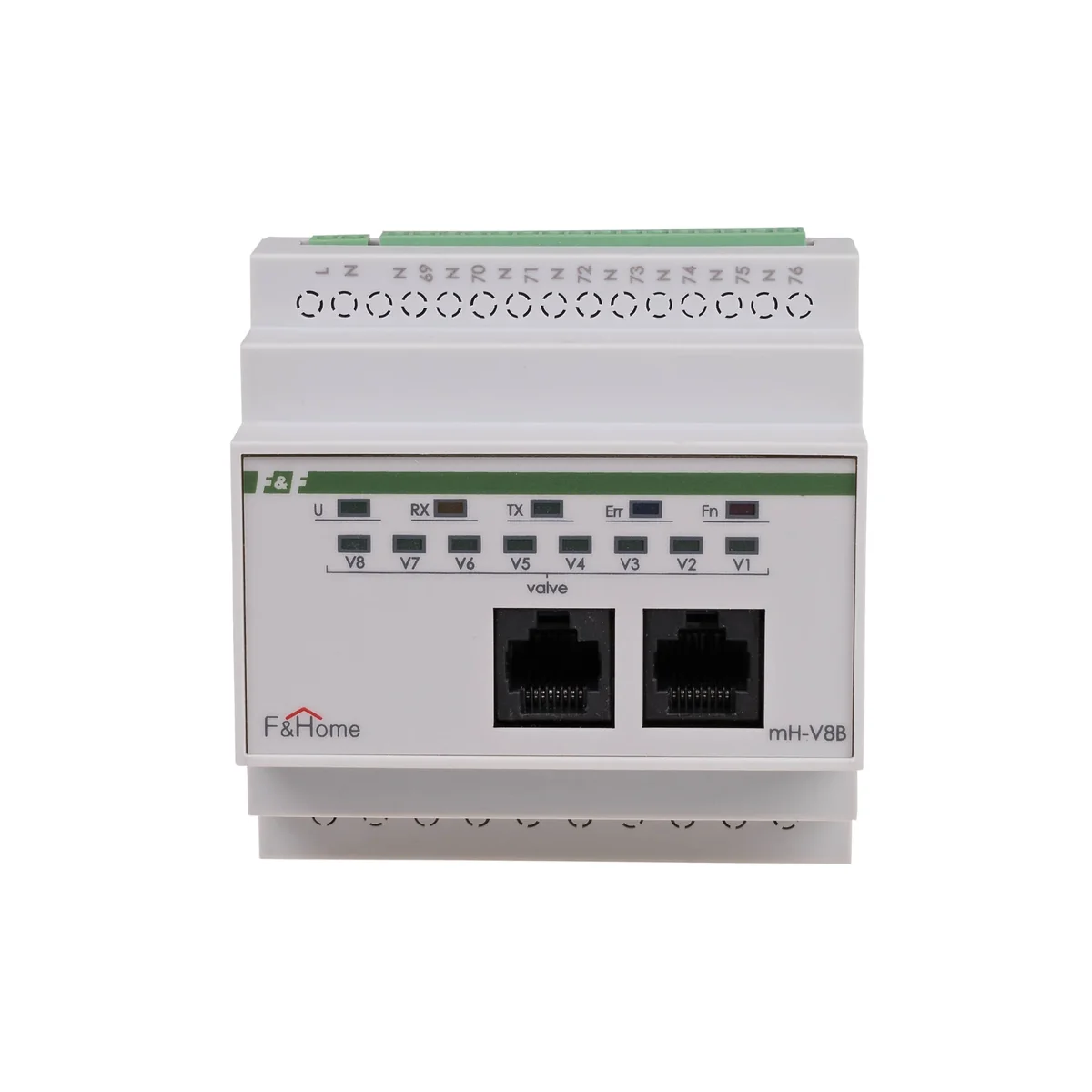

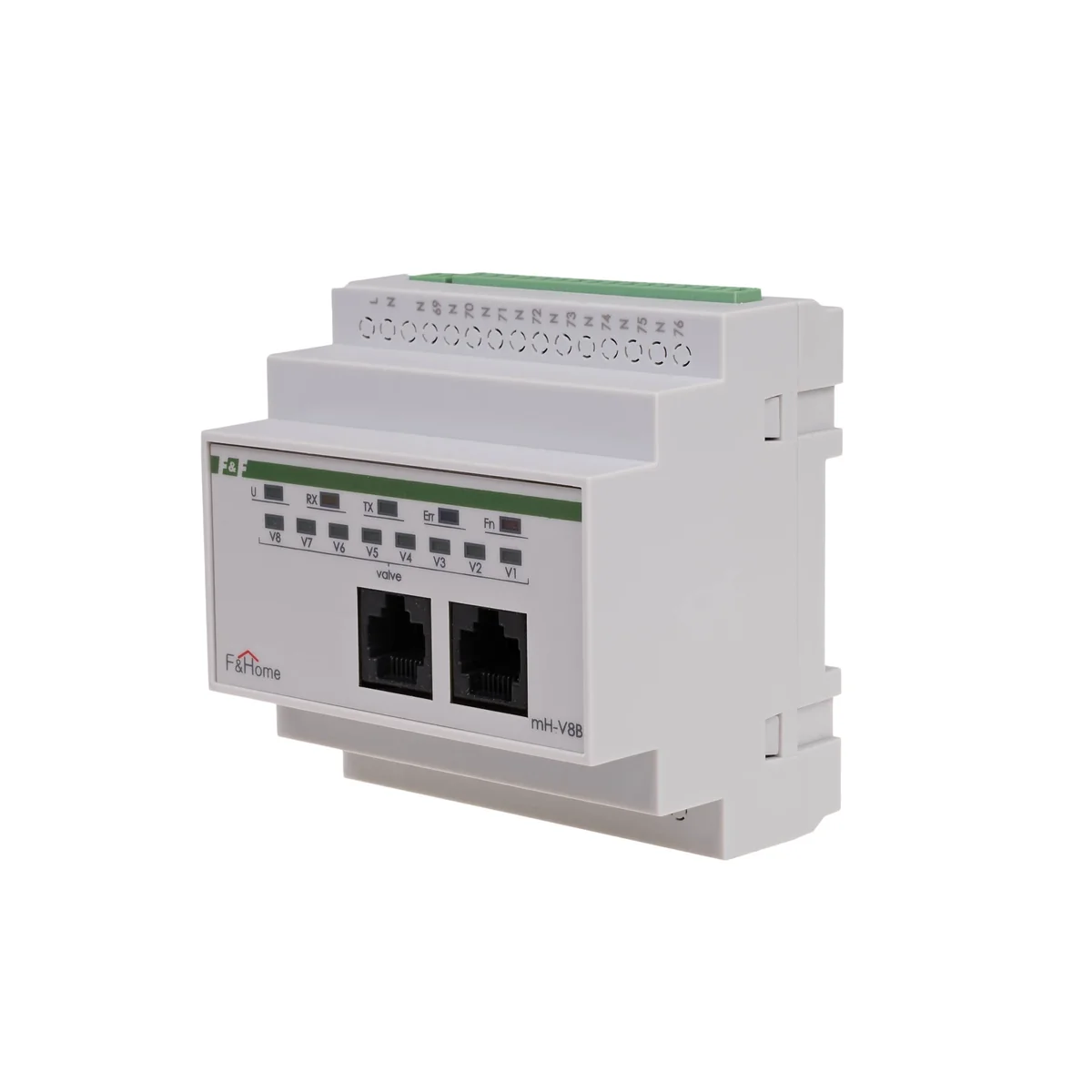

Valve module (8 valves) MH-V8-2

local index:
API076FIFQ
Catalog No:
MH-V8-2
EAN code:
5908312593737
Manufacturer: F&F
Number of outputs: 8
Switching voltage [V]: 85-250
Rated current [mA]: 4
Price:
298,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The mH-V8 module is an eight-channel executive module that controls the operation of solenoid valves connected to the module outputs and is adapted to work with mH-S8 temperature sensor modules.

Technical data

  • Number of outputs
    8
  • Rated current [mA]
    4
  • Level of security
    IP20
  • Package height [mm]
    90
  • Package weight [kg]
    0.3
  • PKWIU
    27.12.24.0
  • Switching voltage [V]
    85-250
  • Family
    F&HOME
  • Dimensions
    5 modules (85mm)
  • Package width [mm]
    100
  • Maximum switching current [A]
    0.5

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • With bus connection
    Yes
  • Correcting variable switching
    Yes
  • Manual switch
    Yes
  • Number of outputs
    8
  • Switching voltage
    85 ... 250 V
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Other
  • Width in number of modular spacings
    5
  • Correcting variable consistent
    Yes
  • Valve protection function
    Yes
  • Max. switching current (resistive load)
    0.5 A
  • Max. output current
    4 A
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,220
Width (m) 0,104
Depth (m) 0,075
