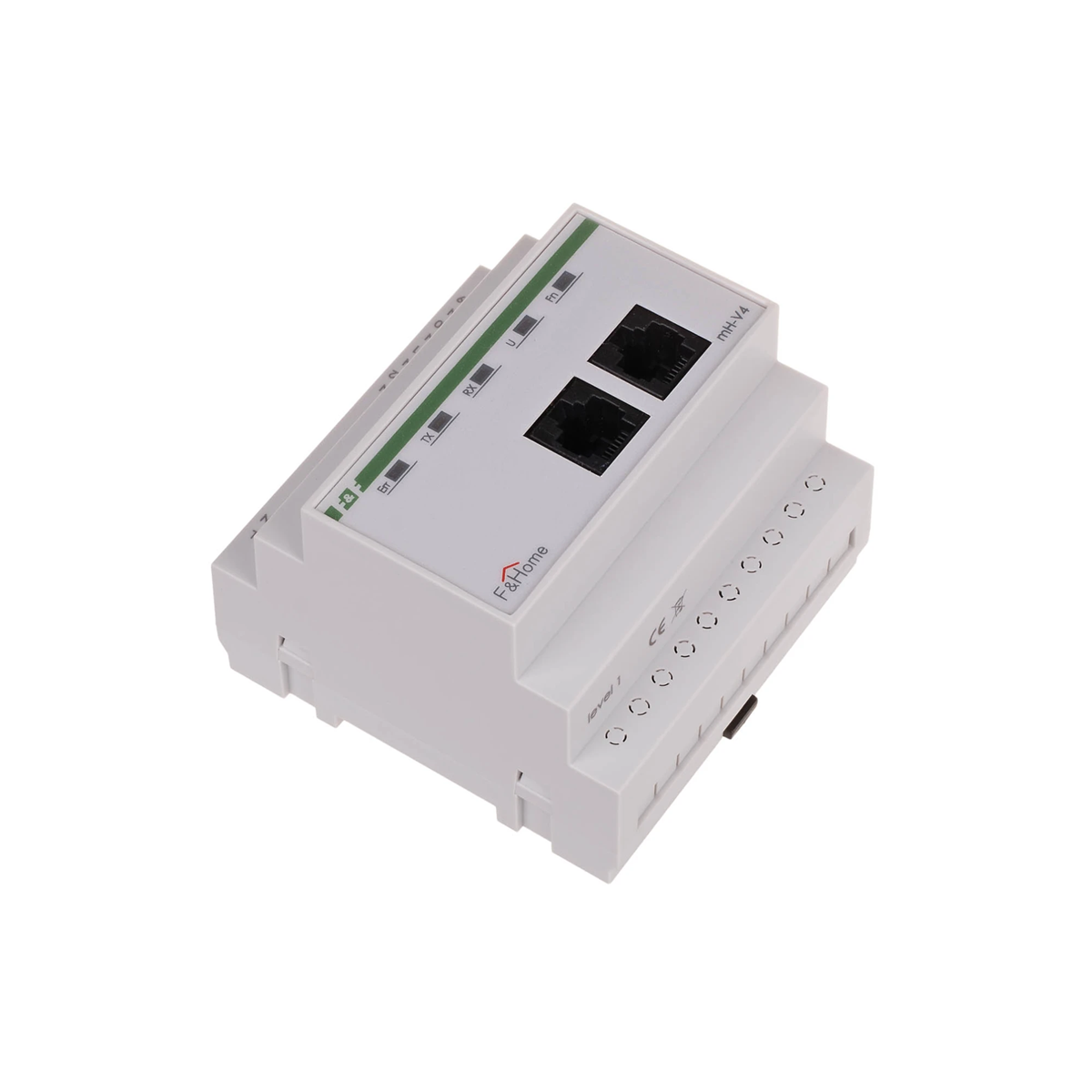

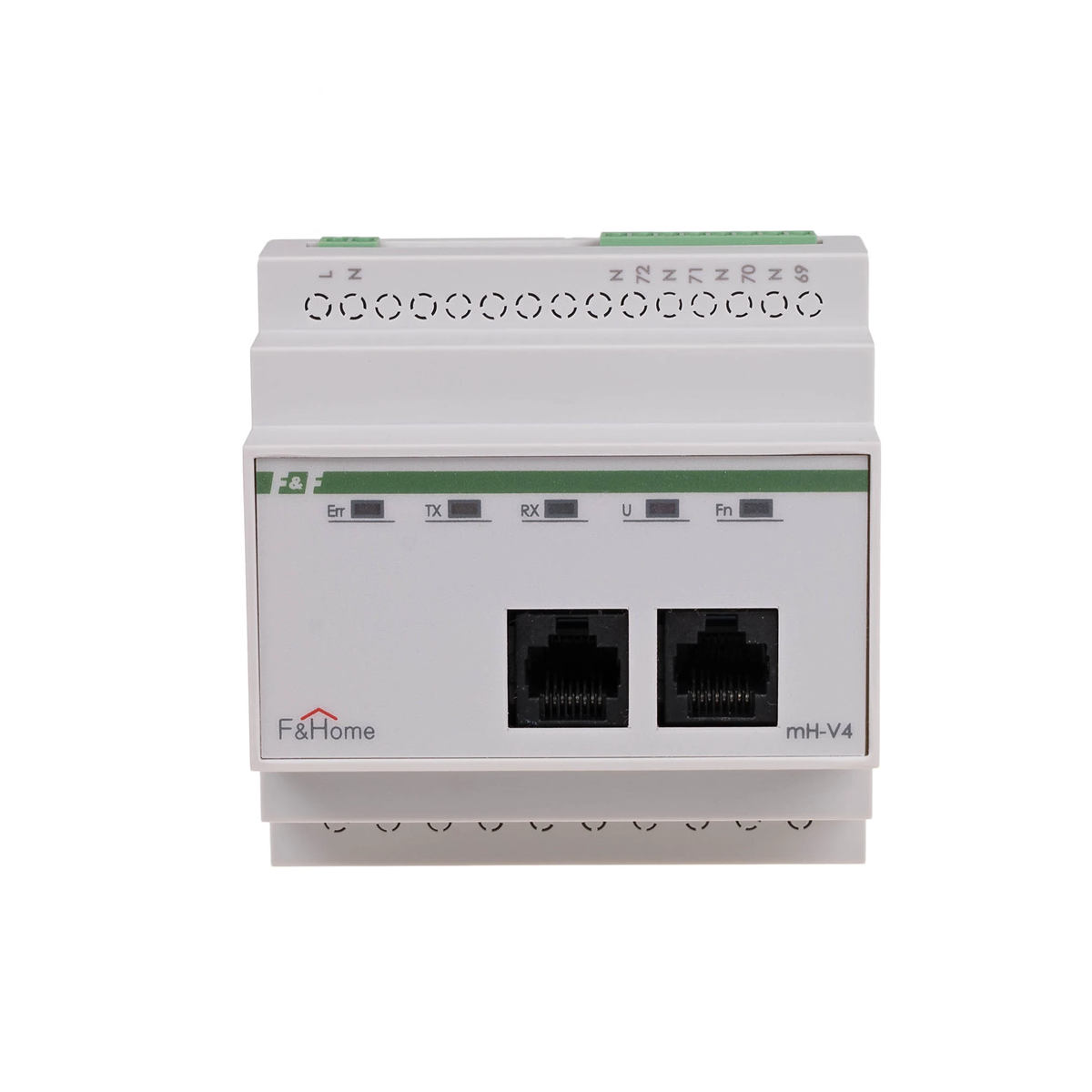

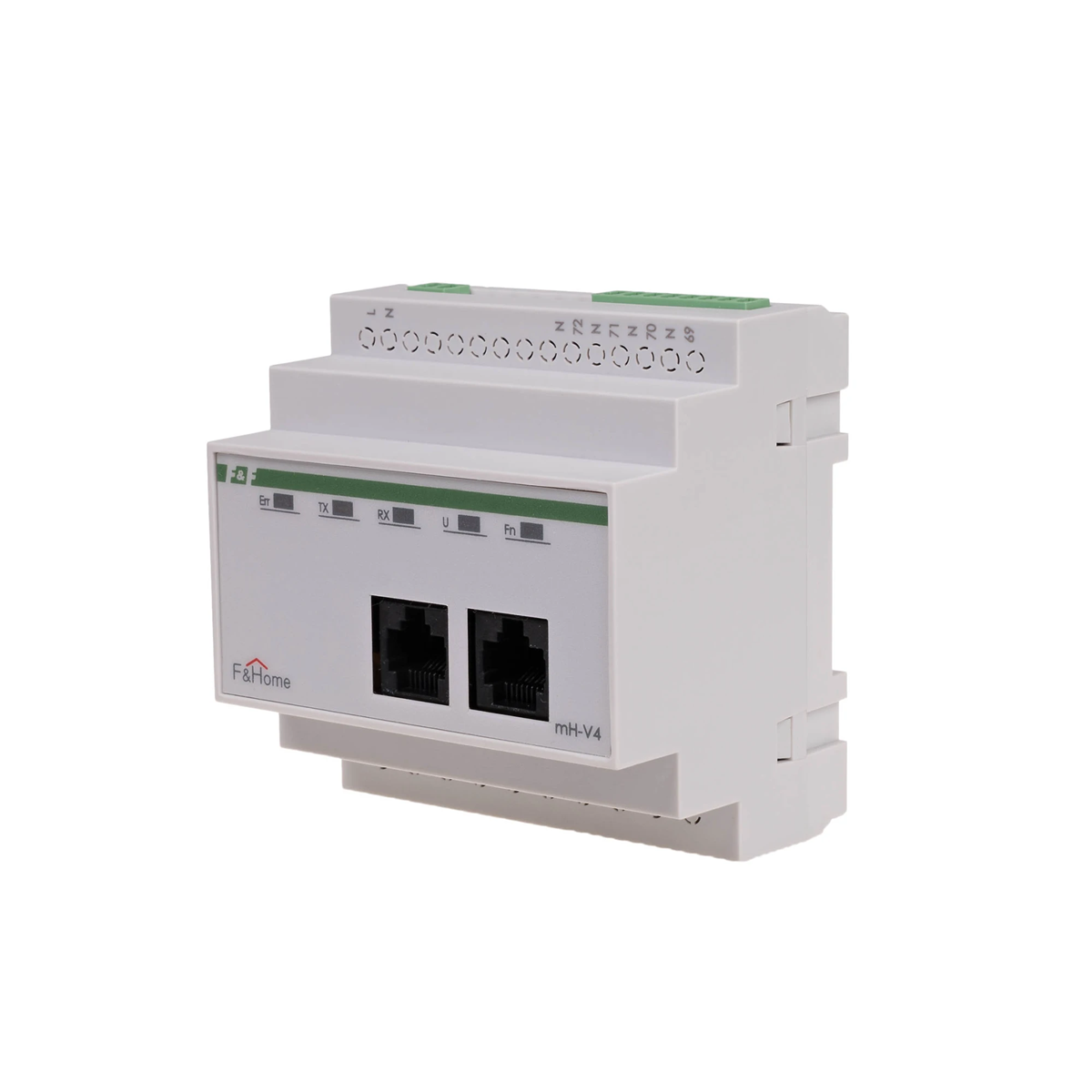

Valve module (4 valves) MH-V4-4

local index:
API086FIFQ
Catalog No:
MH-V4-4
EAN code:
5908312593713
Manufacturer: F&F
Central shutdown: NO
Frequency [Hz]: 50
Rain sensor: NO
Price:
201,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The mH-V4 module is a four-channel executive module that controls the operation of solenoid valves connected to the module outputs and is adapted to work with mH-S4 temperature sensor modules. The module is mounted in the switchboard and occupies a field of 5 modules, and the module's supply voltage is 230VAC. The module is suitable for controlling solenoid valves in heating circuits (usually installed on the collector) with a coil voltage of 230VAC and works on the on-off principle, regardless of the main touch panel (it is an autonomous pair with the mH-S4 module located on the same level). If it is necessary to connect more temperature sensors, several mH-V4 modules can be used, but remember that they must be modules of the next levels (mH-V4 - level 1, mH-V4-level 2 ...).

Technical data

  • Central shutdown
    NO
  • Rain sensor
    NO
  • Number of channels
    4
  • Number of contacts
    1NO 0NC
  • Installation
    On the TH-35 rail
  • stair lighting
    NO
  • Astronomical program
    NO
  • Group switch
    NO
  • Level of security
    IP20
  • Dimensions
    5 modules (90mm)
  • Package width [mm]
    100
  • Number of modules
    5
  • Frequency [Hz]
    50
  • Panic function
    NO
  • Number of modules
    5
  • Dimmer power [W]
    100
  • Rated voltage [V]
    230
  • Rated current [A]
    2
  • Weekly programme
    NO
  • Family
    F&HOME
  • Presence simulation
    NO
  • Package height [mm]
    150
  • Package weight [kg]
    0.25
  • PKWIU
    27.12.24.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • With bus connection
    Yes
  • Correcting variable switching
    Yes
  • Manual switch
    Yes
  • Number of outputs
    8
  • Switching voltage
    85 ... 250 V
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Other
  • Width in number of modular spacings
    5
  • Correcting variable consistent
    Yes
  • Valve protection function
    Yes
  • Max. switching current (resistive load)
    0.5 A
  • Max. output current
    4 A
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,210
Width (m) 0,104
Depth (m) 0,075
