Valve module (4 valves) MH-S4-3

local index:
API087FIFQ
Catalog No:
MH-S4-3
EAN code:
5908312593621
Manufacturer: F&F
Central shutdown: NO
Frequency [Hz]: 50
Rain sensor: NO
Price:
171,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

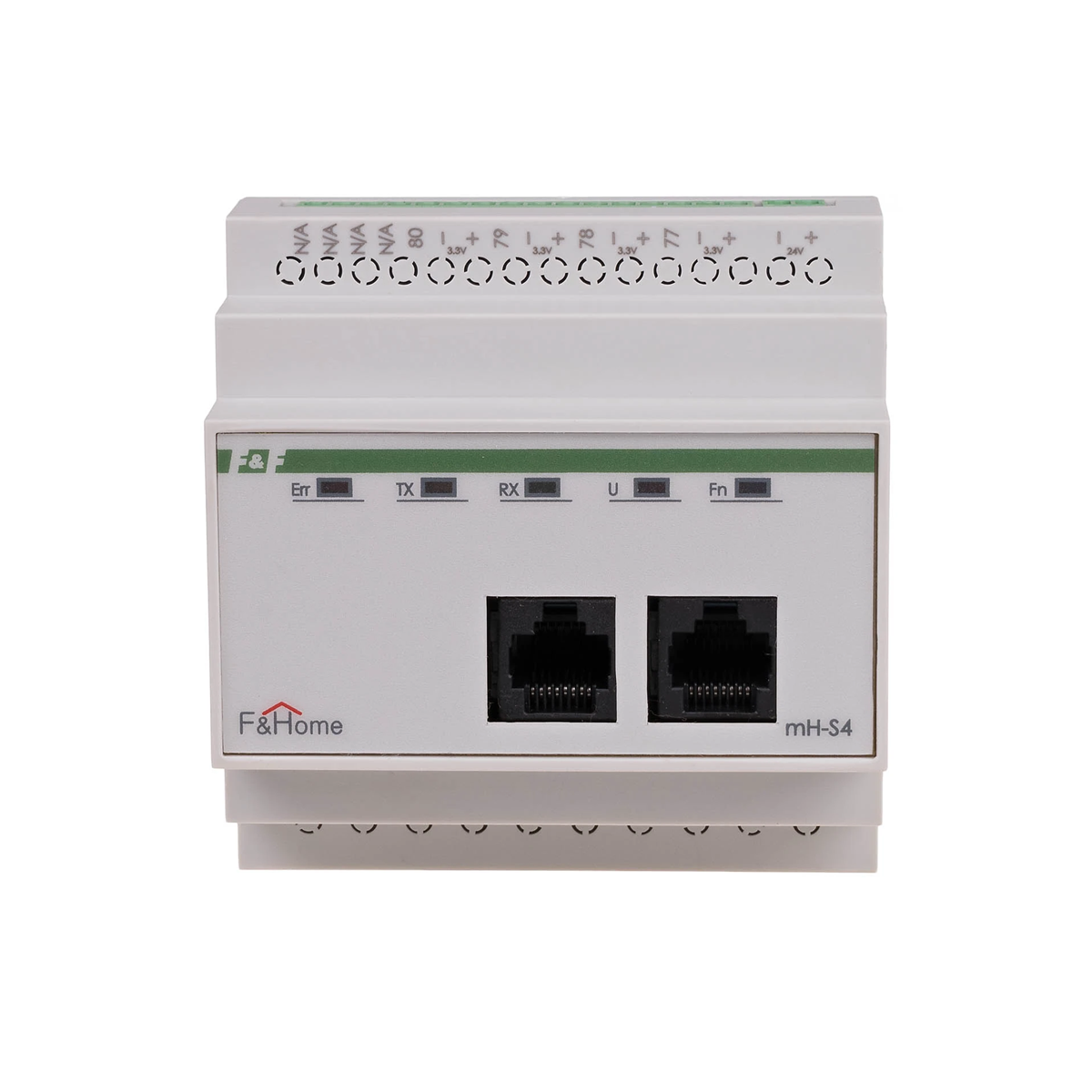

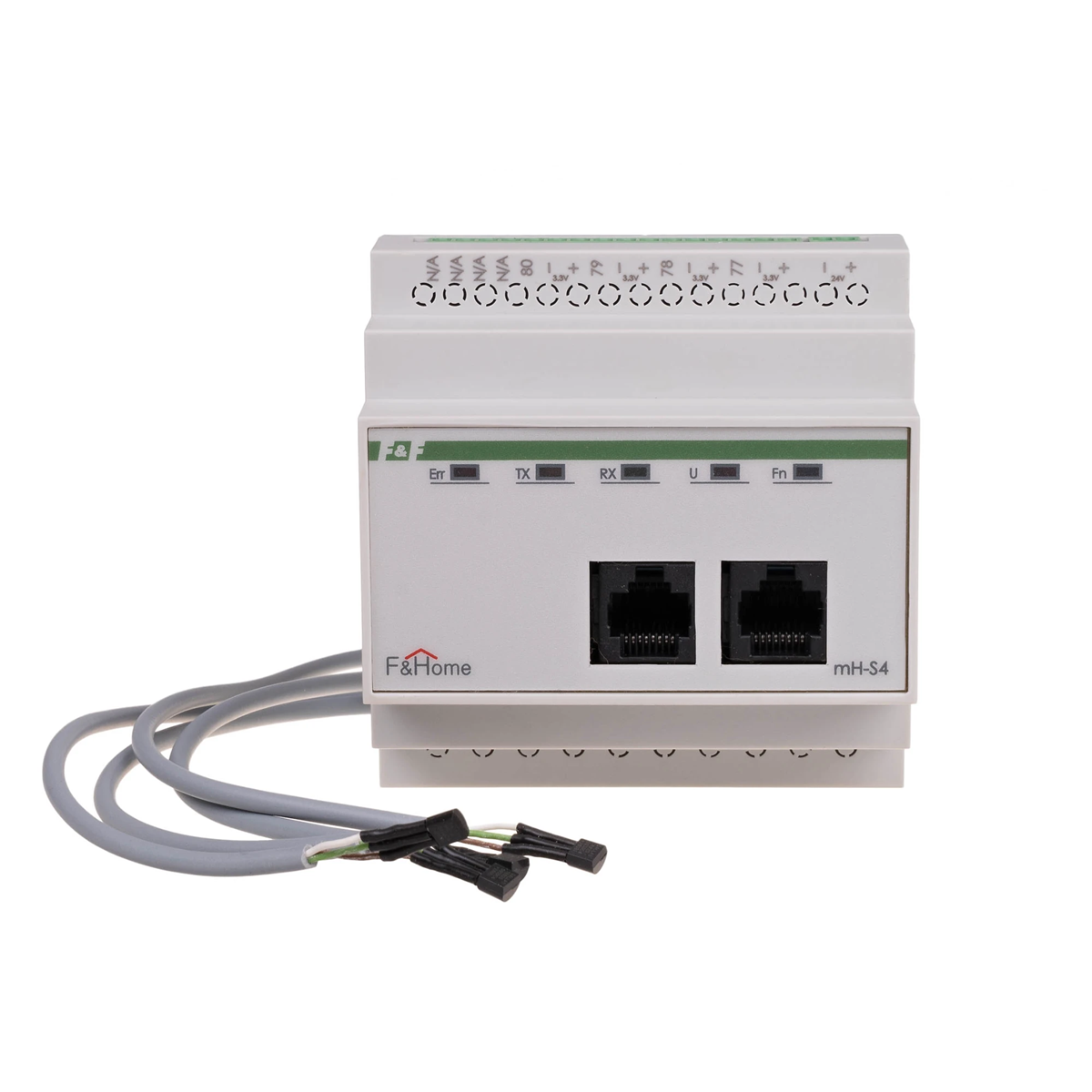

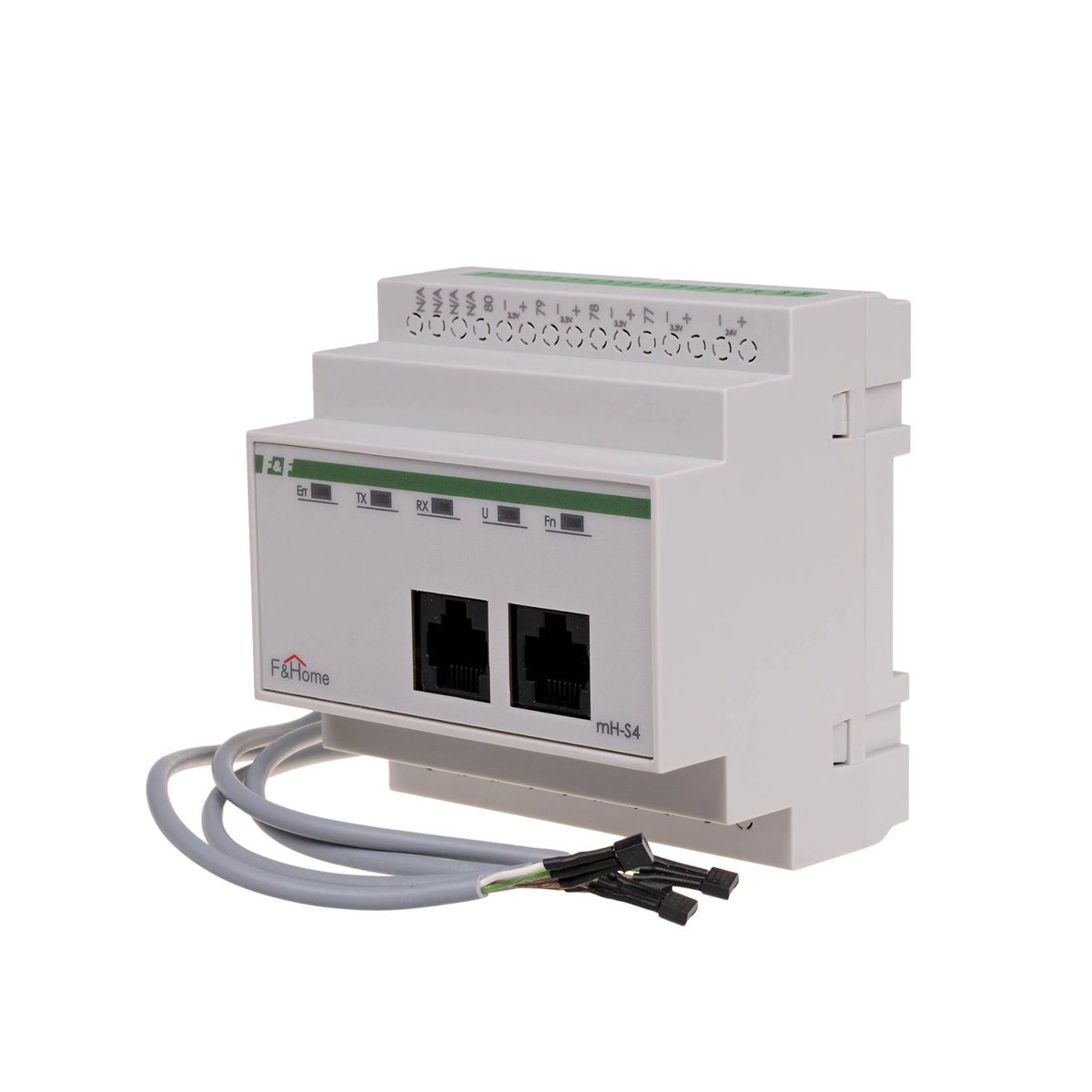

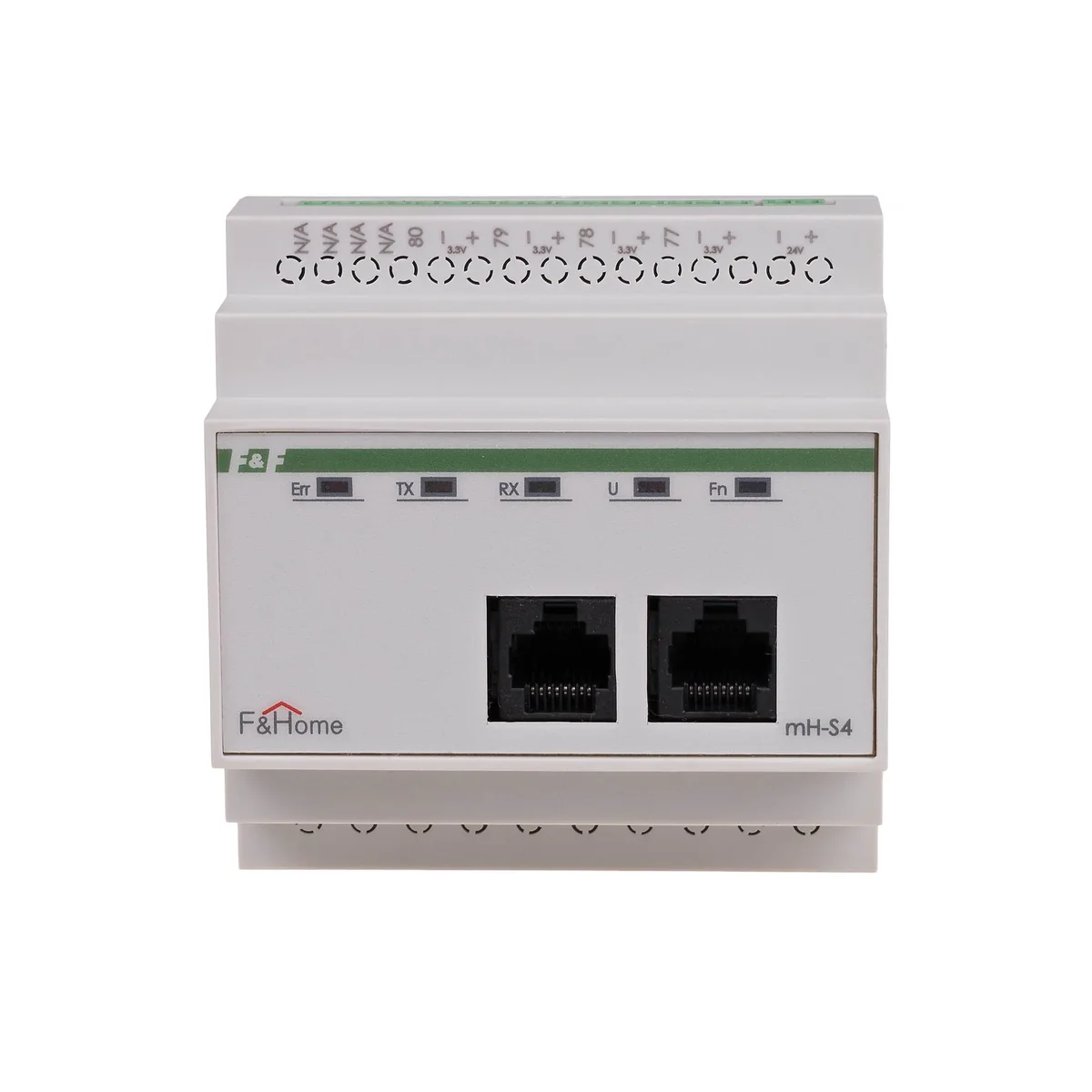

The mH-S4 module is a four-channel controller cooperating with digital temperature sensors measuring temperatures in the range from +5 to +40 degrees with an accuracy of 0.1 degrees and is adapted to operate with mH-V4 executive modules controlling solenoid valves in the heating circuit. The module is mounted in the switchgear and takes up a field of 5 modules, and the module's supply voltage is 24VDC. FTP cables from temperature sensors are connected to the module (one cable for each sensor). The module works autonomously based on detailed settings made from the touch panel (independently set temperature and hysteresis for each room) and based on these settings directly controls the executive module that regulates the temperature in the room. If it is necessary to connect more temperature sensors, several mH-S4 modules can be used, but remember that they must be modules of successive levels (mH-S4 - level 1, mH-S4-level 2, ...).

Technical data

  • Central shutdown
    NO
  • Rain sensor
    NO
  • Depth [mm]
    65
  • Number of modules
    5
  • Installation
    On the TH-35 rail
  • stair lighting
    NO
  • Astronomical program
    NO
  • Group switch
    NO
  • Level of security
    IP20
  • Width [mm]
    87.5
  • Package height [mm]
    90
  • Package weight [kg]
    0.25
  • PKWIU
    26.51.70.0
  • Frequency [Hz]
    50
  • Panic function
    NO
  • Number of channels
    4
  • Number of contacts
    1NO 0NC
  • Rated voltage [V]
    24
  • Rated current [A]
    0.1
  • Weekly programme
    NO
  • Family
    F&HOME
  • Presence simulation
    NO
  • Height [mm]
    90
  • Package width [mm]
    87.5
  • Number of modules
    5

Other technical data

  • Bus system KNX
    no
  • Bus system radio frequent
    no
  • Bus system Powernet
    no
  • Mounting method
    DRA (DIN-rail adapter)
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    no
  • Bus system LON
    no
  • Other bus systems
    Other
  • Number of inputs
    4

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,210
Width (m) 0,104
Length (m) 0,105
Depth (m) 0,075
