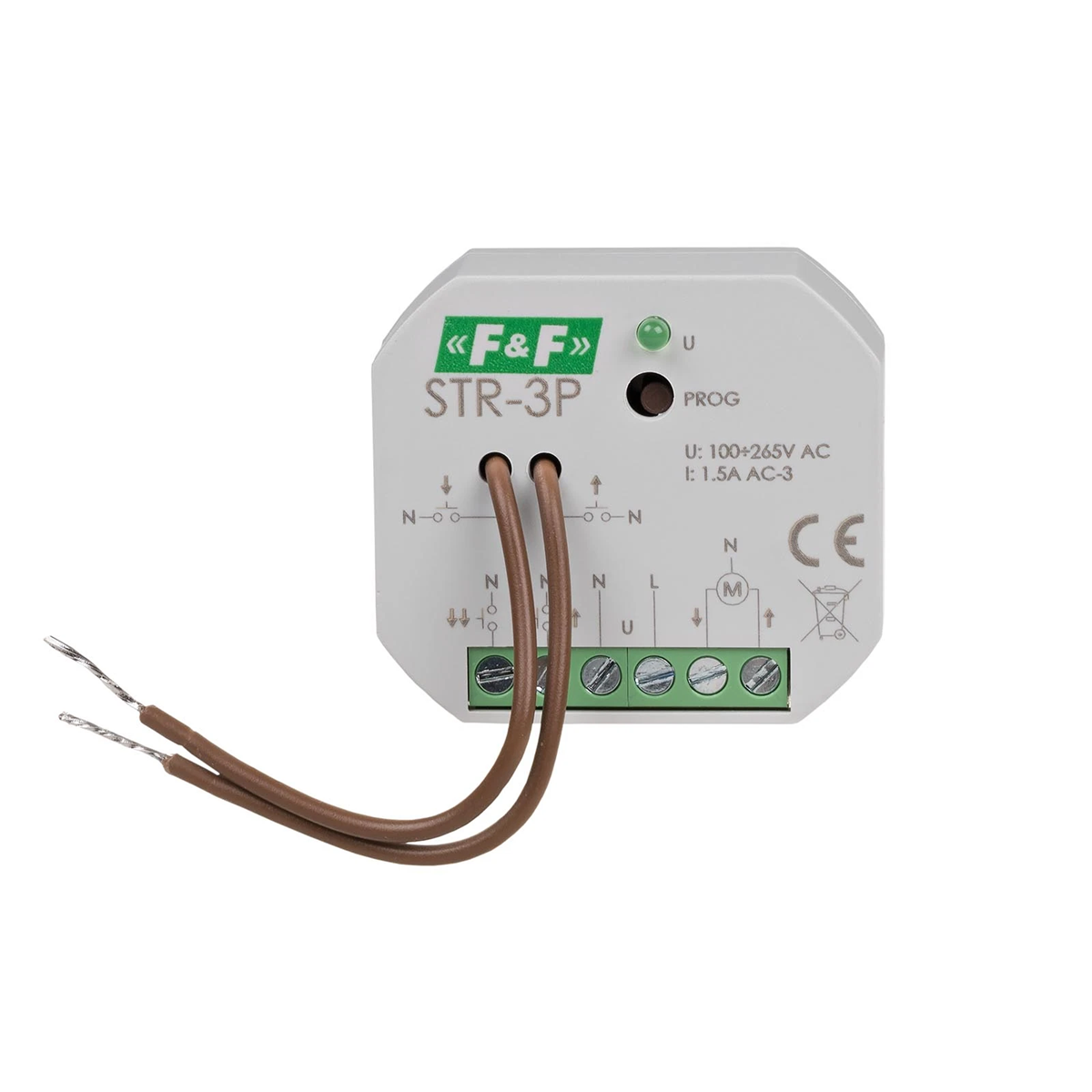

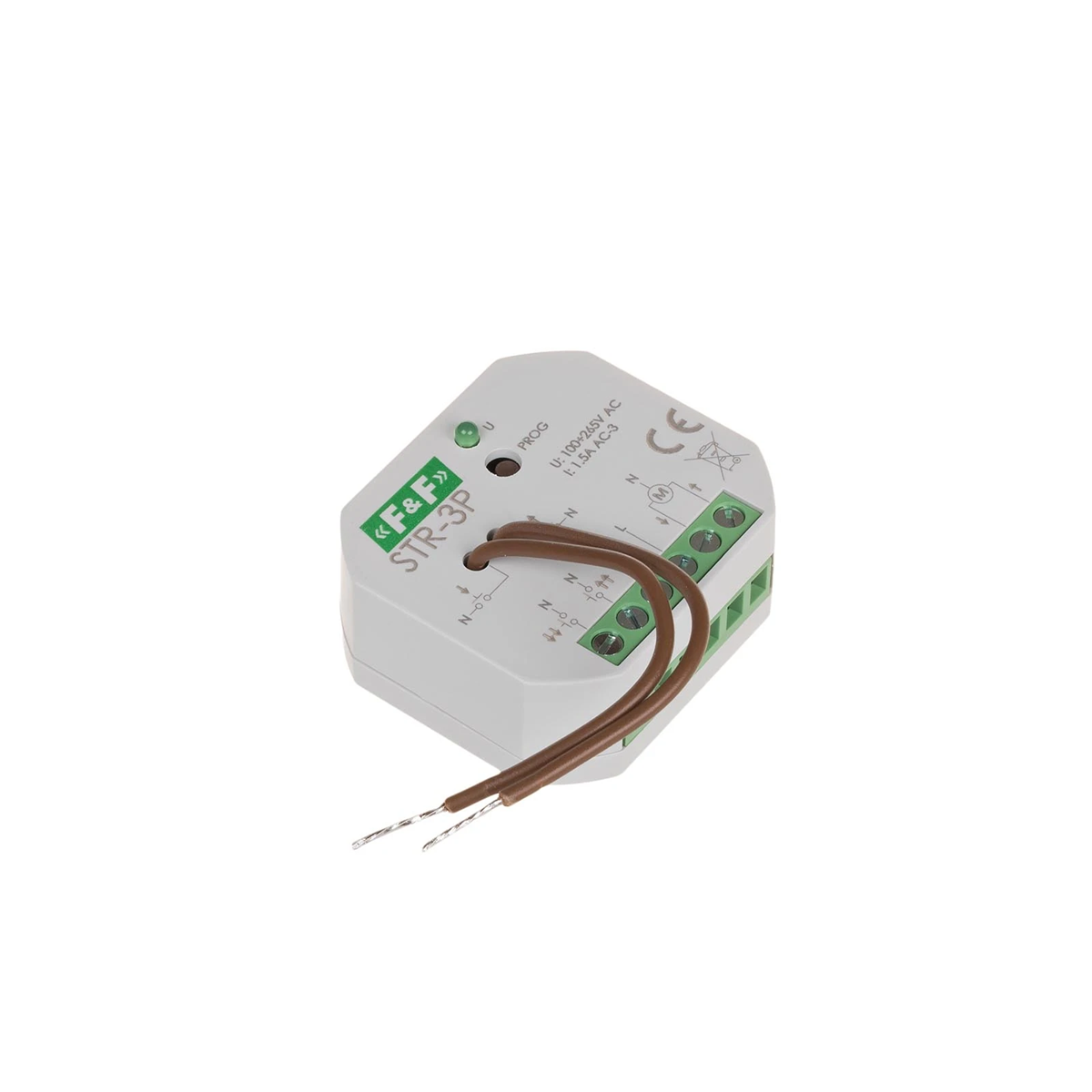

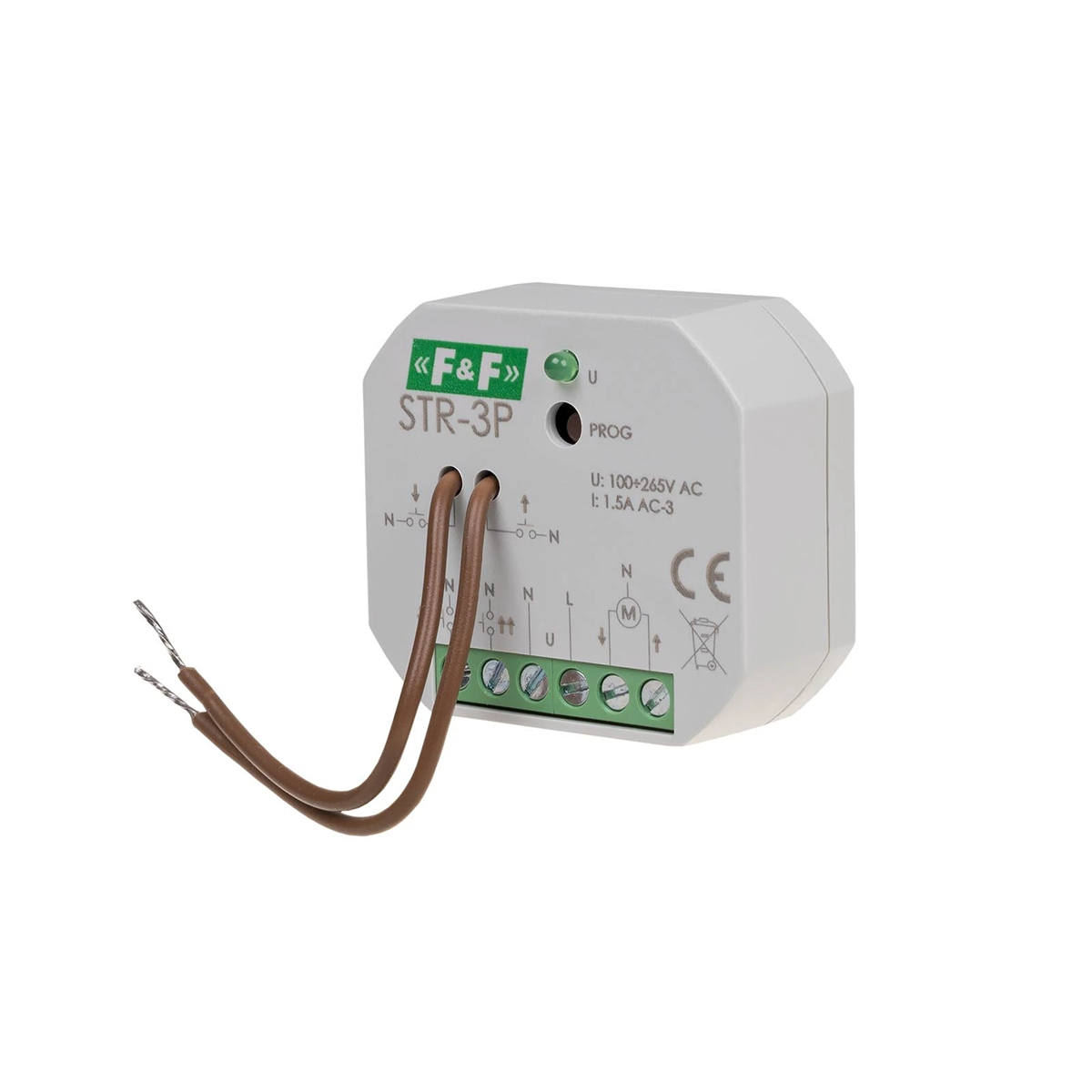

Universal roller shutter controller 230V STR-3P
local index:
APL002FIFQ
Catalog No:
STR-3P
EAN code:
5908312597834
Click on the photo to enlarge
Manufacturer:
F&F
Maximum power [W]:
320
Rated voltage [V]:
230
Control:
N neutral line level
See full description
Price:
26,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 43 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Files to download
Product description
The STR-3P controller is designed to control roller shutters (up-down) or other objects (e.g. gates) driven by a single-phase AC electric motor by means of momentary switches (e.g. bell switches).
Technical data
Maximum power [W]
320
Control
N neutral line level
Signaling
LED green
Power [V]
100/265
Package width [mm]
42
Central control connection
2x DY 1mm2
Power consumption in operating mode [W]
<0.6
PKWIU
27.12.24.0
Rated voltage [V]
230
Level of security
IP20
Working temperature [°C]
-15-50
Package height [mm]
48
Package weight [kg]
0.2
Switching time - programmable
1s-15min
Standby power consumption [W]
<0.15
Other technical data
Assembly arrangement
Basic element
With brightness sensor connection
No
Suitable for rain sensor
Yes
With Astro program
No
With memory function
Yes
Switch-off protection
No
Material
Plastic
Halogen free
Yes
Transparent
No
Max. switching power
320 W
Frequency
50 ... 50 Hz
Integrated timer
No
Suitable for wind sensor
Yes
With glass breaking detector connection
No
Substation input
Yes
Random generator
Yes
Mounting method
Flush-mounted
Material quality
Thermoplastic
Surface finishing
Matt
Suitable for degree of protection (IP)
IP20
Nominal voltage
230 V
Type of fastening
Screw mounting
Bulk packaging
A kind of package
Sztuka
Karton
Quantity
1 pcs.
12 pcs.
Weight (kg)
0,060
-
Width (m)
0,031
-
Length (m)
0,095
-
Depth (m)
0,070
-
Files to download
FF_RoHS_2022.pdf
UE_FF020_18_STR_dek_zgod_CE.pdf
FF_RoHS_2022.pdf
UE_FF020_18_STR_dek_zgod_CE.pdf
