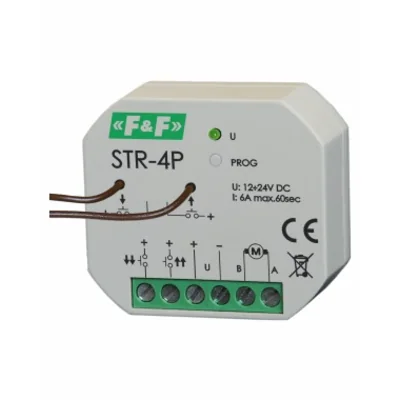

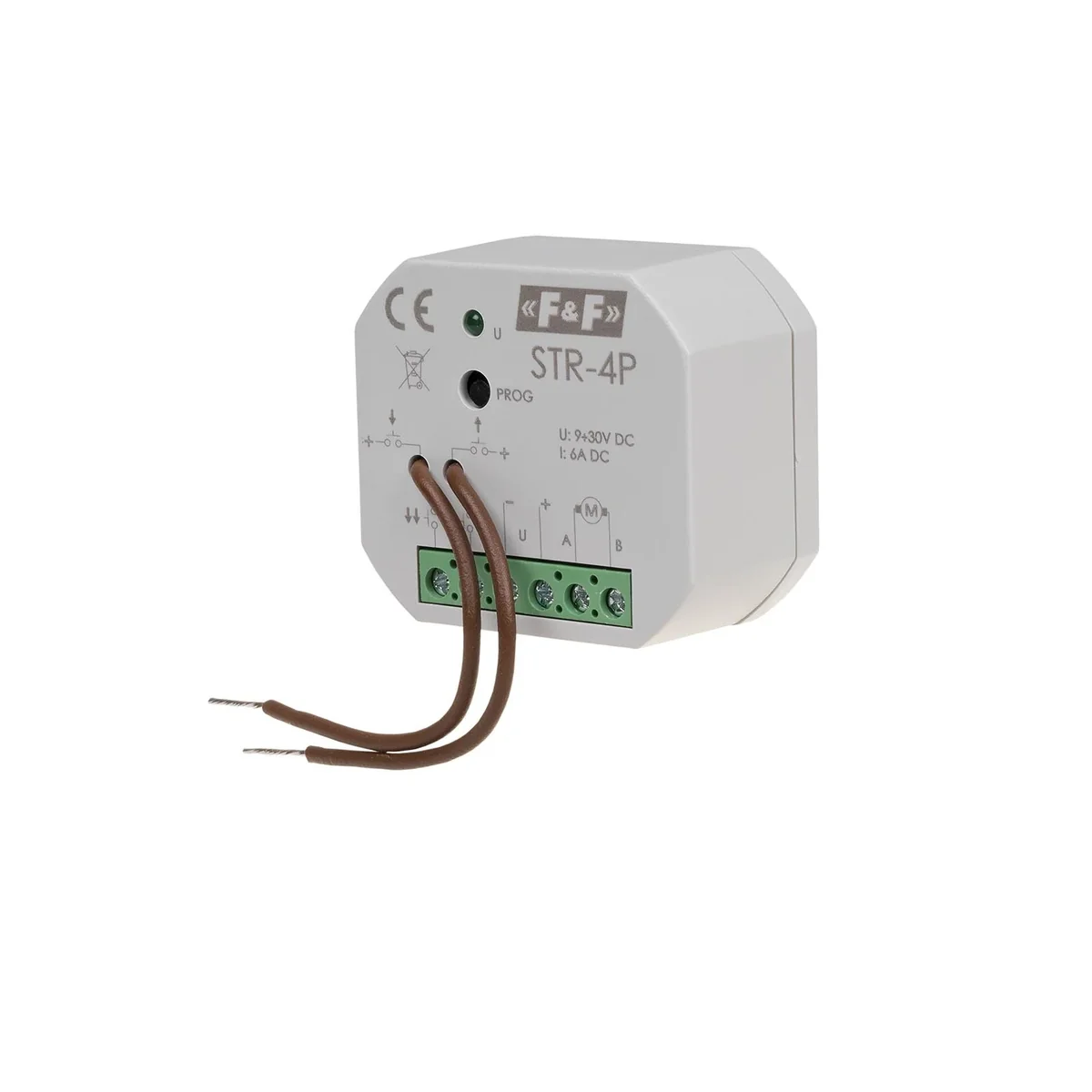

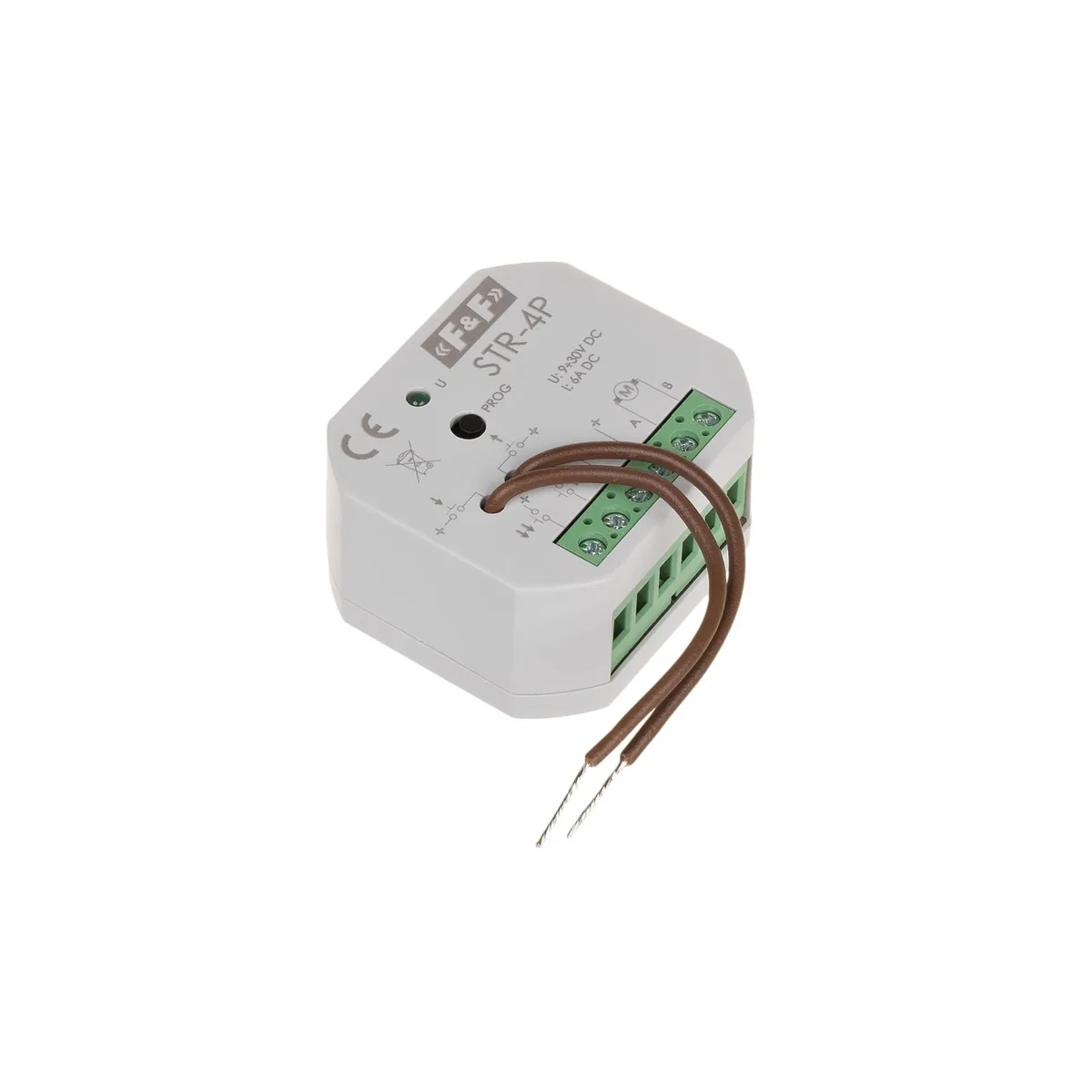

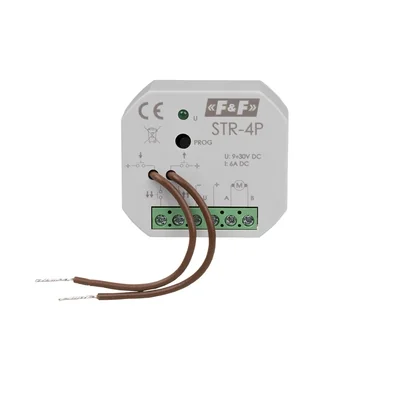

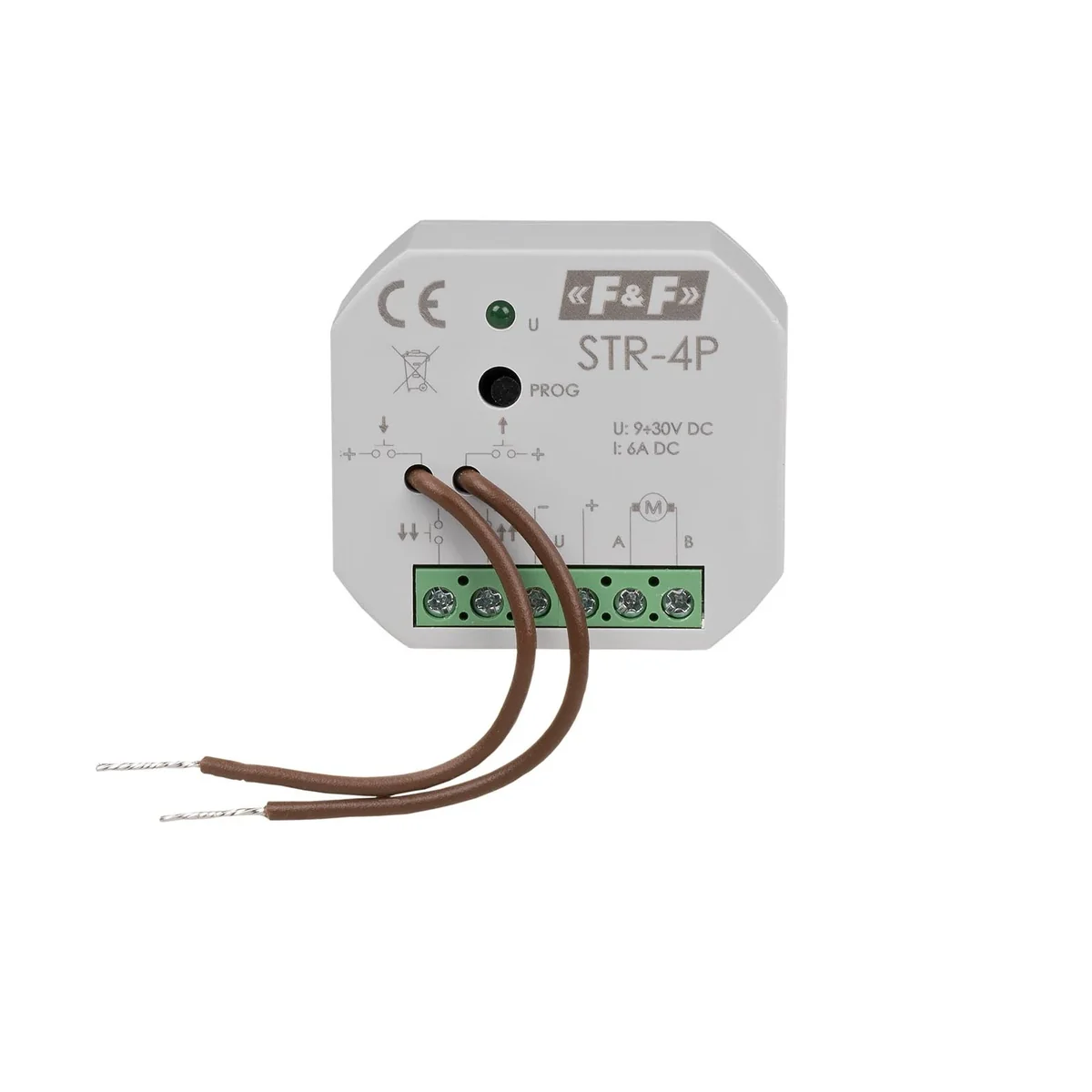

Universal roller shutter controller 12/24V DC STR-4P

local index:
API111FIFQ
Catalog No:
STR-4P
EAN code:
5908312597988
Manufacturer: F&F
Maximum current [A]: 6
Level of security: IP20
Signaling: LED green
Price:
30,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The STR-4P controller is designed to control roller shutters (up-down) or other objects (e.g. gates) driven by a 12V or 24V DC electric motor by means of momentary switches (e.g. bell switches).

Technical data

  • Maximum current [A]
    6
  • Signaling
    LED green
  • Power [V]
    42362
  • Package width [mm]
    42
  • Central control connection
    2x DY 1mm2
  • Power consumption in operating mode [W]
    <0.6
  • PKWIU
    27.12.24.0
  • Level of security
    IP20
  • Working temperature [°C]
    -15/50
  • Package height [mm]
    48
  • Package weight [kg]
    0.2
  • Switching time - programmable
    1s-2mins
  • Standby power consumption [W]
    <0.05

Other technical data

  • Assembly arrangement
    Basic element
  • With brightness sensor connection
    No
  • Suitable for rain sensor
    Yes
  • With Astro program
    No
  • With memory function
    Yes
  • Switch-off protection
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Transparent
    No
  • Max. switching power
    320 W
  • Type of fastening
    Screw mounting
  • Integrated timer
    No
  • Suitable for wind sensor
    Yes
  • With glass breaking detector connection
    No
  • Substation input
    Yes
  • Random generator
    Yes
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20
  • Nominal voltage
    24 V

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,081
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
