Two-way radio roller shutter controller, in-wall, 230V AC 5A 1.2W SPL10000004-WUN

Índice local:
API040ZAME
Número de catálogo:
SPL10000004-WUN
Código EAN:
5903669214588
Fabricante: ZAMEL
Frequency [Hz]: 50-60
Number of inputs: 2
Number of changeover contacts: 2 x NO
Precio:
233,81 zł
gross / uds.
(IVA incluido 23%)
5 082,83 zł gross/kg.
Accesible 79 uds.
Recogida en 1h
Entrega en 3h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

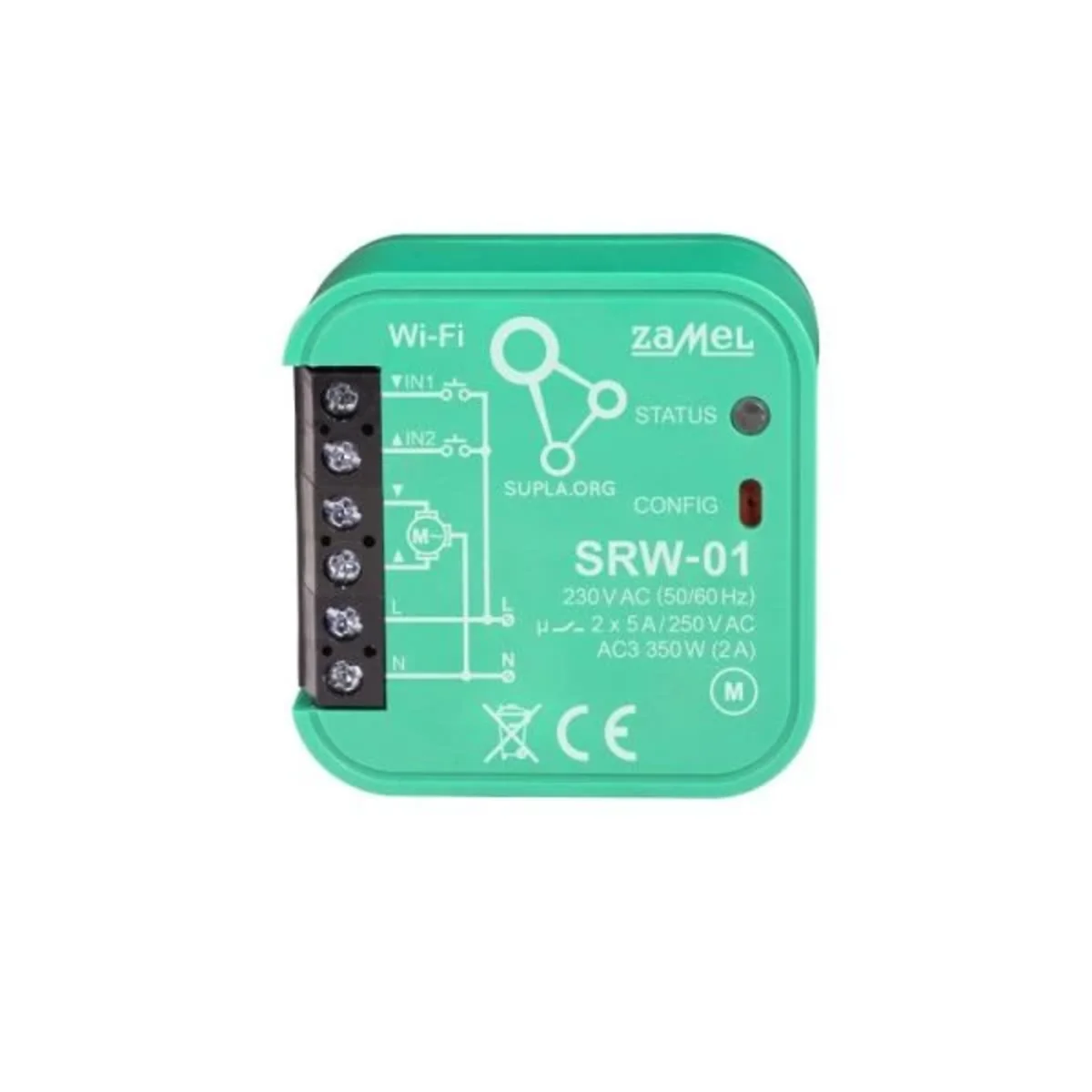

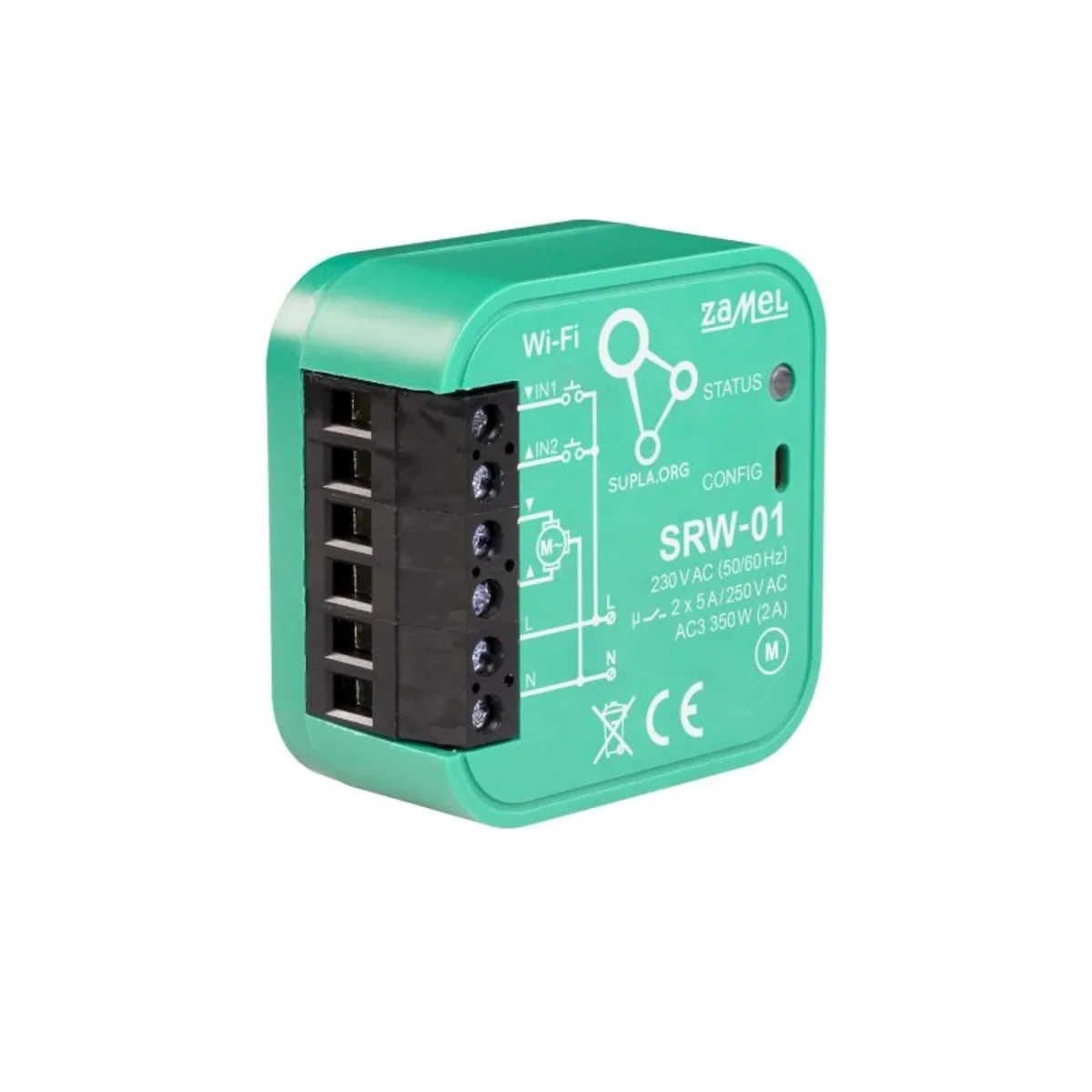

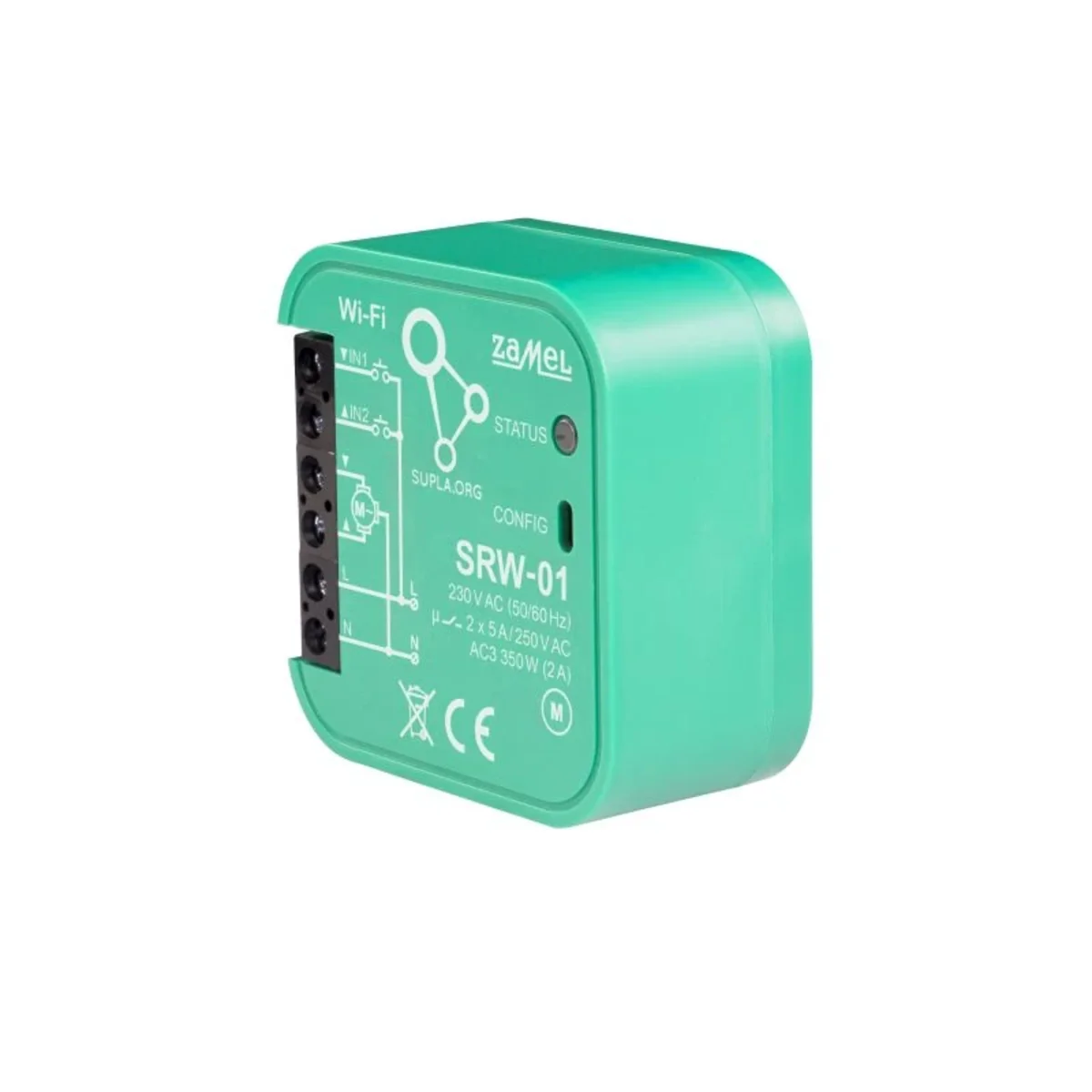

The SRW-01 roller shutter controller allows you to control roller shutters using roller shutter buttons. Thanks to the built-in Wi-Fi receiver, the device connects to the cloud and allows remote control of the roller shutters. Users can check the roller shutter's position and remotely close or open it. Schedules stored in the cloud allow for automatic control of the roller shutter at a specific time and on a selected day of the week.

Datos técnicos

  • Frequency [Hz]
    50-60
  • Number of changeover contacts
    2 x NO
  • Power consumption [W]
    1.2
  • Family
    SRW
  • Transmission
    WIFI
  • Dimensions
    47.5 x 47.5 x 23 mm
  • Minimum operating temperature [°C]
    -10
  • AC rated voltage [V]
    230/400
  • PKWIU
    26.30.11.0
  • Number of inputs
    2
  • Maximum operating temperature [°C]
    55
  • Rated current [A]
    5
  • Level of security
    IP20
  • Weight [g]
    46
  • Connection terminals
    6
  • Maximum conductor cross-section [mm²]
    2.5
  • Radio transmitter power [mW]
    <20

Detalles del fabricante

  • Fabricante
    ZAMEL Sp. z o.o.
  • Dirección
    43-200 Pszczyna Zielona 27 Polska
