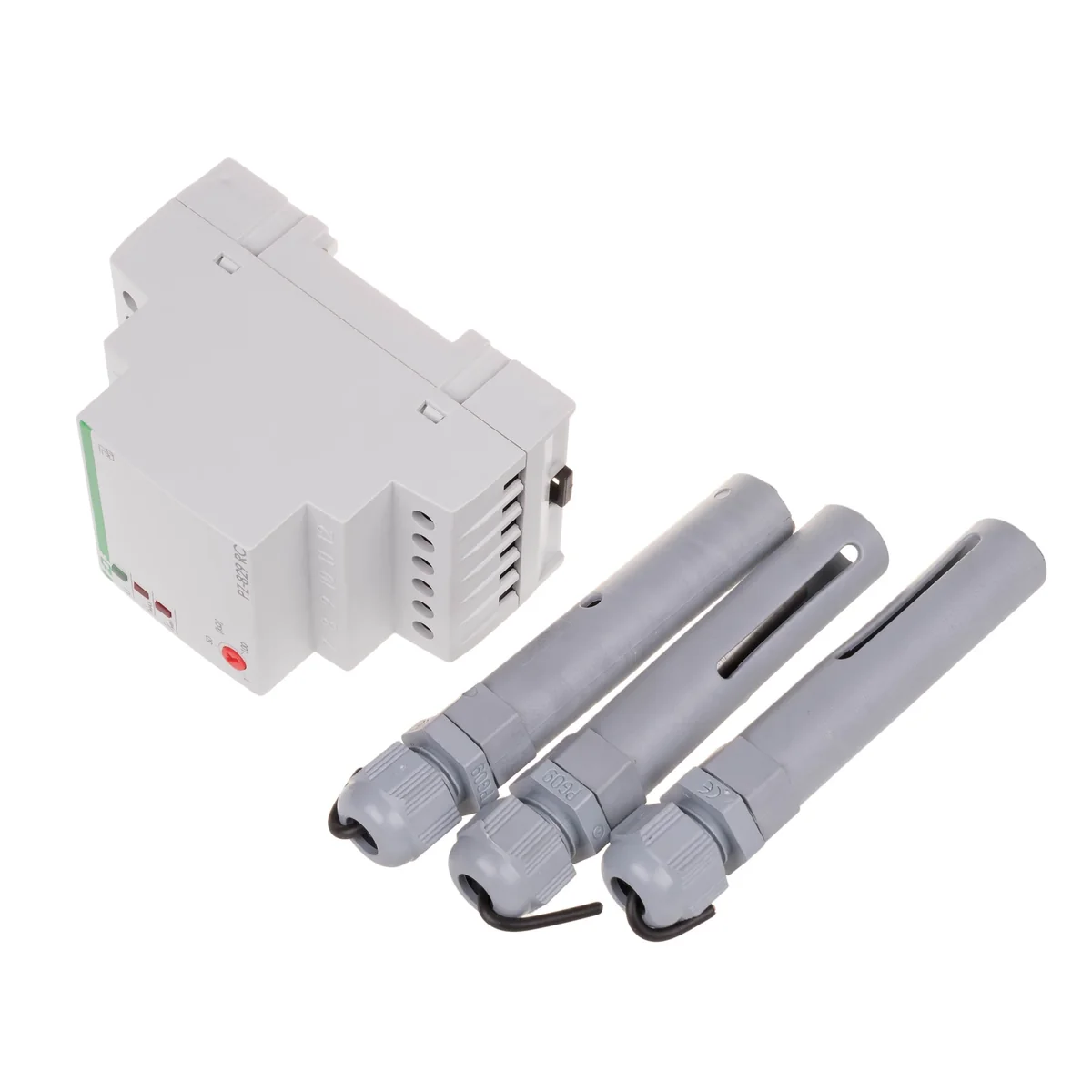

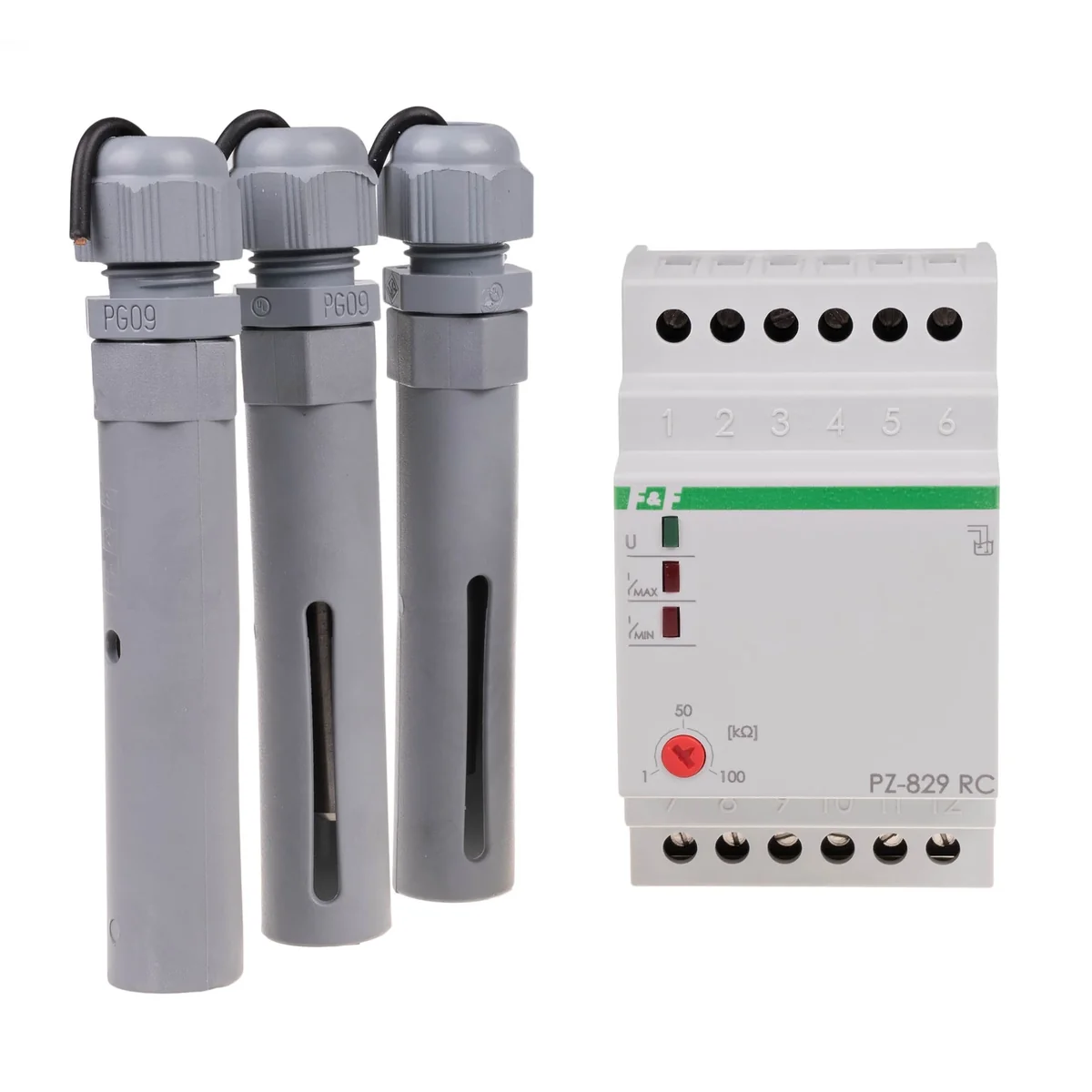

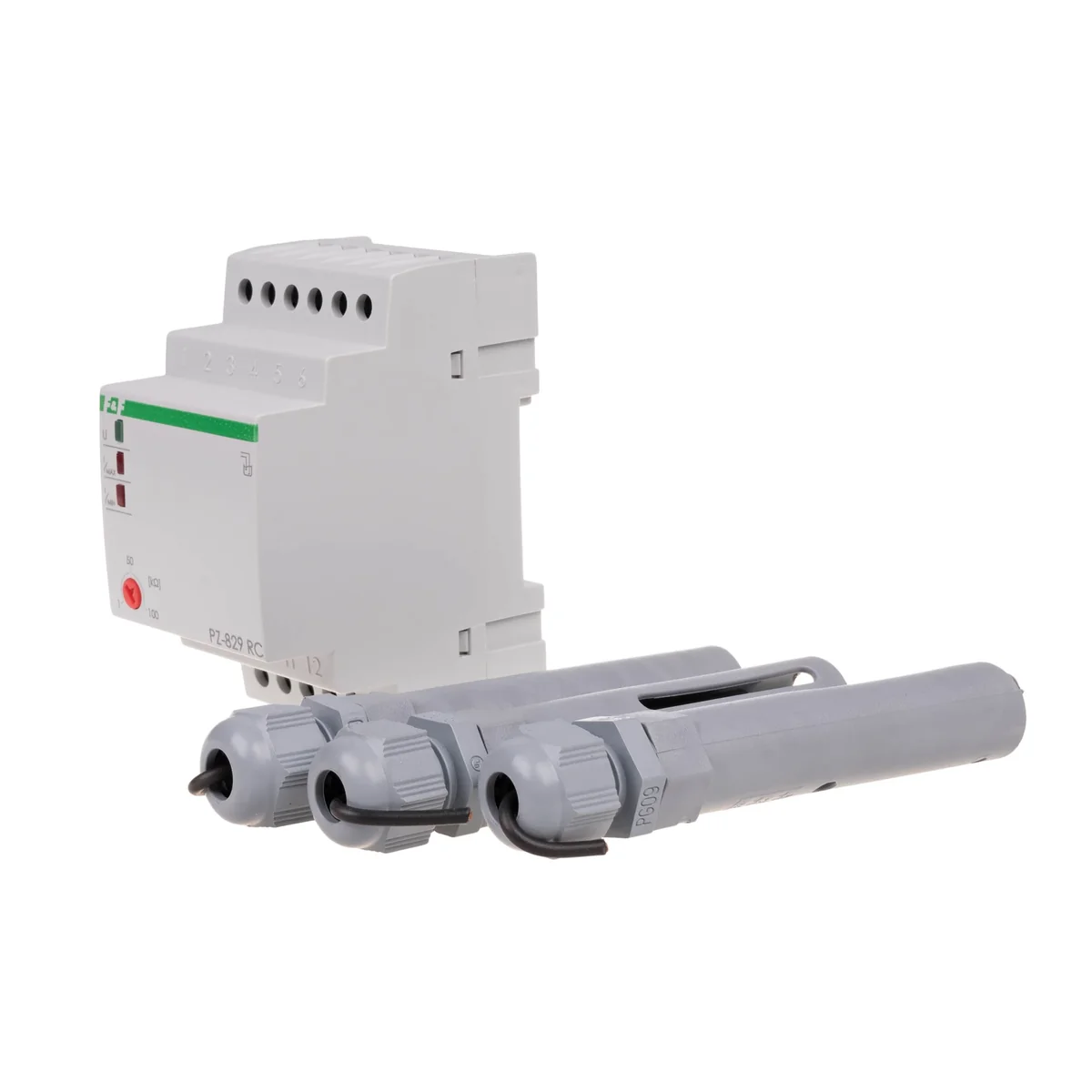

Two-state liquid level control relay with adjustable probe sensitivity PZ-829 RC PZ-829RC

local index:
APE023FIFQ
Catalog No:
PZ-829RC
EAN code:
5908312591504
Manufacturer: F&F
Length [mm]: 95
Power [W]: 1.1
Installation: On the TH-35 rail
Price:
66,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

PZ-829 relays are used to detect the presence of electrically conductive liquids at the levels of installed flood probes. They allow to maintain the minimum and maximum states of the controlled liquid within the range set by the user.

Technical data

  • Length [mm]
    95
  • Installation
    On the TH-35 rail
  • Rated voltage [V]
    230
  • connection
    2.5mm screw terminals
  • Dimensions
    3 modules (52.5mm)
  • Package width [mm]
    60
  • Sensitivity [kΩ]
    1-100
  • Power [W]
    1.1
  • Electrode voltage [V]
    6
  • load current [A]
    16
  • Diameter [mm]
    15
  • Package height [mm]
    150
  • Package weight [kg]
    0, 3
  • PKWIU
    26.51.70.0

Other technical data

  • Type of electric connection
    Screw connection
  • Number of inputs for electrodes
    3
  • Number of contacts as change-over contact
    2
  • Width
    35 mm
  • Depth
    60 mm
  • Voltage type for actuating
    AC
  • Response value sensitivity adjustable
    yes
  • Physical measurement principle
    Conductive
  • Height
    90 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,356
Width (m) 0,071
Length (m) 0,114
Depth (m) 0,070
